Removal and Installation

Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
Remove the front door trim panel. For additional information, refer to FRONT DOOR TRIM PANEL .

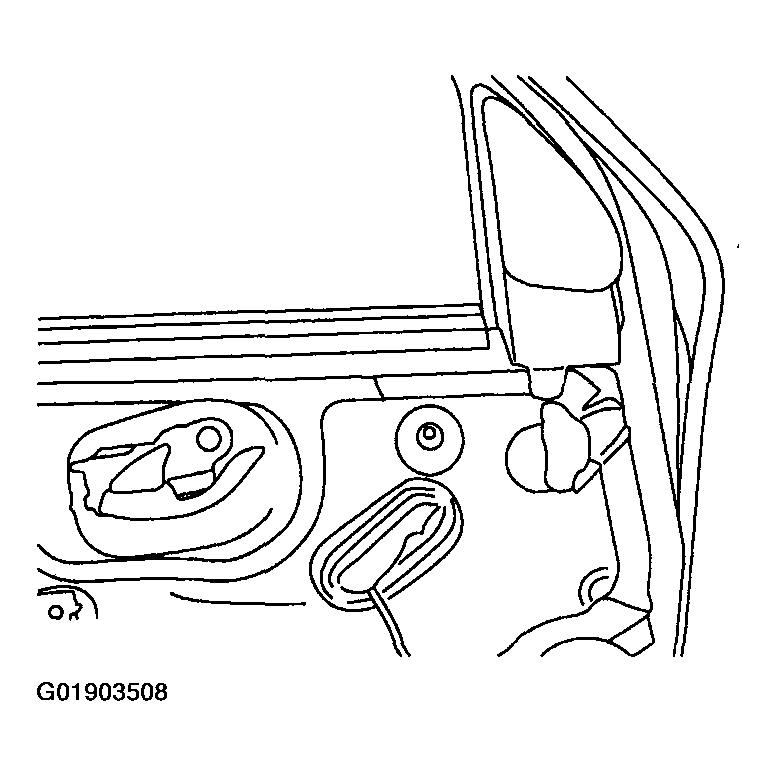

Fig 1: Removing Front Door Sail Panel
Courtesy of MAZDA MOTORS CORP.
Remove the front door sail panel.
1. If equipped, disconnect the speaker electrical connector.

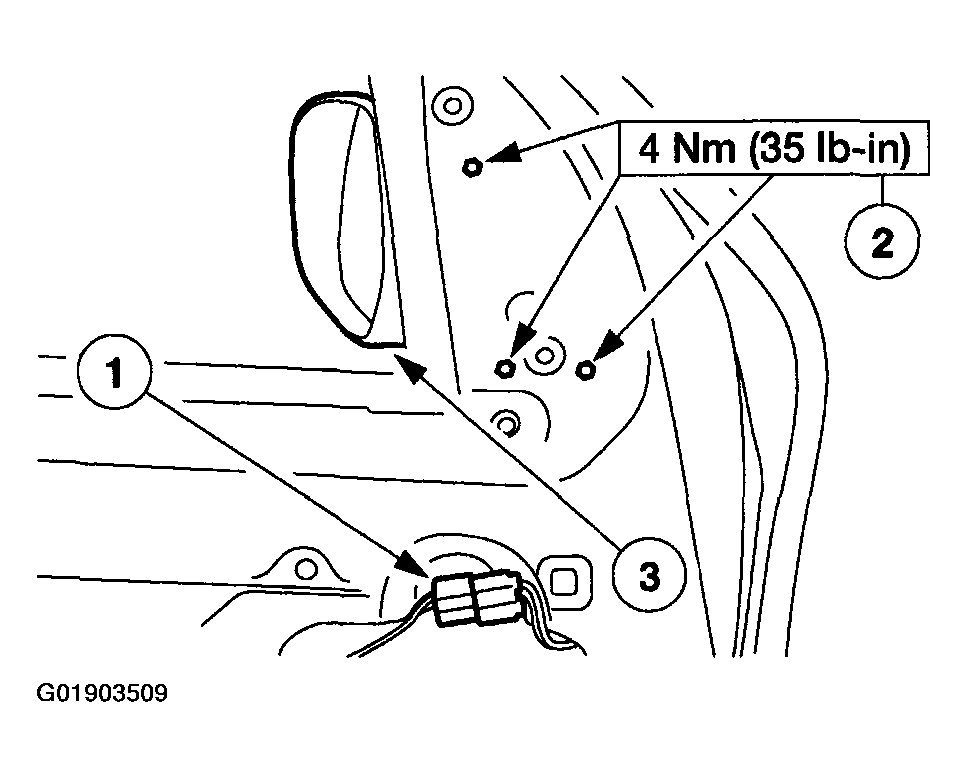

  Fig 2: Removing Exterior Rear View Mirror
  Courtesy of MAZDA MOTORS CORP.
Remove the exterior rear view mirror.
1. Disconnect the electrical connector.
2. Remove the screws.
3. Remove the exterior rear view mirror.
  1. Feed the power mirror wiring through the opening in the front door.
To install, reverse the removal procedure.
