Symptom Troubleshooting Chart - Power Seat: Notes

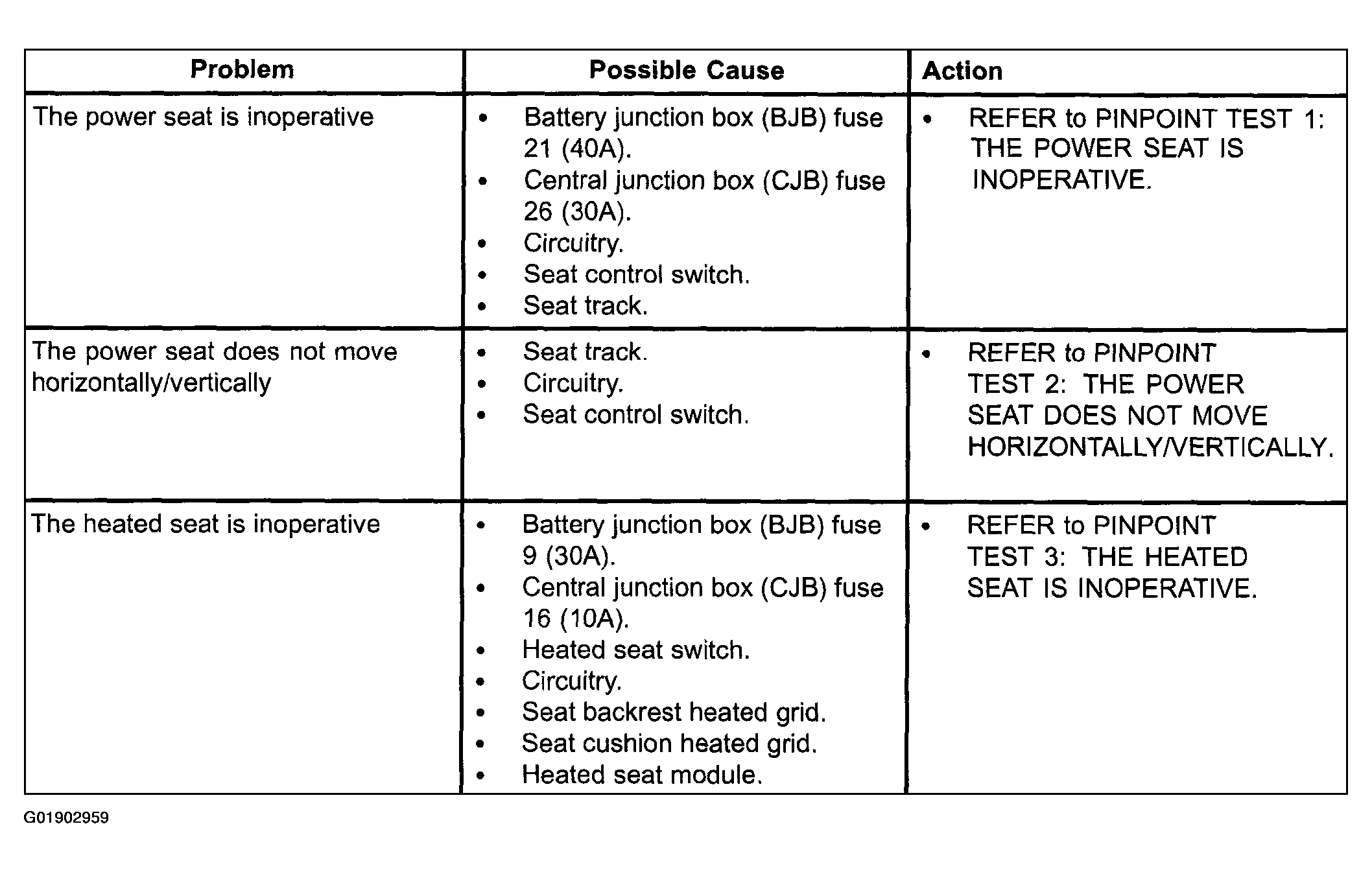

Fig 1: Symptom Troubleshooting Chart - Power Seat
G01902959Courtesy of MAZDA MOTORS CORP.
PINPOINT TEST

PINPOINT TEST DESCRIPTION
PINPOINT TEST 1  THE POWER SEAT IS INOPERATIVE
PINPOINT TEST 2  THE POWER SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY
PINPOINT TEST 3  THE HEATED SEAT IS INOPERATIVE
