Test 3: Intermittent

WARNING:

When performing any of the test steps, always be aware of hands, clothing or tools near cooling fans or hot surfaces.

NOTE:

PIDs selected from the PID/DATA MONITOR table will display commanded values only. Digital multimeter measurements will display actual values.

Fig 1: Intermittent Inspection Procedure (1 Of 10)

Courtesy of FORD MOTOR CO.

Fig 2: Intermittent Inspection Procedure (2 Of 10)

Courtesy of FORD MOTOR CO.

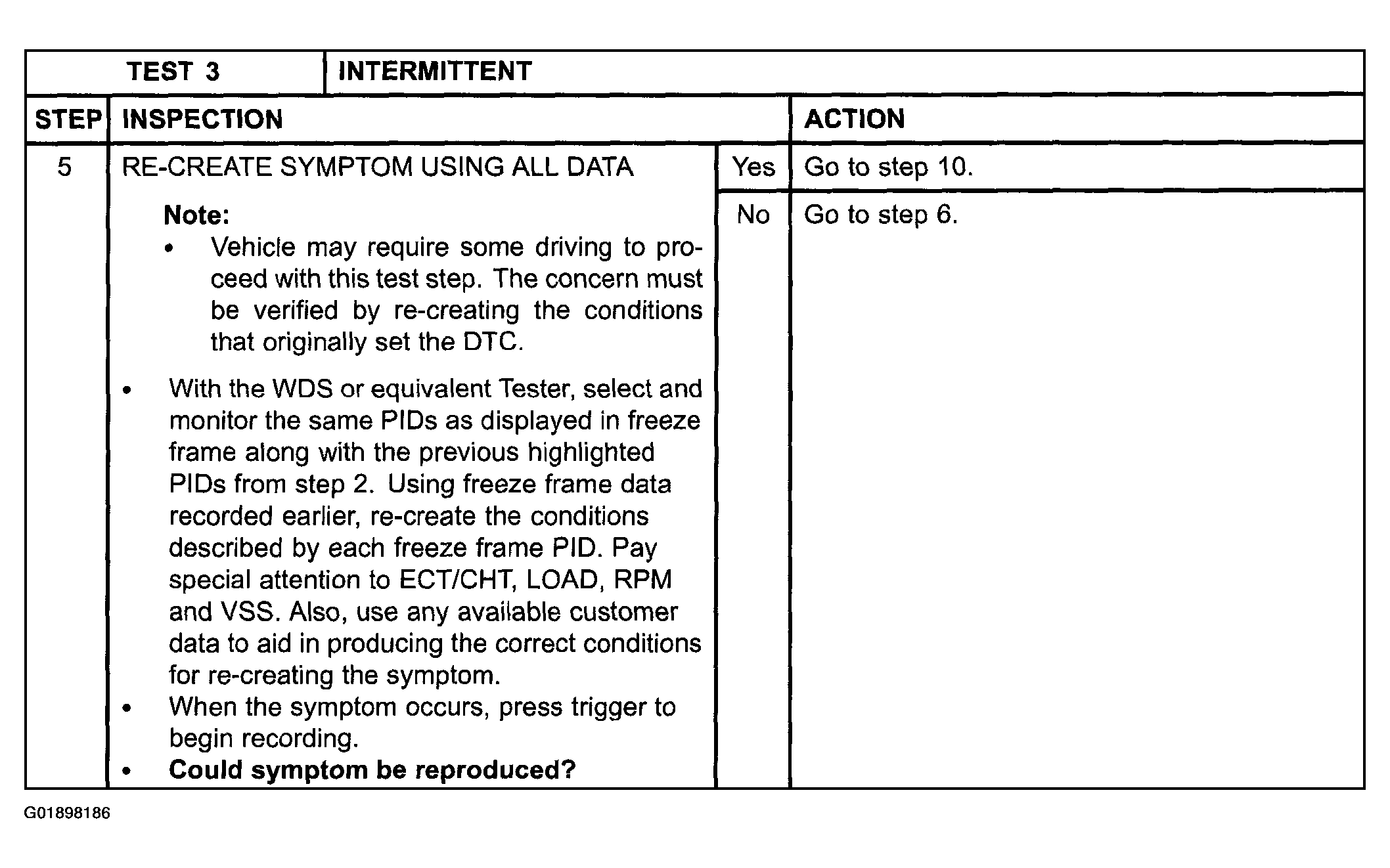

Fig 3: Intermittent Inspection Procedure (3 Of 10)

Courtesy of FORD MOTOR CO.

Fig 4: Intermittent Inspection Procedure (4 Of 10)

Courtesy of FORD MOTOR CO.

Fig 5: Intermittent Inspection Procedure (5 Of 10)

Courtesy of FORD MOTOR CO.

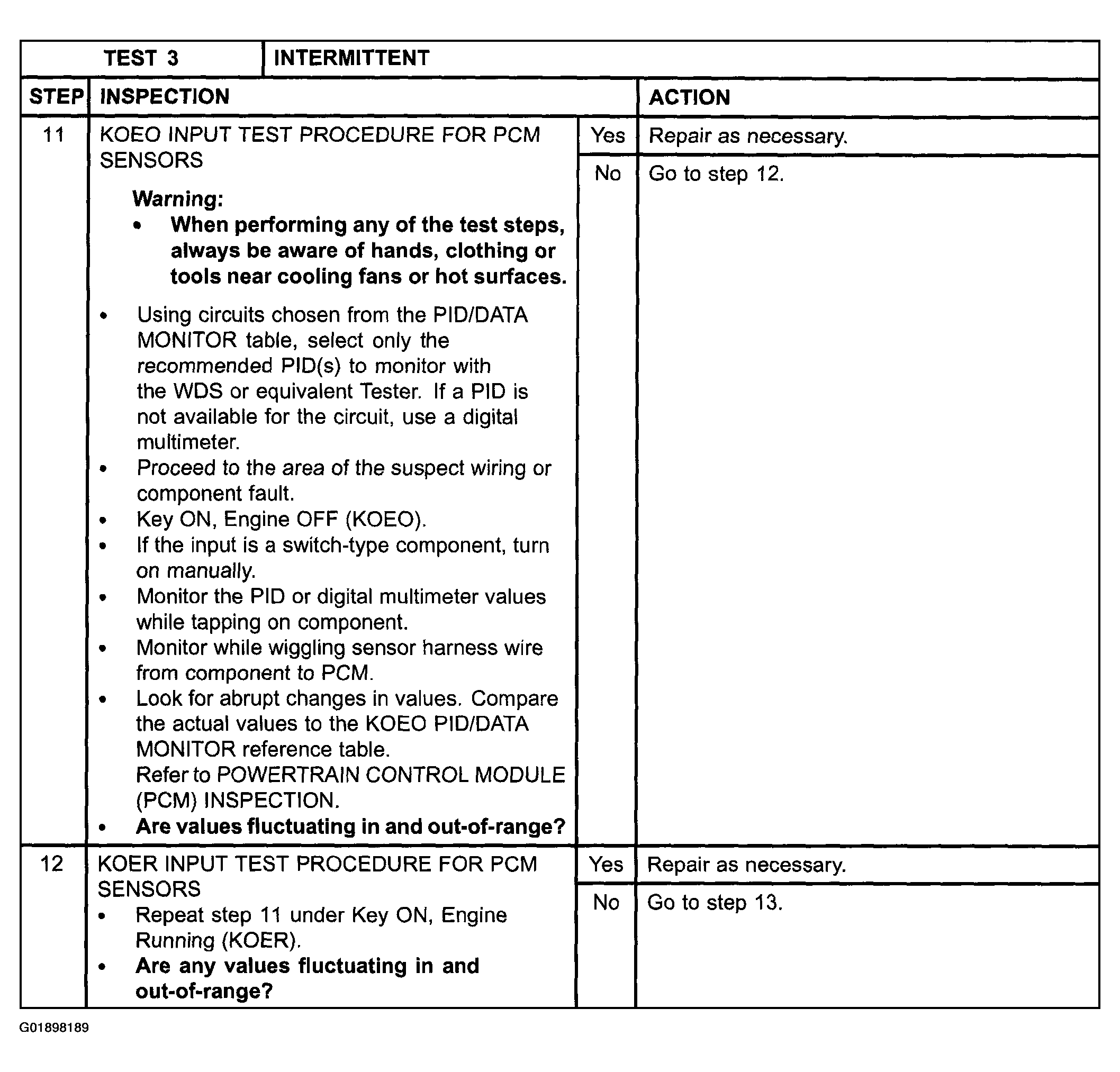

Fig 6: Intermittent Inspection Procedure (6 Of 10)

Courtesy of FORD MOTOR CO.

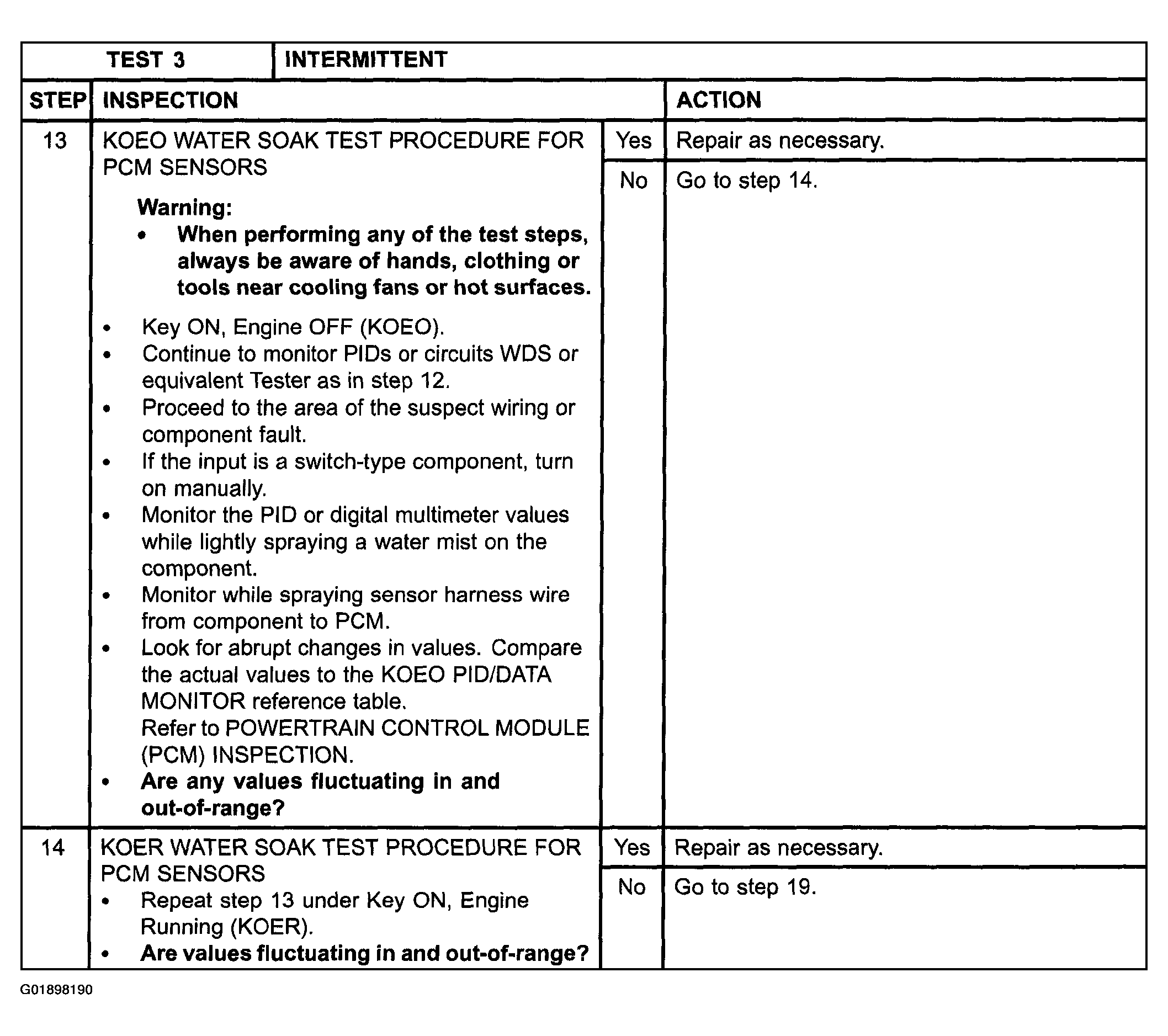

Fig 7: Intermittent Inspection Procedure (7 Of 10)

Courtesy of FORD MOTOR CO.

Fig 8: Intermittent Inspection Procedure (8 Of 10)

Courtesy of FORD MOTOR CO.

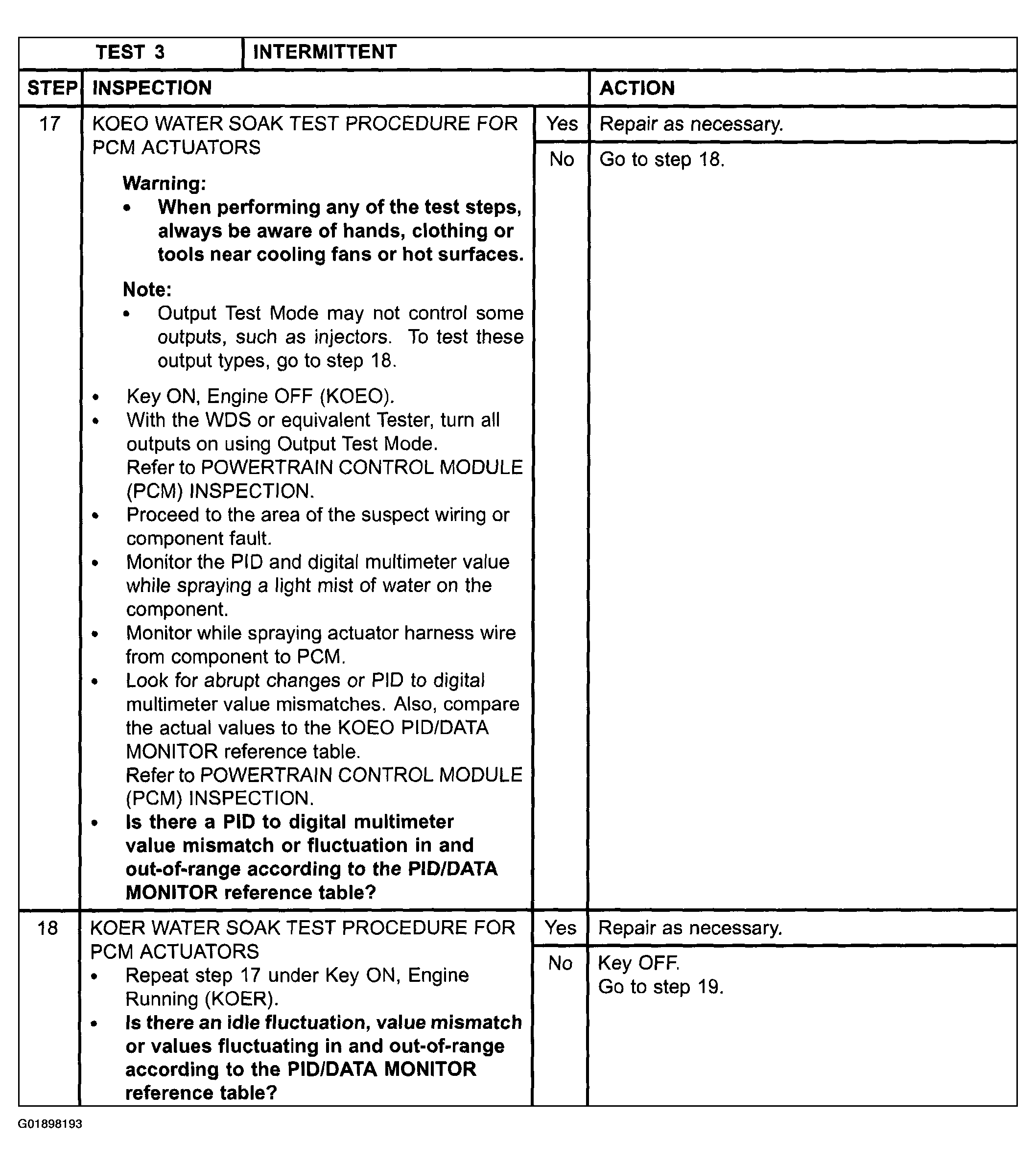

Fig 9: Intermittent Inspection Procedure (9 Of 10)

Courtesy of FORD MOTOR CO.

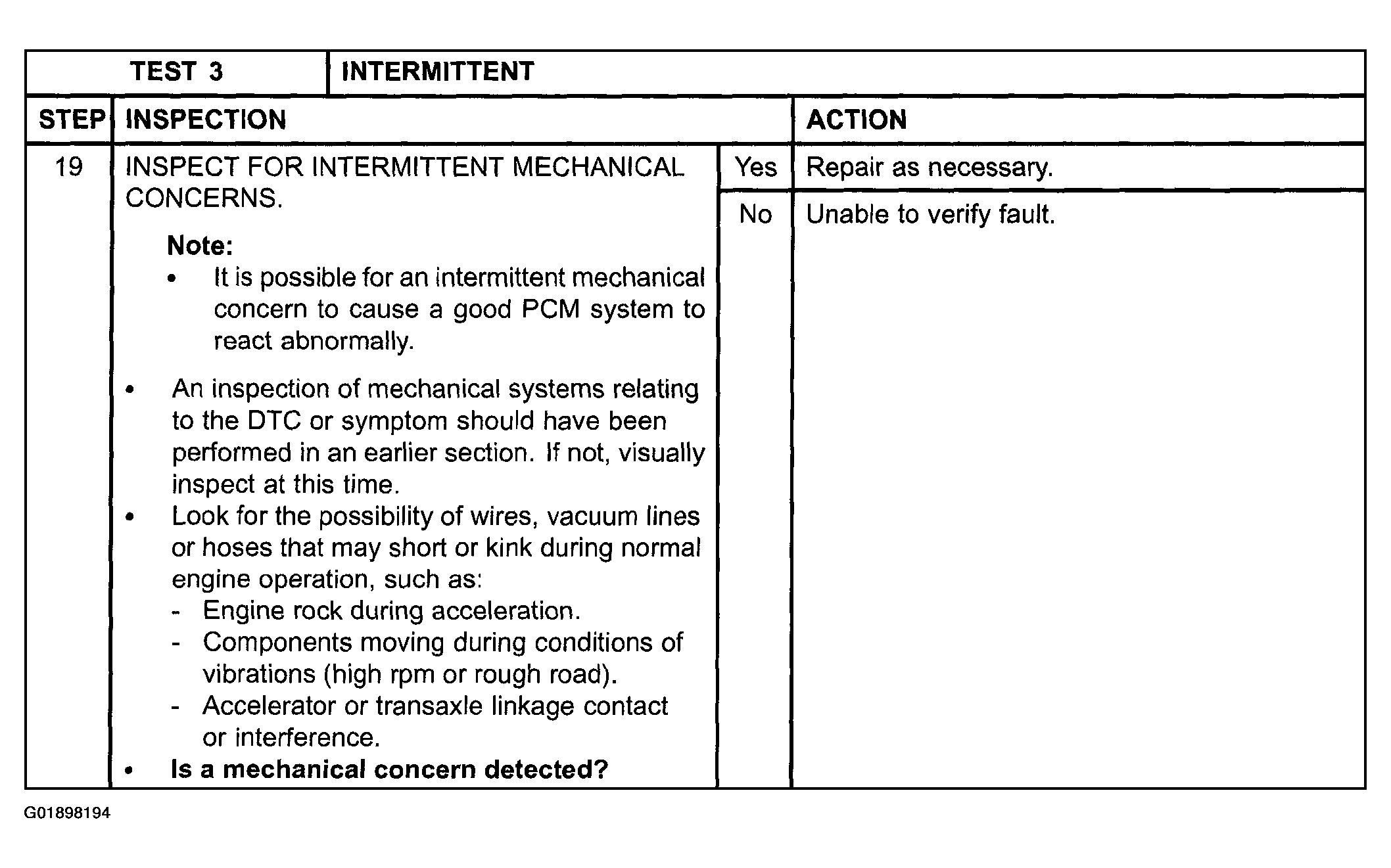

Fig 10: Intermittent Inspection Procedure (10 Of 10)

Courtesy of FORD MOTOR CO.
