Gear Ratios

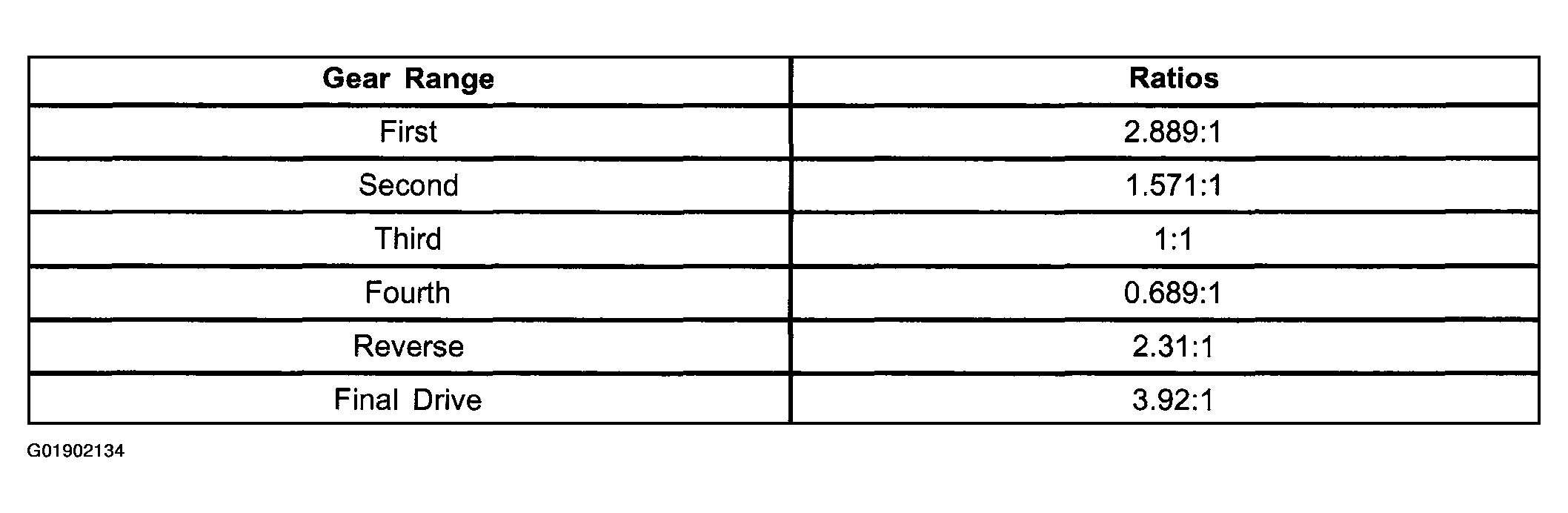

Fig 1: Gear Ratios Specification
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
