1ST Gear, 1ST Synchronizer Ring, and 1ST/2ND Clutch Hub Component Assembly Note

1st Gear, 1st Synchronizer Ring, and 1st/2nd Clutch Hub Component Assembly Note





Note: The size of the 1st, 2nd, 3rd, and 4th synchronizer rings are the same.

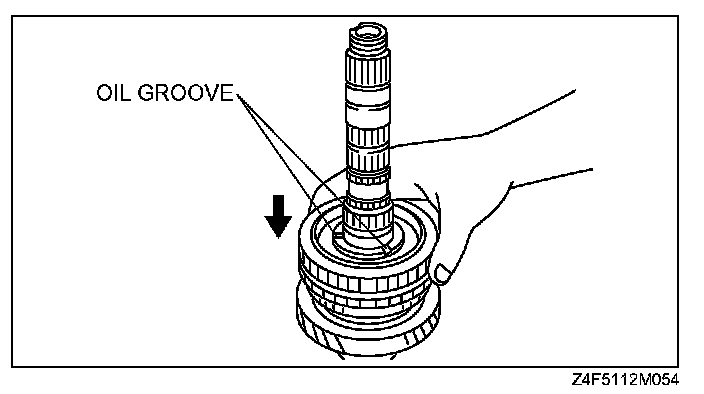

1. Assemble the 1st gear, 1st synchronizer ring, inner cone, double cone and 1st/2nd clutch hub component, as shown in the figure.





2. Press the 1st/2nd clutch hub component on using the SST.
