Short circuit

If there is no continuity, there is a short circuit. Repair or replace the wiring harness.
Front and middle
- HO2S terminal C and body GND
- HO2S terminal D and power supply
- HO2S terminal D and body GND

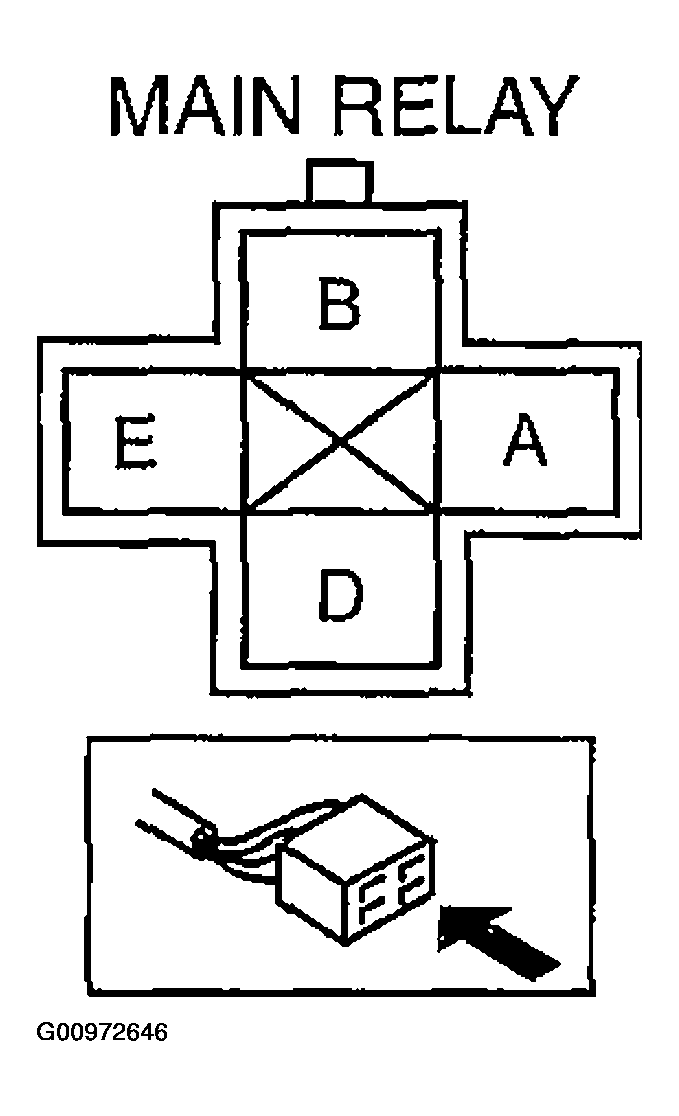

Fig 1: Identifying Main Relay Connector Terminals
Courtesy of MAZDA MOTORS CORP.
