DTC P2119: Throttle Actuator Control Throttle Body Range/Performance Problem
>>
Diagnostic procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic procedure

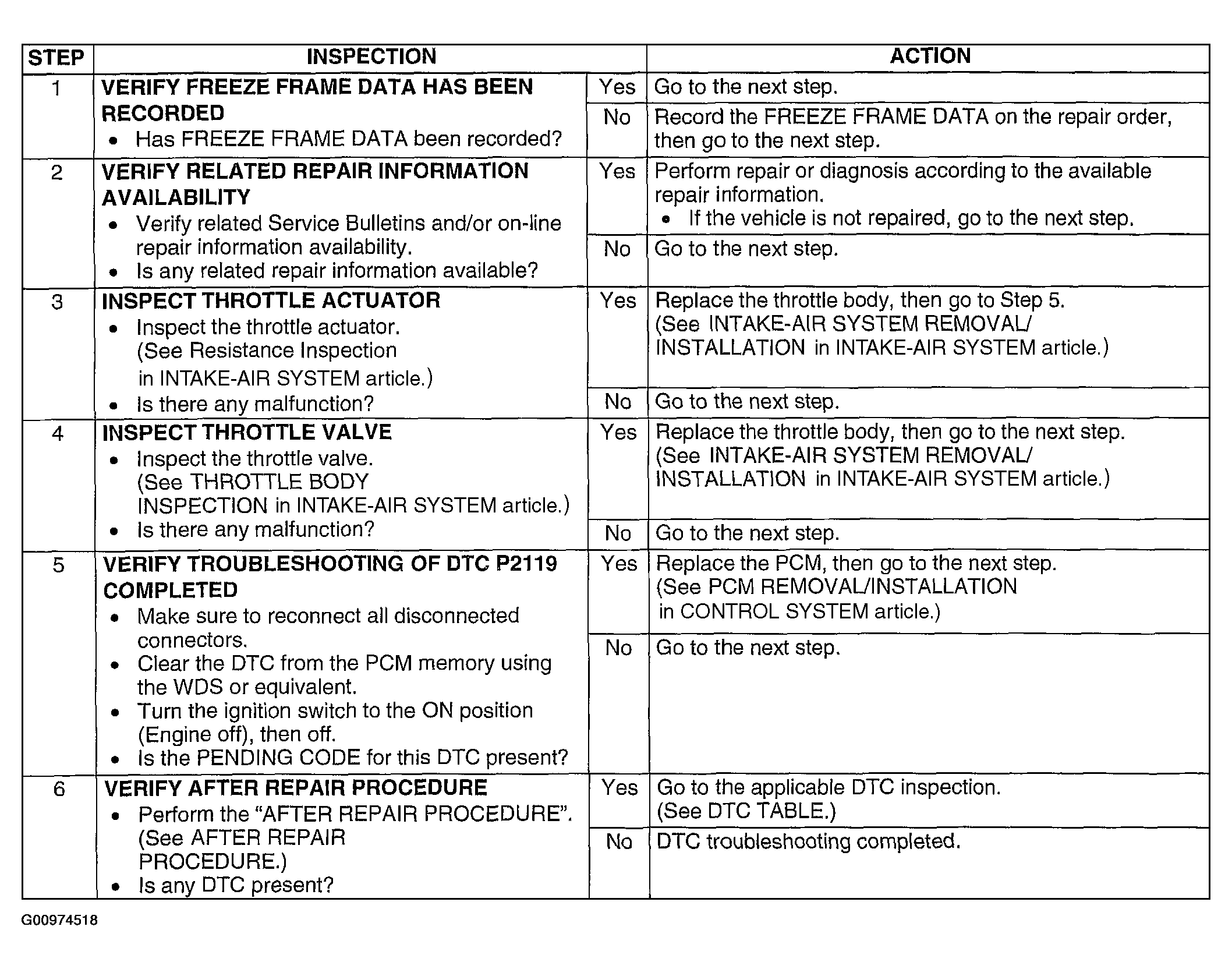

Fig 1: DTC P2119: Diagnostic Procedure Chart (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
