Mazda
>>
2004
>>
3 i, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System
>>
Heated Oxygen Sensor (Ho2S) Removal/Installation
>>
California emission regulation applicable model
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
California emission regulation applicable model

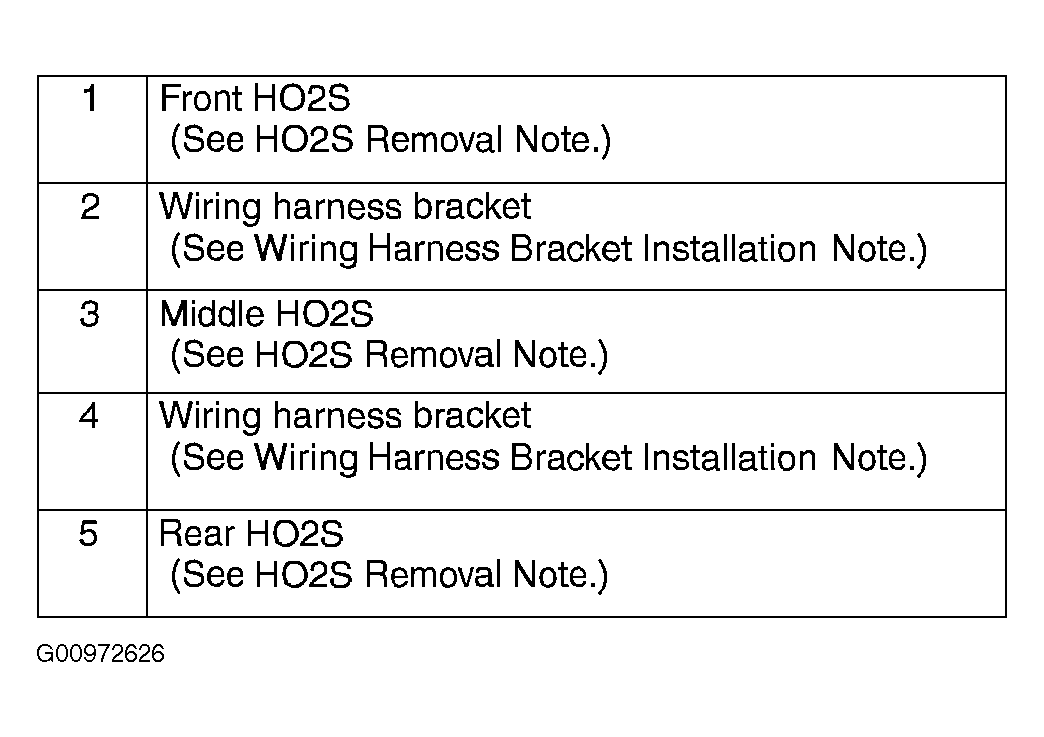

Fig 1: Heated Oxygen Sensor Removal/Installation Table-California Emission Regulation Applicable Model
Courtesy of MAZDA MOTORS CORP.

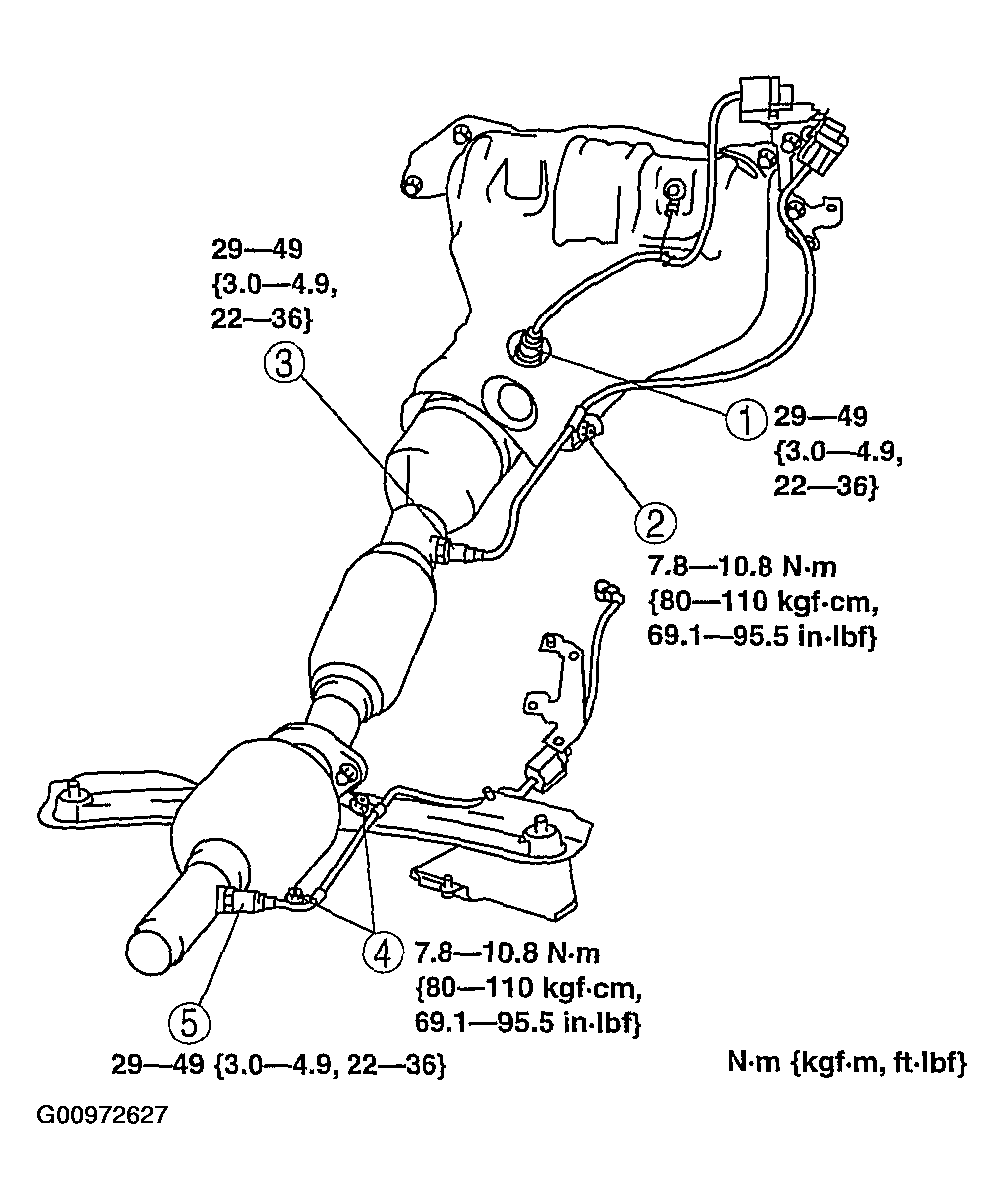

Fig 2: Heated Oxygen Sensor-California Emission Regulation Applicable Model With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
