DTC P0564: Cruise Control Switch Circuit Malfunction
>>
Diagnostic procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic procedure

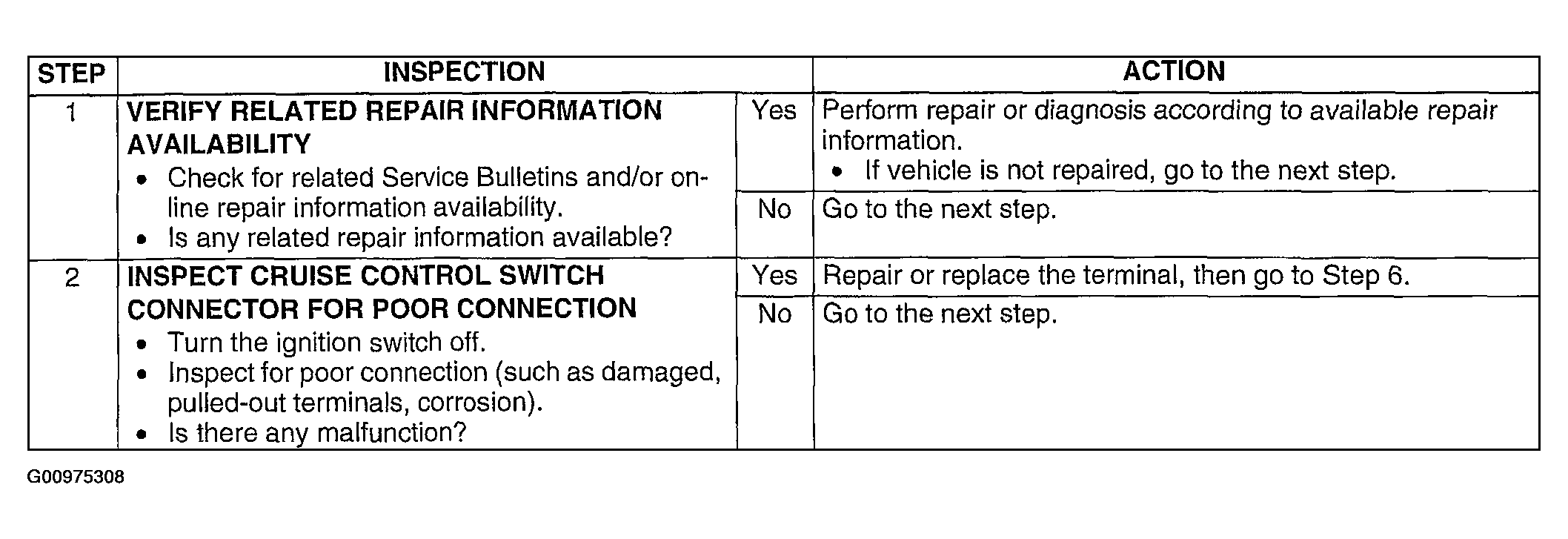

Fig 1: DTC P0564: Diagnostic Procedure Chart (Steps 1 & 2)
Courtesy of MAZDA MOTORS CORP.

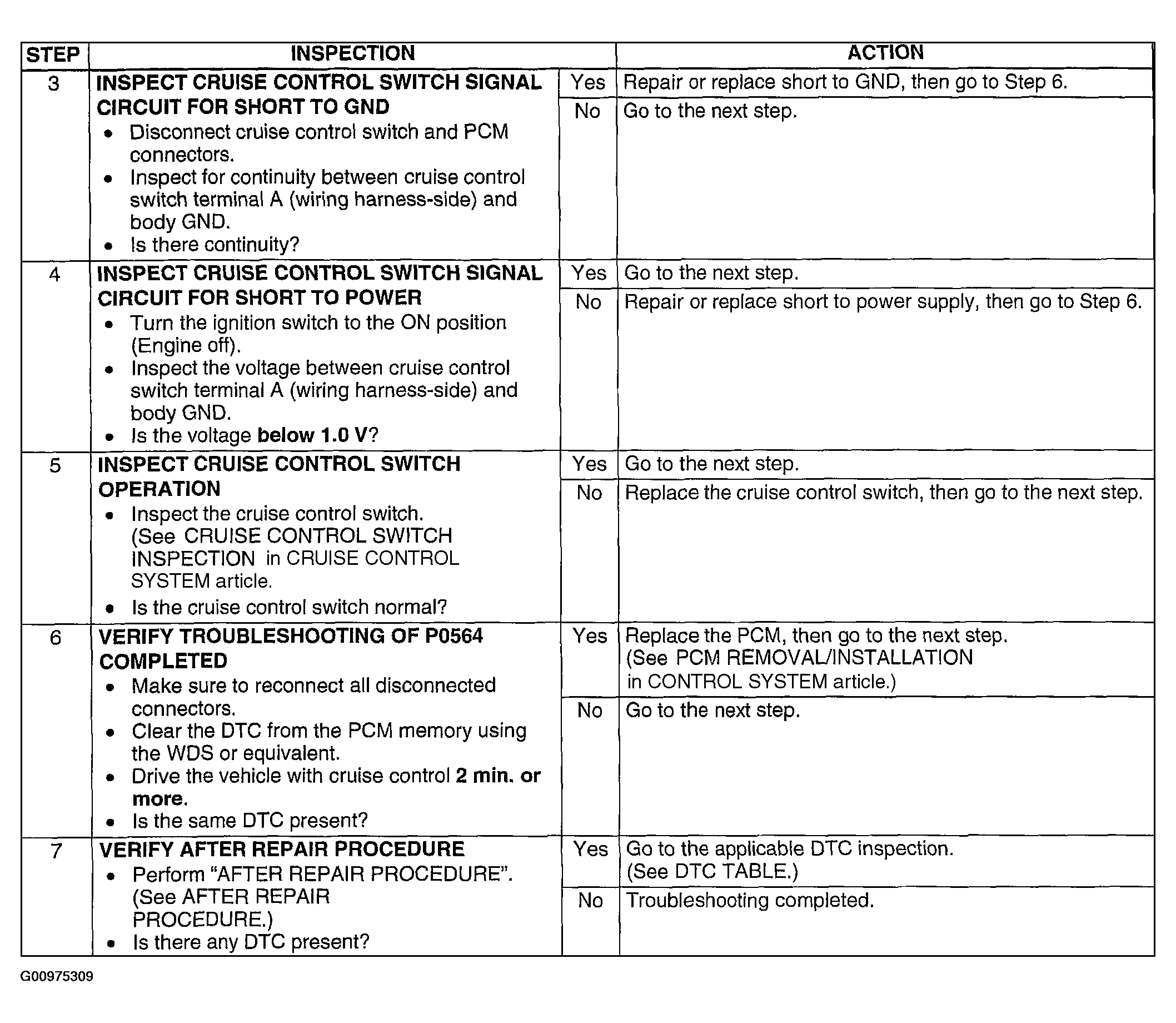

Fig 2: DTC P0564: Diagnostic Procedure Chart (Steps 3-7)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
