Diagnostic Index

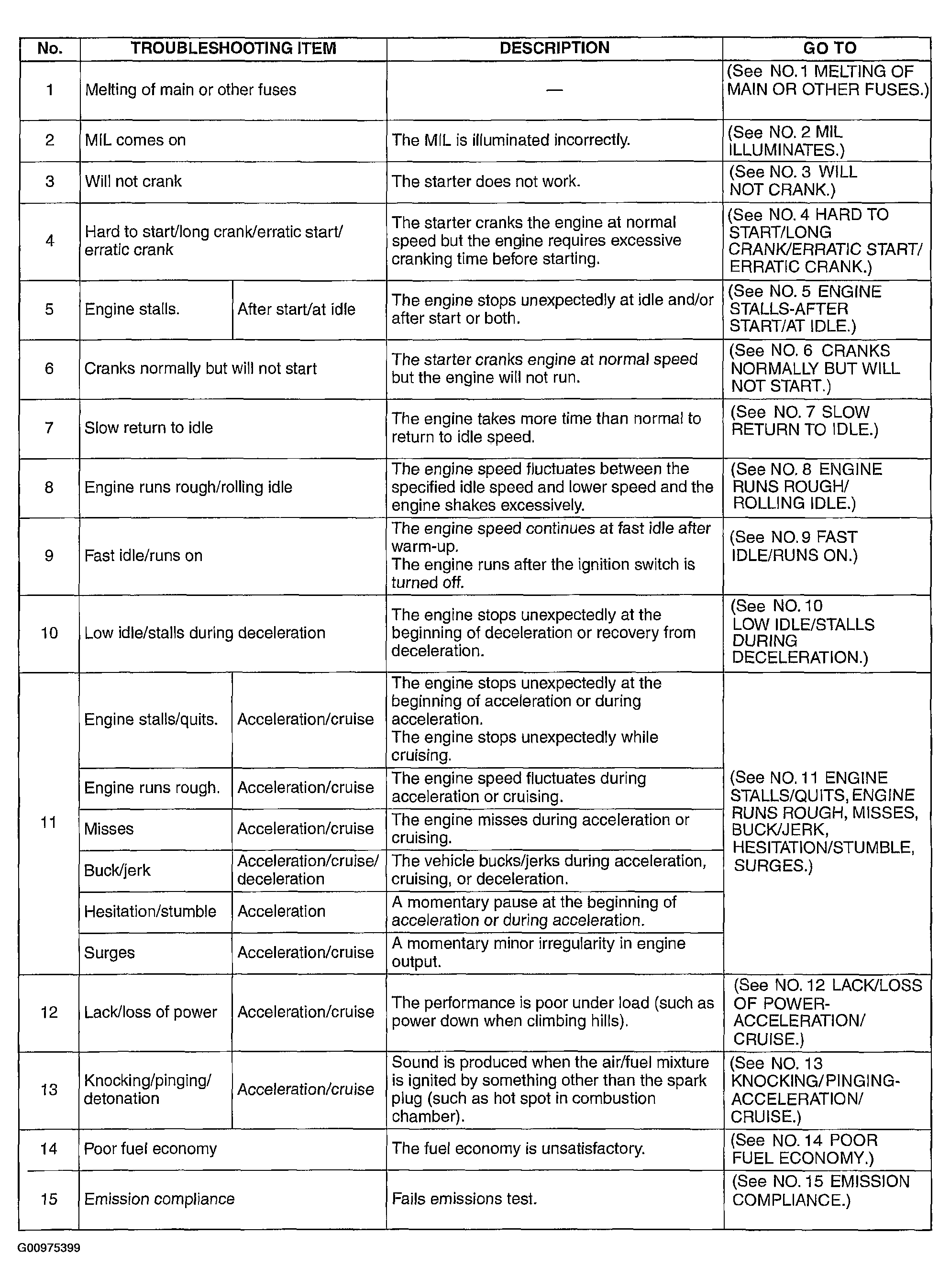

Fig 1: Engine Symptom Troubleshooting - Diagnostic Index (1-15)
G00975399Courtesy of MAZDA MOTORS CORP.

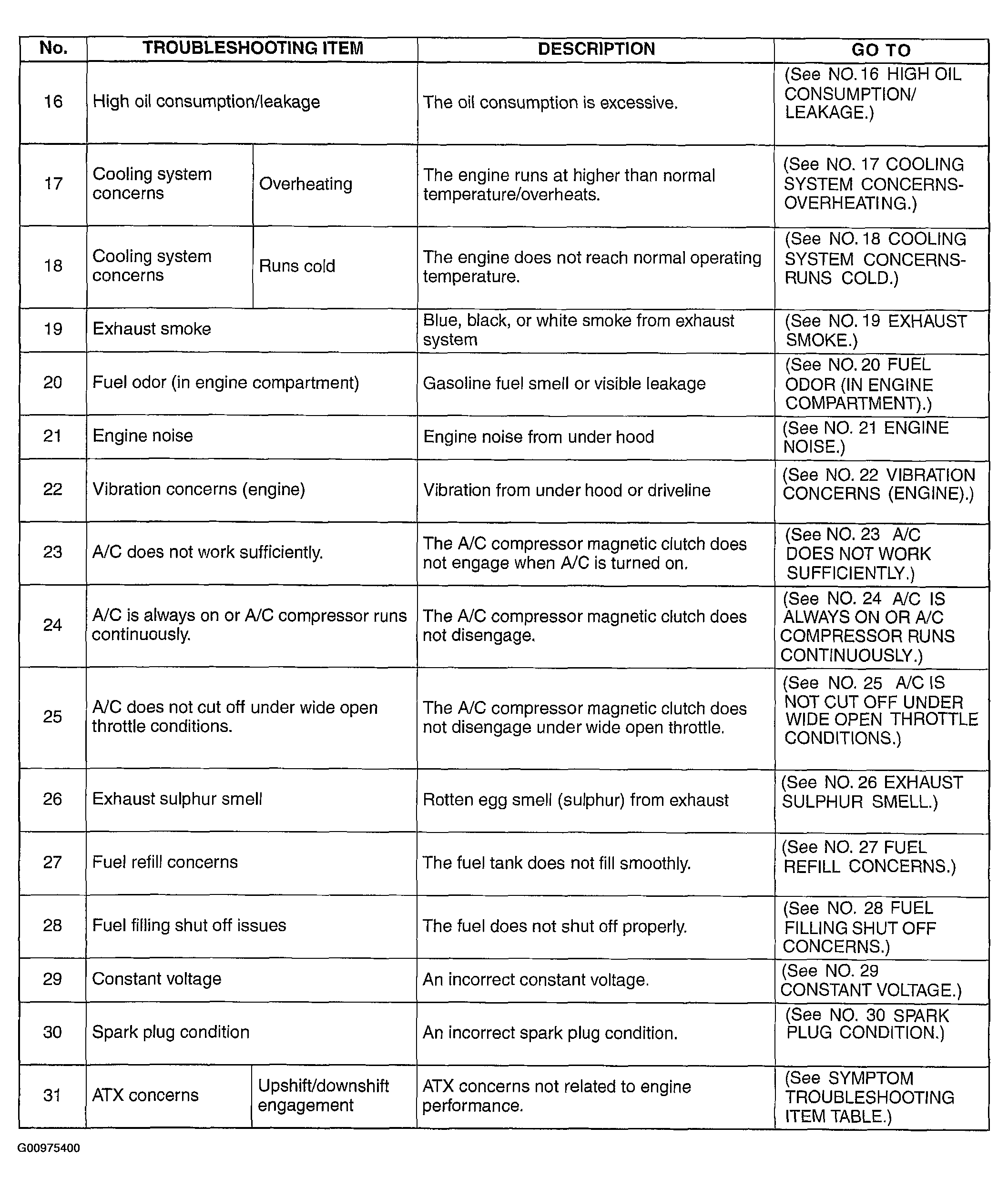

Fig 2: Engine Symptom Troubleshooting - Diagnostic Index (16-31)
G00975400Courtesy of MAZDA MOTORS CORP.
