Diagnostic Procedure

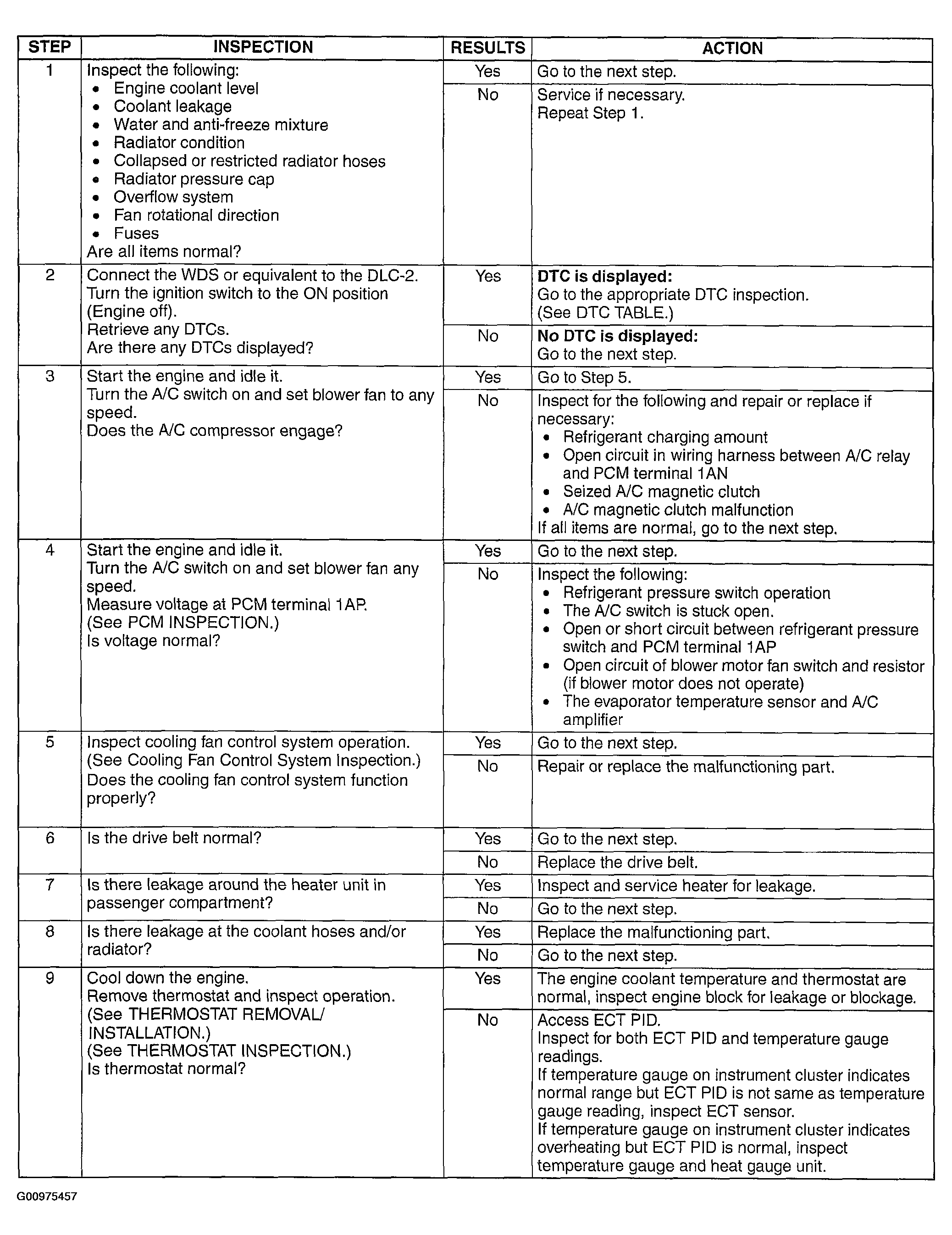

Fig 1: Symptom No. 17 Diagnostic Procedure Chart (Steps 1-9)
G00975457Courtesy of MAZDA MOTORS CORP.

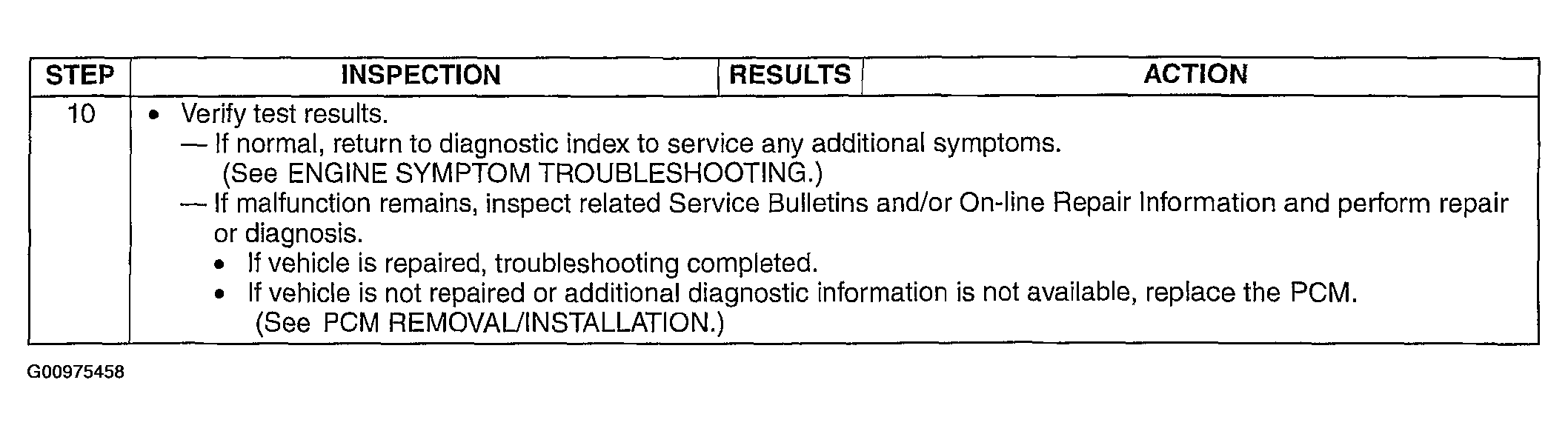

Fig 2: Symptom No. 17 Diagnostic Procedure Chart (Step 10)
G00975458Courtesy of MAZDA MOTORS CORP.
