A/C Unit Disassembly/Assembly

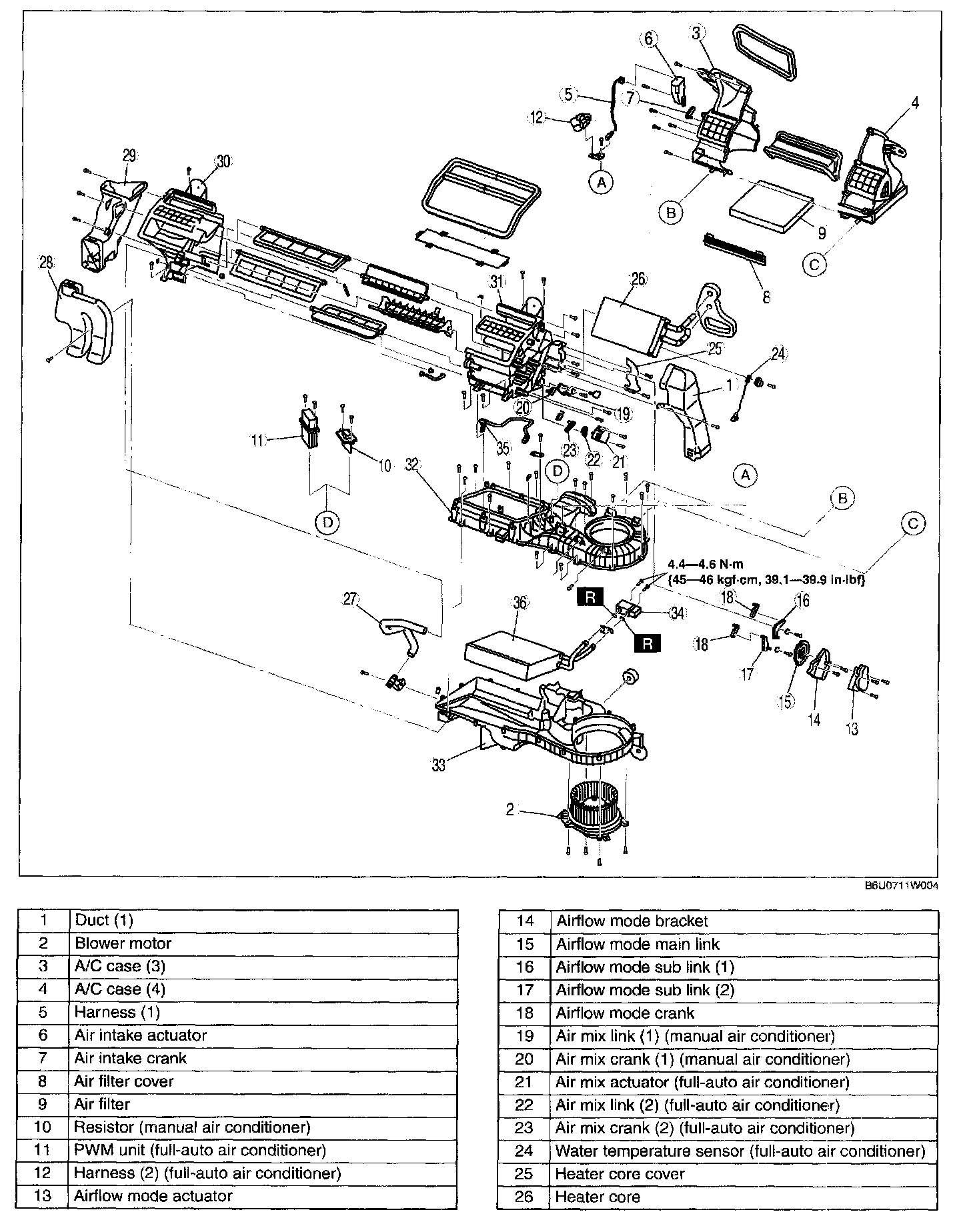

A/C UNIT DISASSEMBLY/ASSEMBLY

Part 1:




Part 2:




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Evaporator Temperature Sensor Assembly Note




1. Assemble the evaporator temperature sensor as shown in the figure.
