EC-AT Control System
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
EC-AT Control System

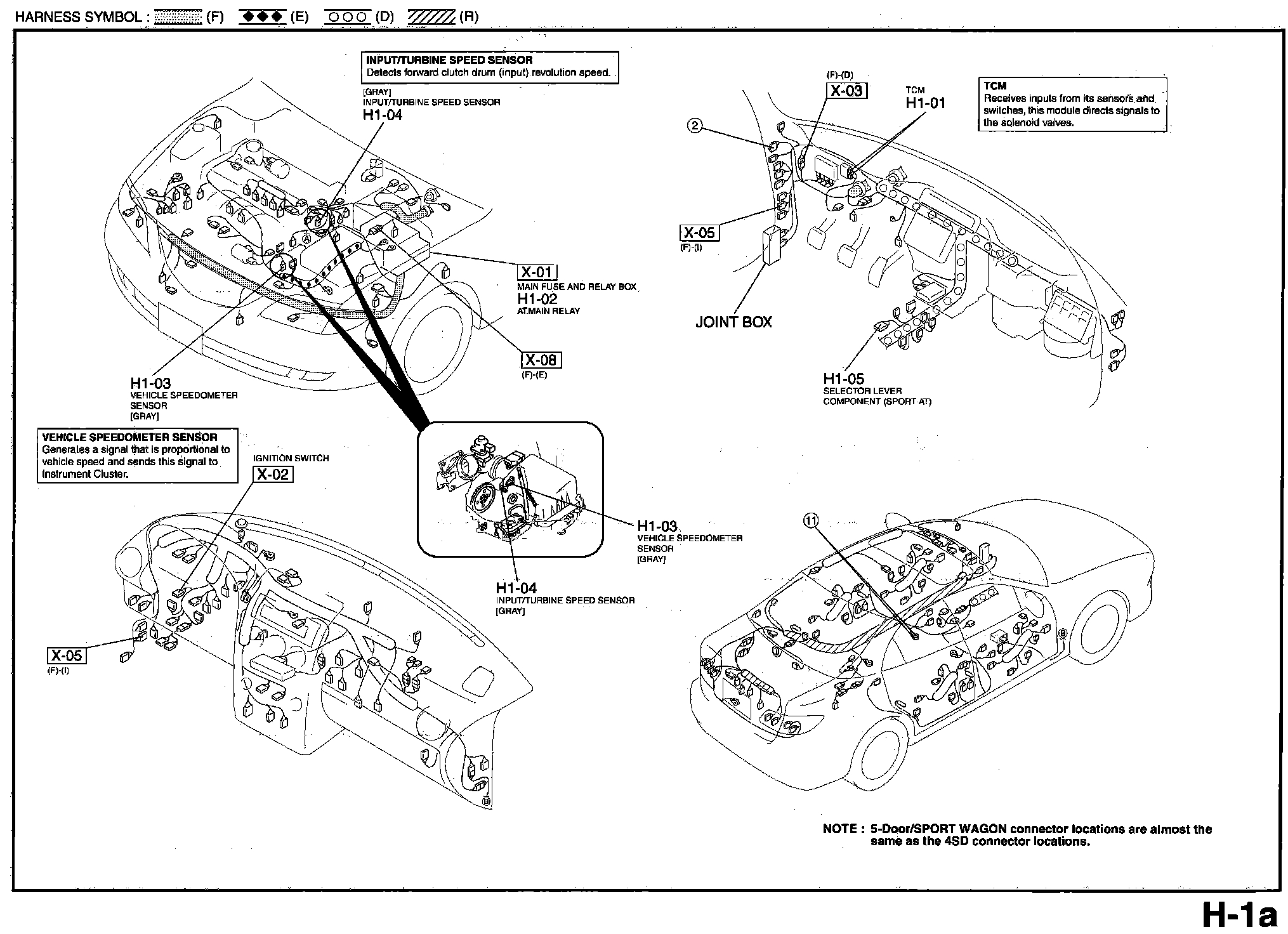

Routing View H-1a:
