Power Flow Structure

POWER FLOW STRUCTURE

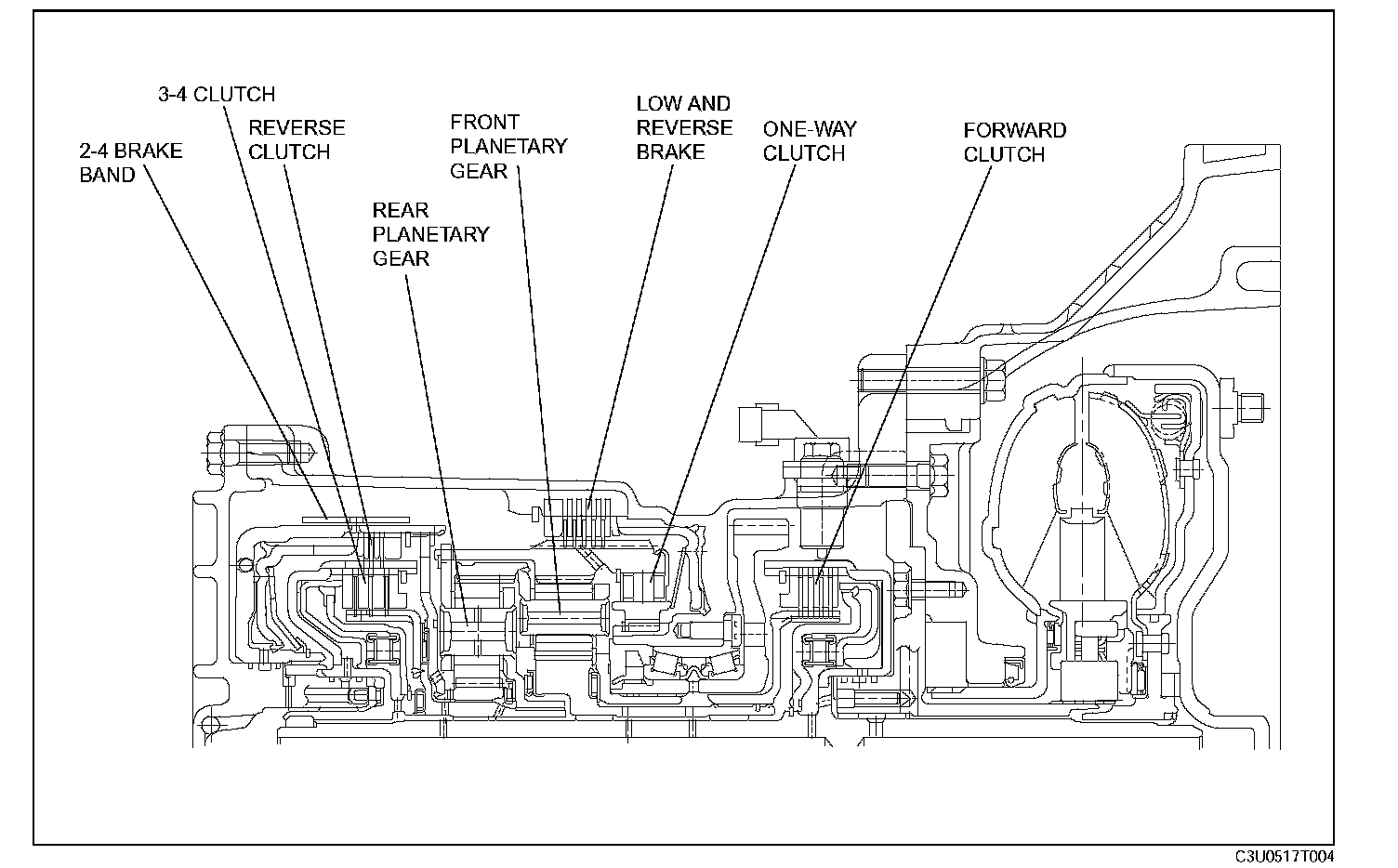

^ The powertrain mechanism of the FN4A-EL type consists of three pairs of clutches, brake, band brake, one way clutch, and two pairs of single type planetary gears.
