Differential Preinspection

Backlash Inspection

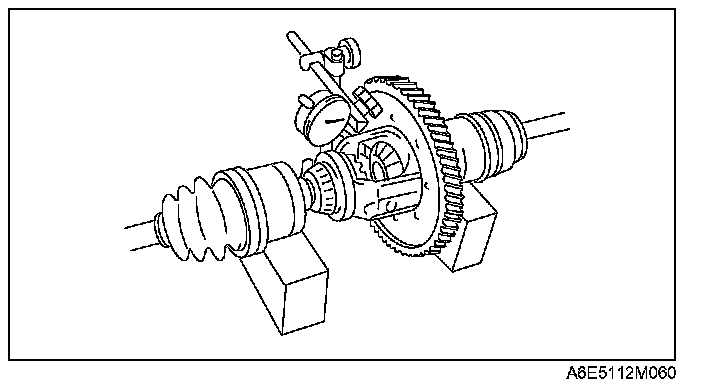

1. Measure the backlash of the side gear.
^ If not as specified, replace parts as necessary.

Standard:
0.050 - 0.150 mm (0.0020 - 0.059 in)
