3RD Gear, 3RD Synchronizer Ring, and 3RD/4TH Clutch Hub Component Assembly Note

3rd Gear, 3rd Synchronizer Ring, and 3rd/4th Clutch Hub Component Assembly Note

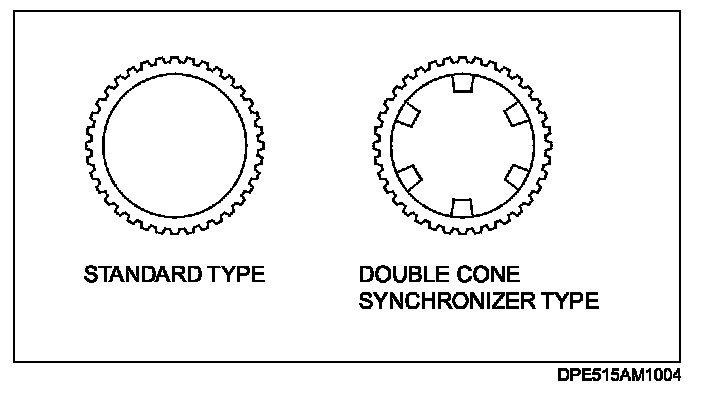

Note: The size of the standard type and double cone synchronizer type synchronizer rings are the same.

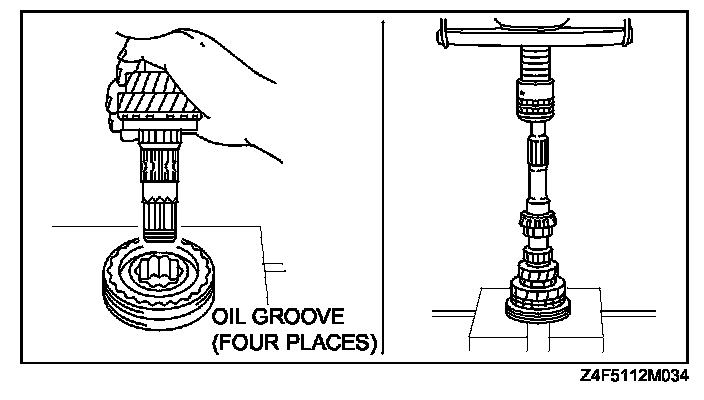

1. Install the 3rd gear, 3rd synchronizer ring, and 3rd/4th clutch hub component using a press.
