Power Outside Mirror Switch Inspection

Inspect for continuity between the power outside mirror switch terminals using an ohmmeter.
- If not as specified, replace the power outside mirror switch.

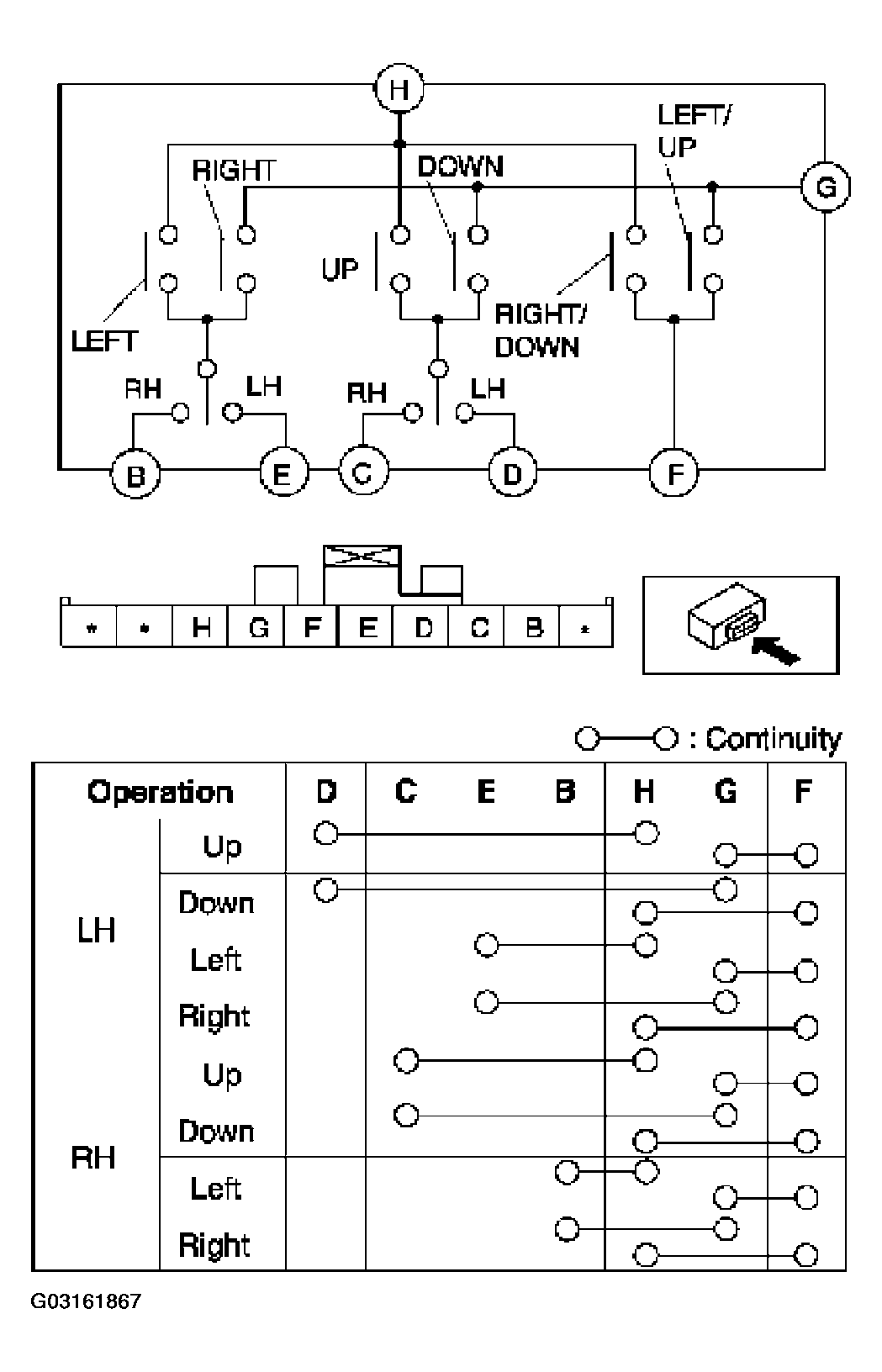

Fig 1: Inspecting Continuity Between Power Outside Mirror Switch Terminals

Courtesy of MAZDA MOTORS CORP.
