Diagnostic procedure

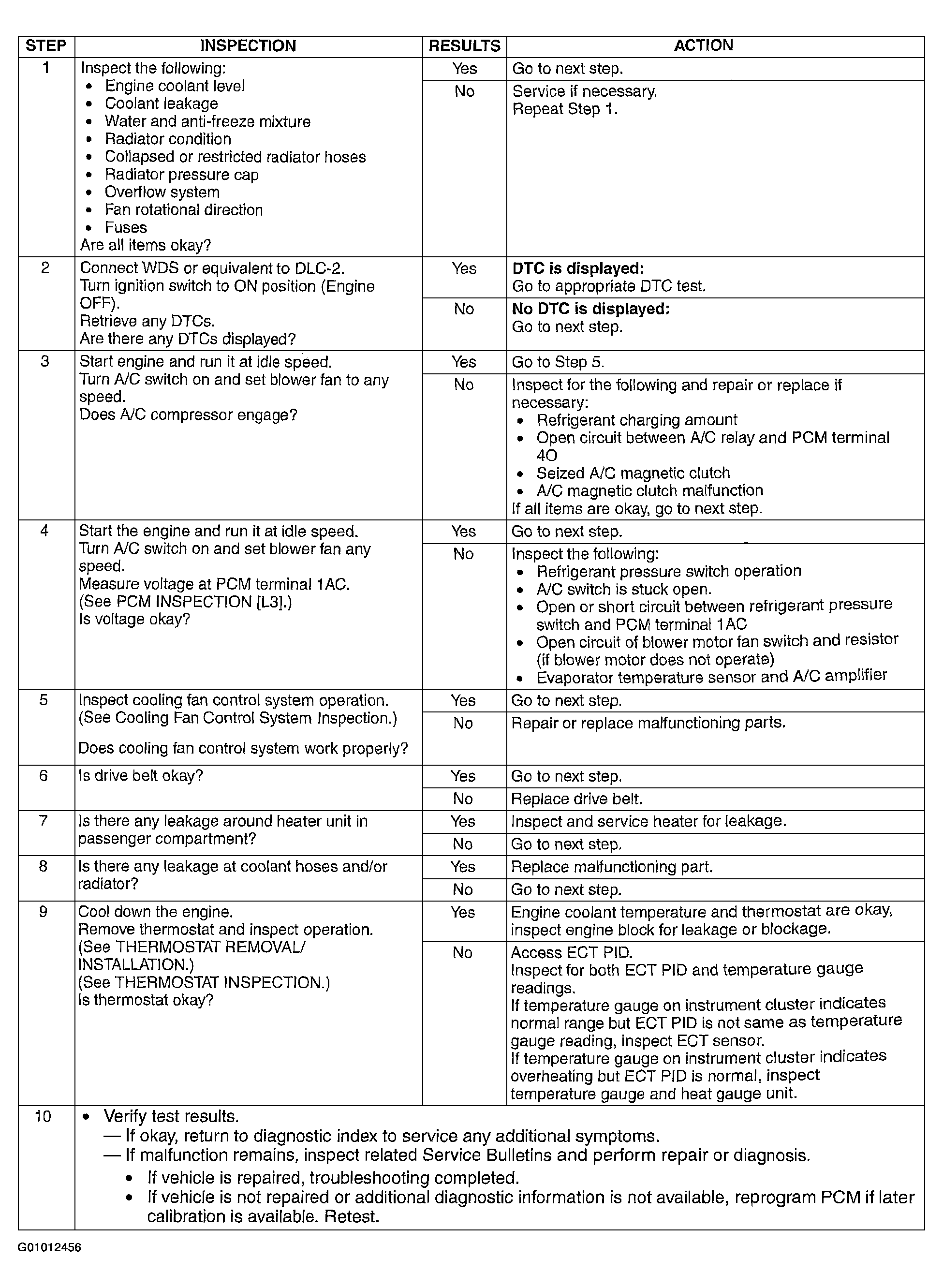

Fig 1: Symptom No.17 Cooling System Concerns-Overheating - Diagnostic Procedure Chart
G01012456Courtesy of MAZDA MOTORS CORP.
