Symptom Troubleshooting [Engine Control System (L3)
>>
No.20 Fuel Odor (In Engine Compartment)
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
No.20 Fuel Odor (In Engine Compartment): Notes

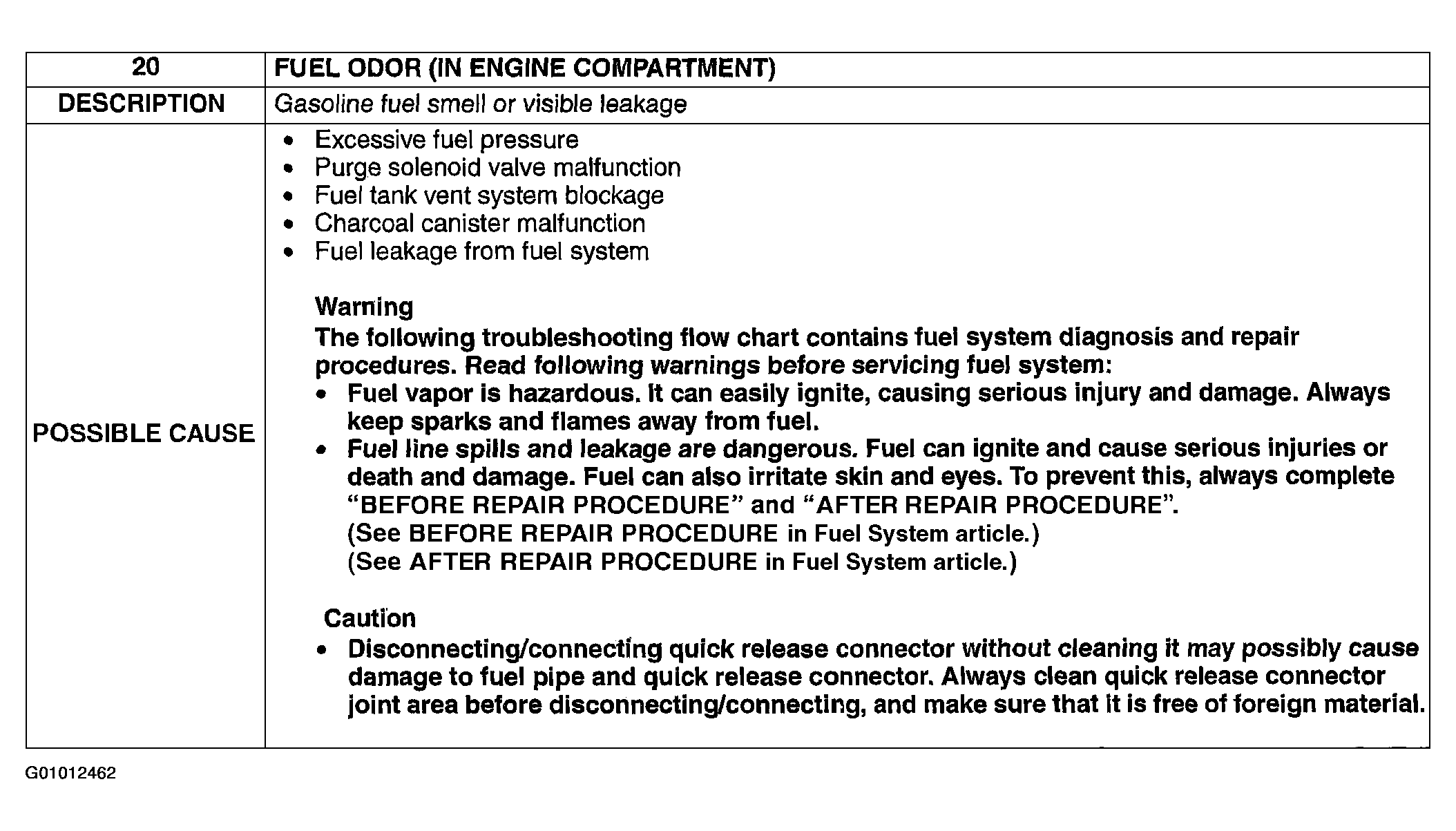

Fig 1: Symptom No.20 Fuel Odor (In Engine Compartment) - Description & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
