Guide Assembly Note

  1. Move the guide by hand until it comes to the front stopper.
  2. Move the guide by hand until the center of the pin comes between marks A and B.

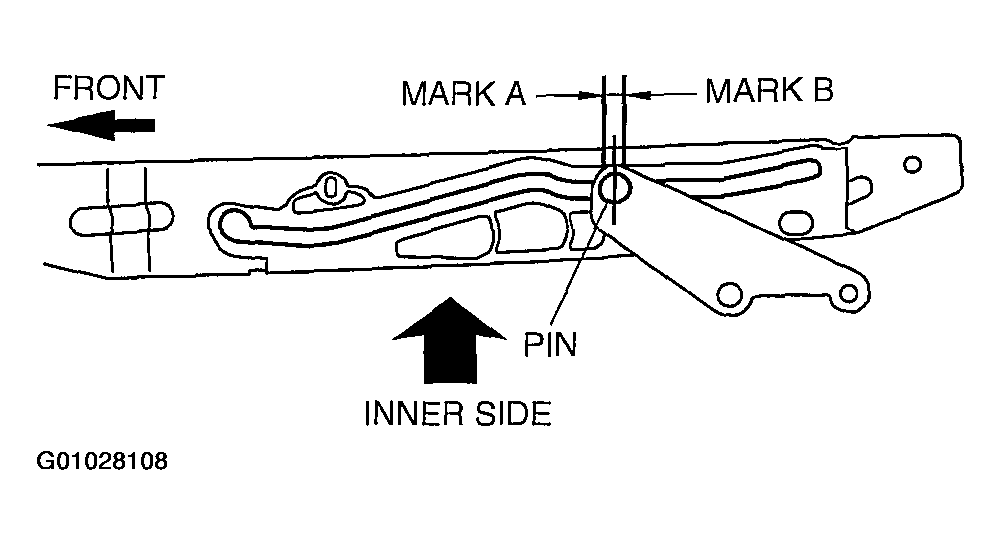

Fig 1: Moving Guide To Align Center Of Pin
G01028108Courtesy of MAZDA MOTORS CORP.
