DTC P0480: Fan Relay No. 1 Control Circuit Malfunction: Notes

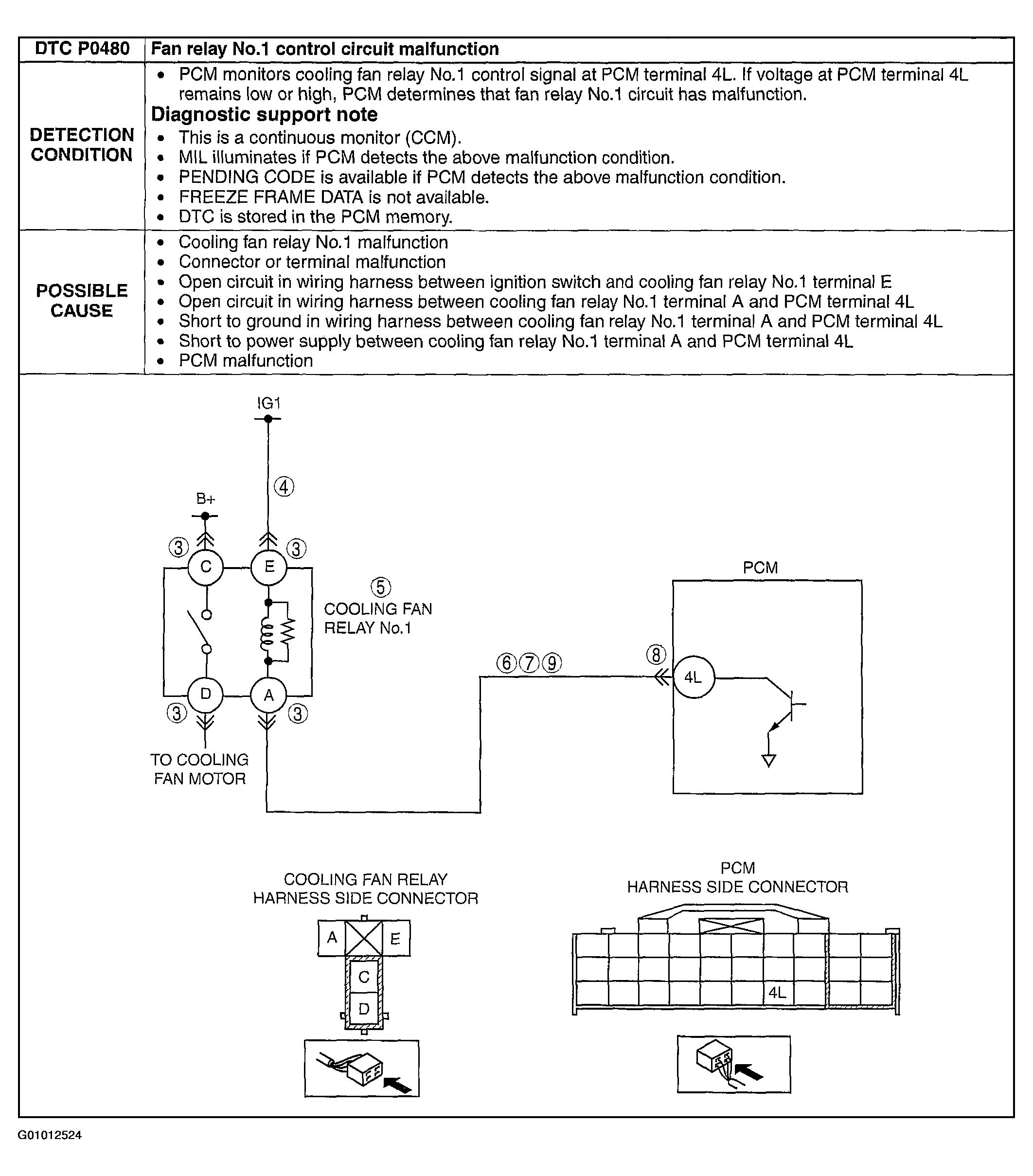

Fig 1: DTC P0480 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
G01012524Courtesy of MAZDA MOTORS CORP.
