Power Window SUBSWITCH Inspection

  1. Inspect for continuity between the power window subswitch terminals.
    • If not as specified, replace the power window subswitch.

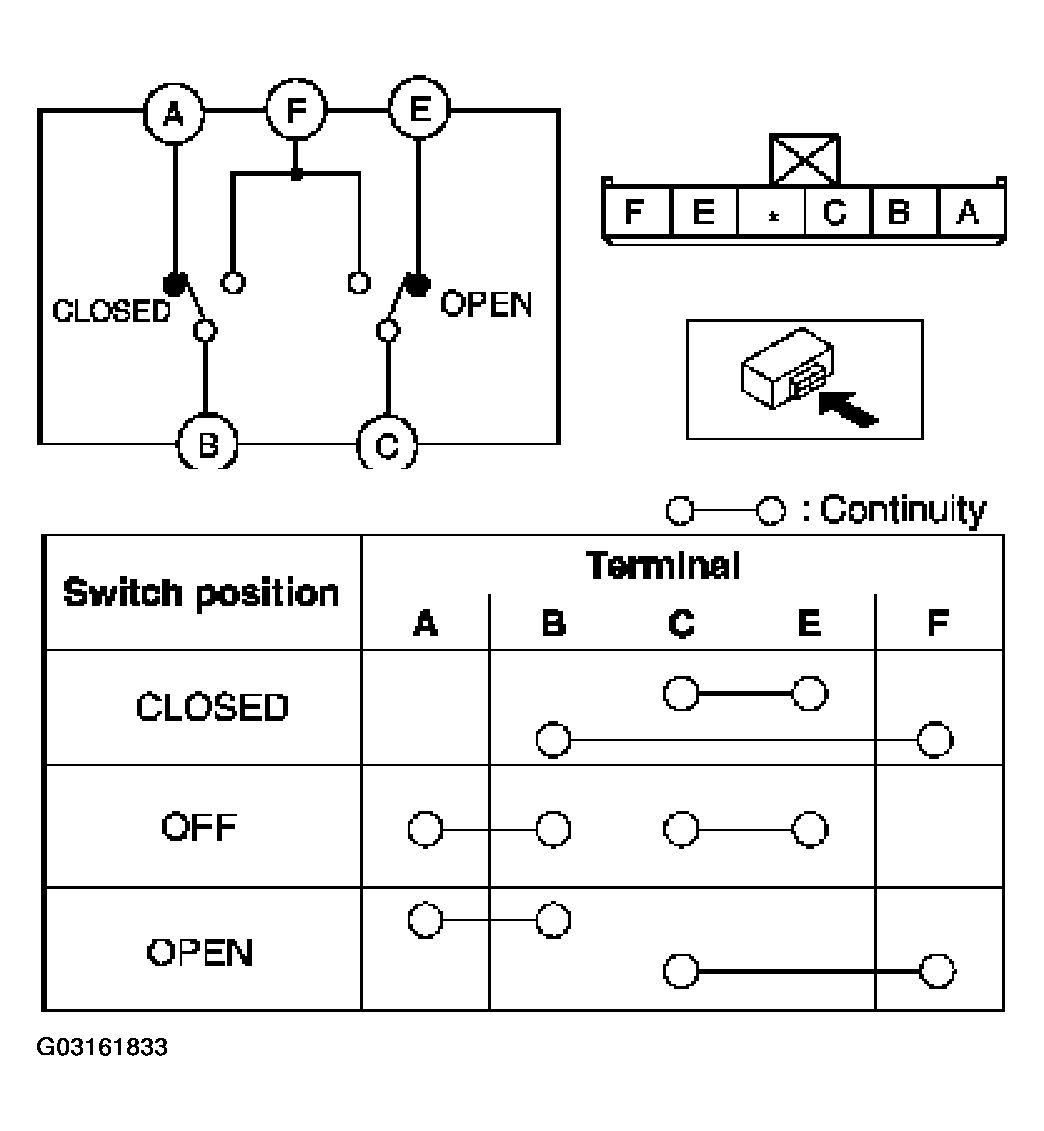

Fig 1: Identifying Power Window Subswitch Positions/Terminals Continuity Specifications
G03161833Courtesy of MAZDA MOTORS CORP.
