Home
>>
Mazda
>>
2004
>>
6 s, 4D Hatchback, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System AJ)
>>
DTC P2128: App Sensor No.2 Circuit High Input
>>
Diagnostic Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedure

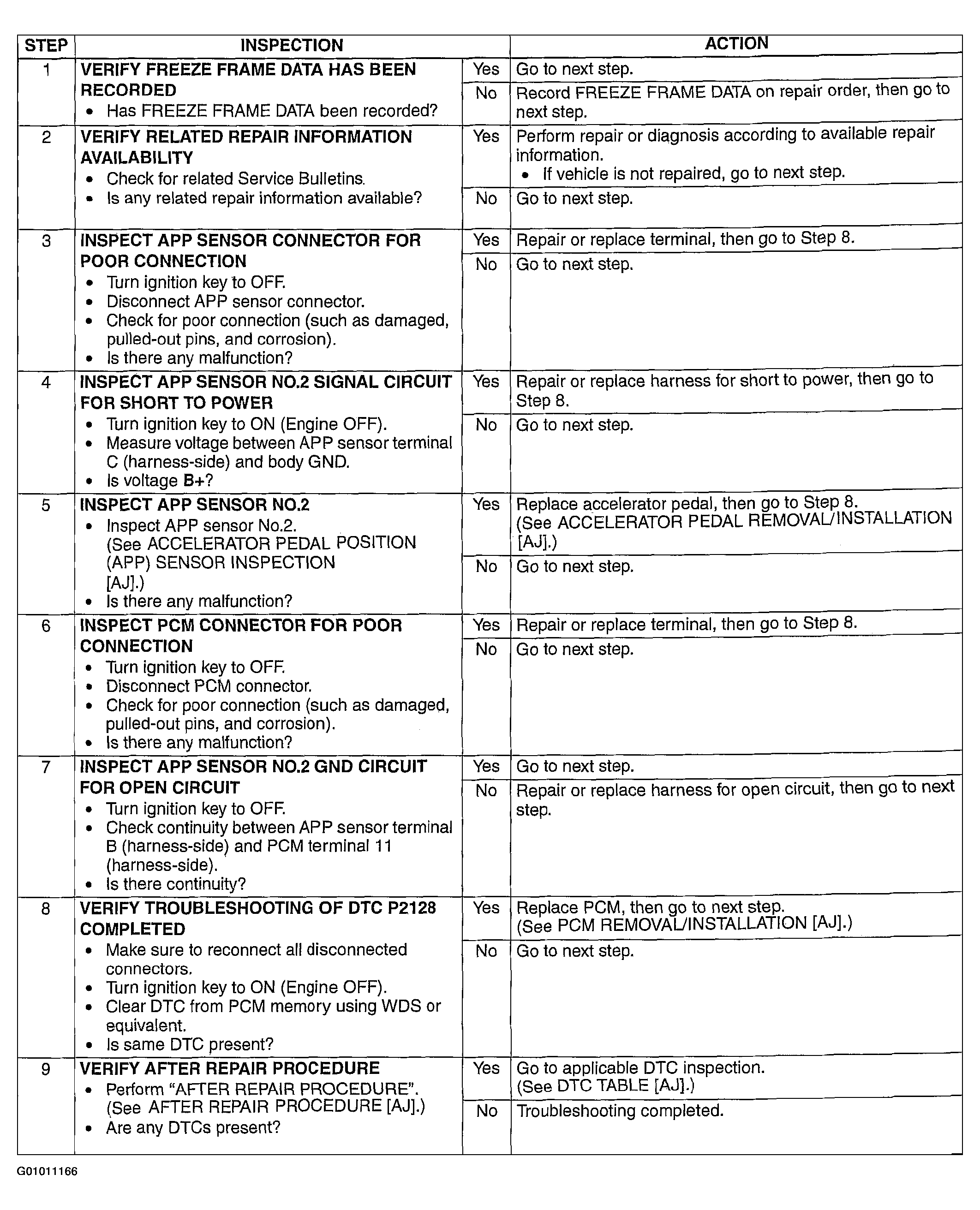

Fig 1: DTC P2128: Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
