On-Board Diagnostic [Engine Control System AJ)
>>
DTC P2502: Generator Terminal B Circuit Open
>>
Diagnostic Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedure

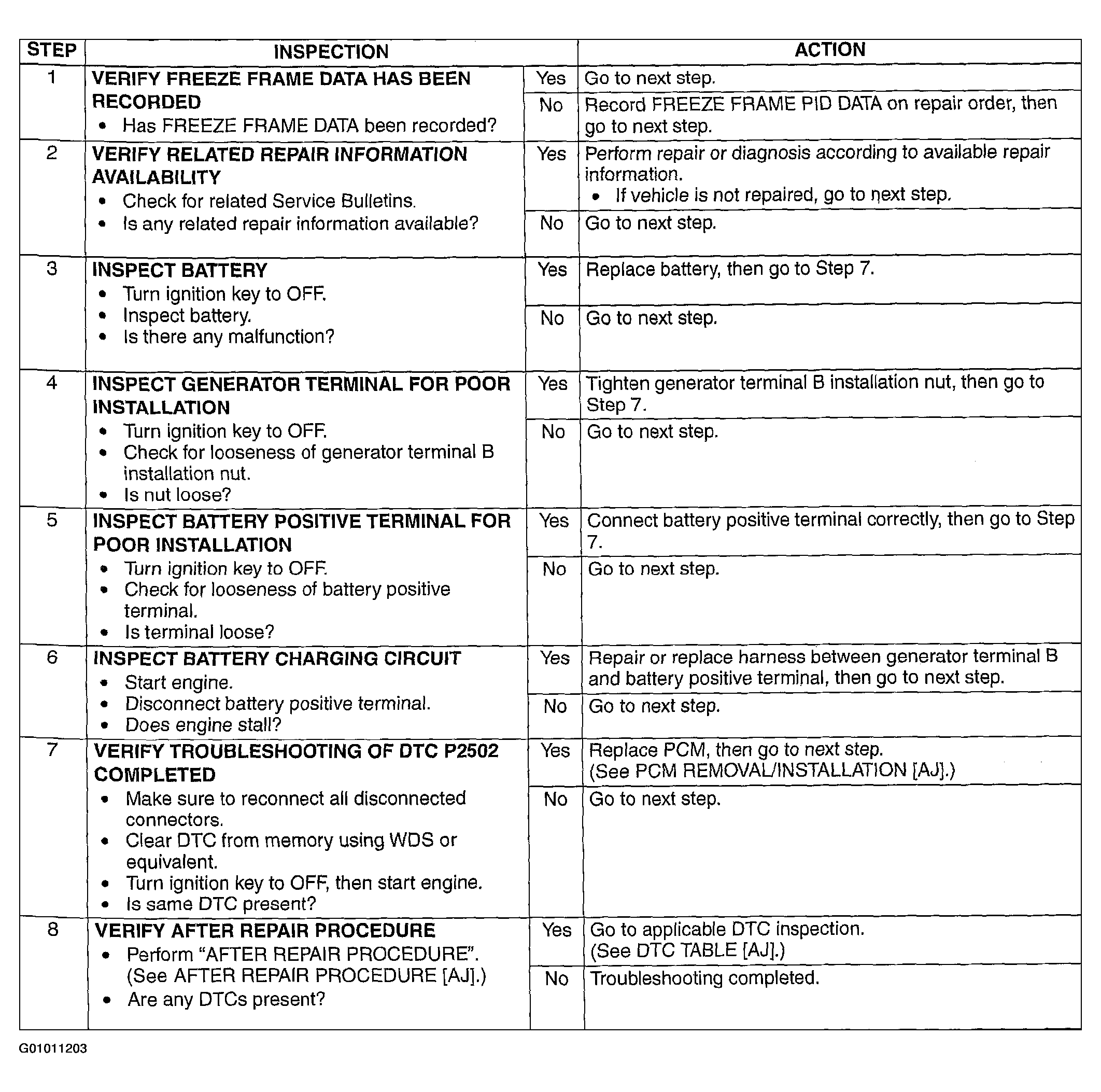

Fig 1: DTC P2502: Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
