6 s, 4D Hatchback, Standard
>>
Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Door Locks
>>
Symptom Troubleshooting [Keyless Entry System]
>>
No. 3 Transmitter Id Code Cannot Be Reprogrammed
>>
Diagnostic procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic procedure

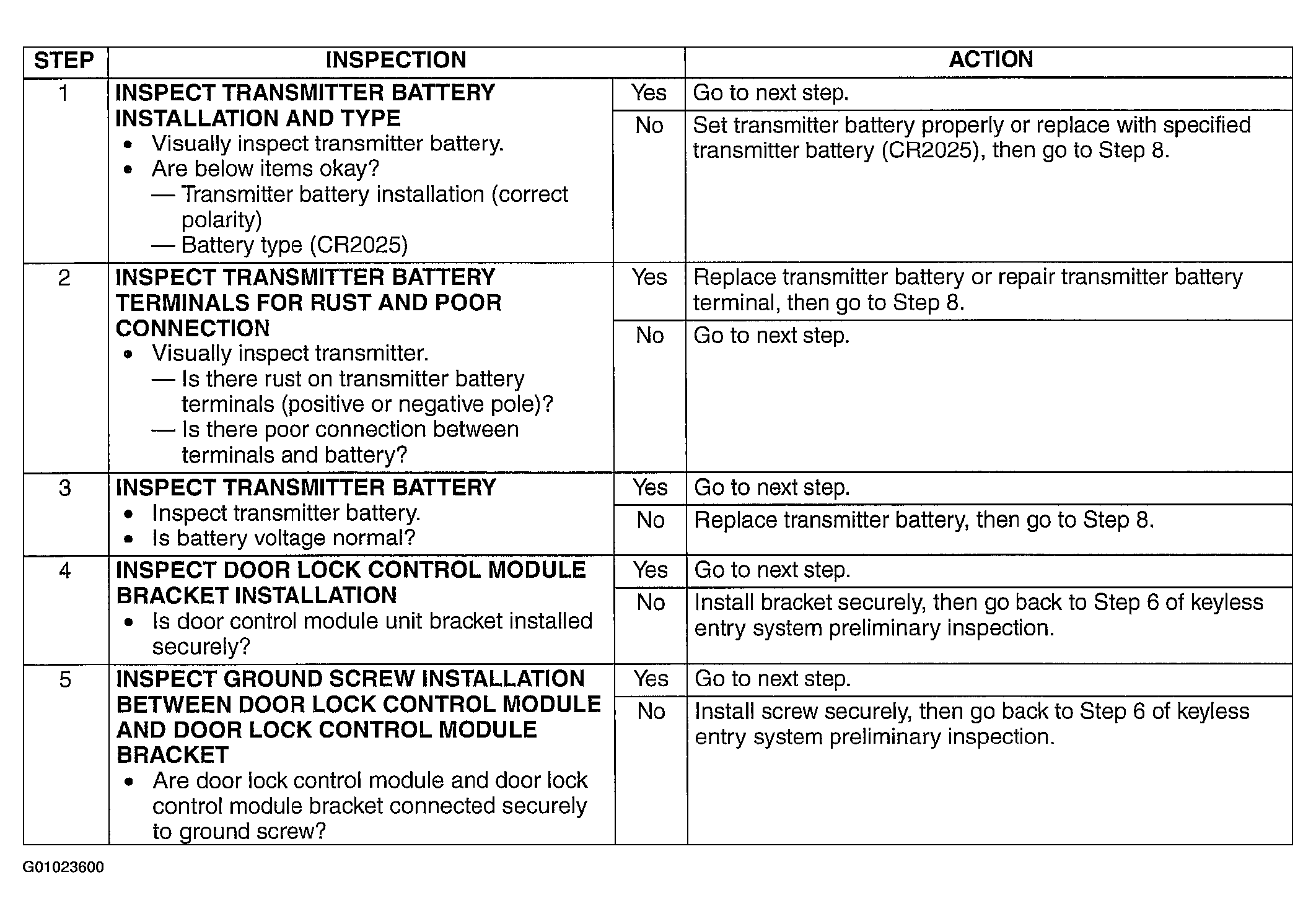

Fig 1: Diagnostic Procedure - Transmitter ID Code Cannot Be Reprogrammed (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

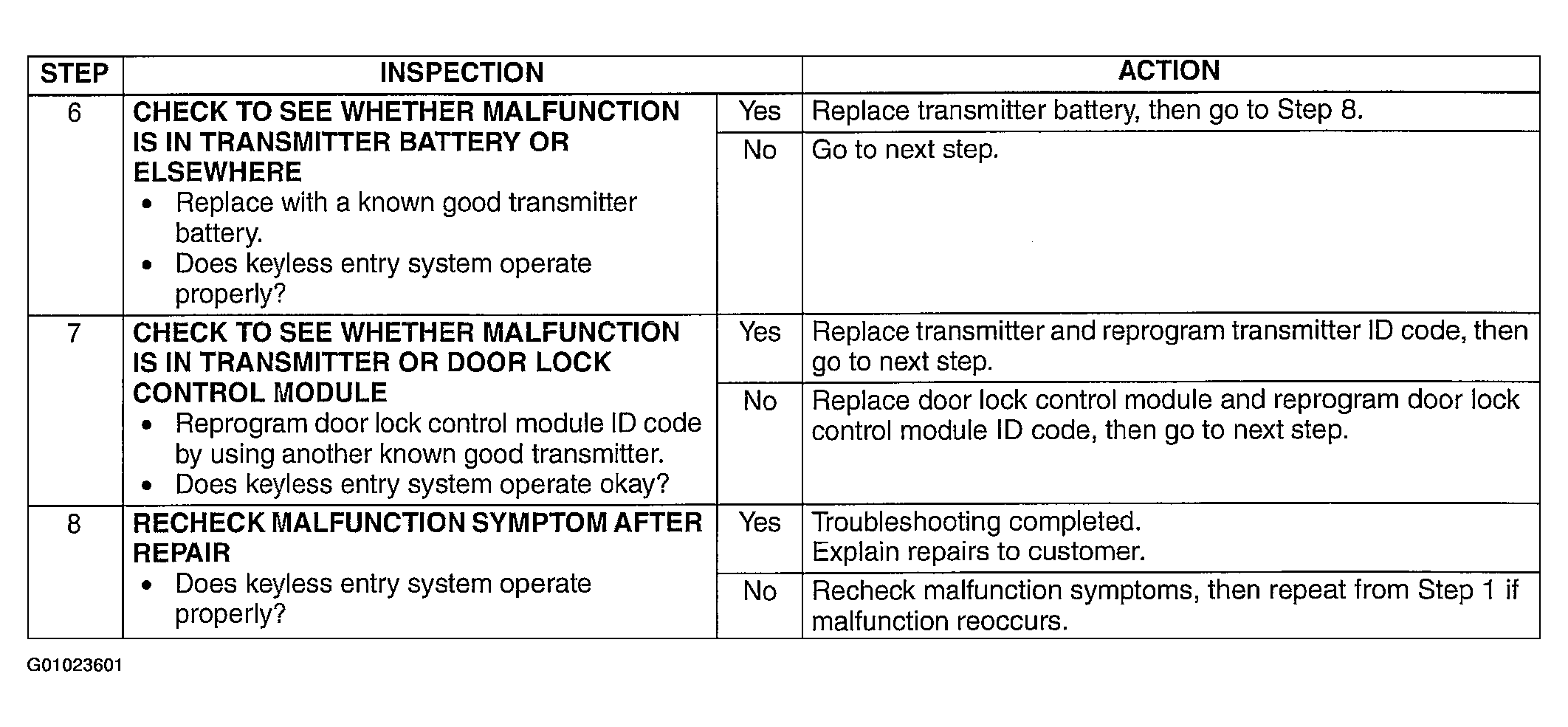

Fig 2: Diagnostic Procedure - Transmitter ID Code Cannot Be Reprogrammed (Steps 6-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
