Diagnostic Procedure

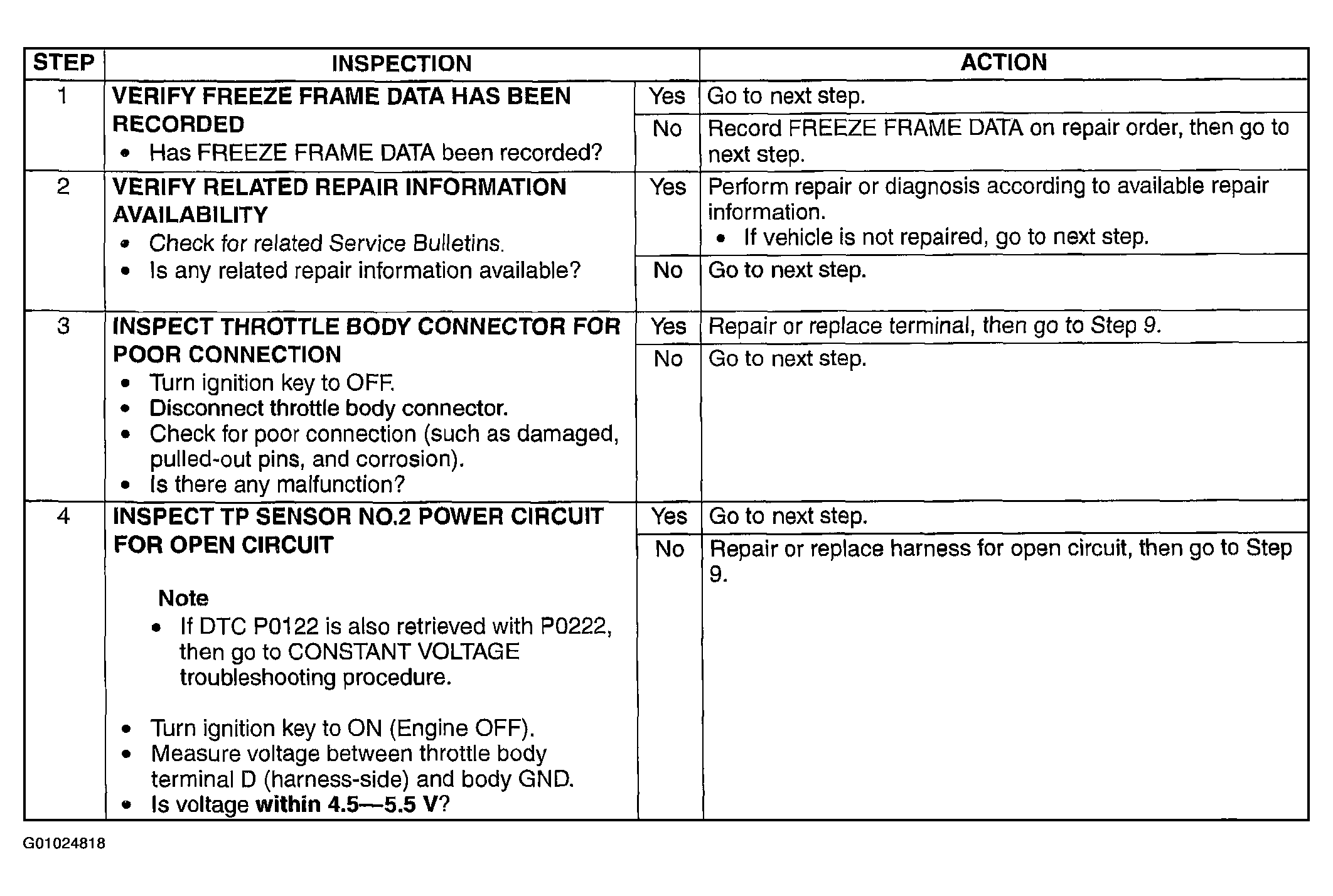

Fig 1: DTC P0222: Diagnostic Procedure Chart (Steps 1-4)
G01024818Courtesy of MAZDA MOTORS CORP.

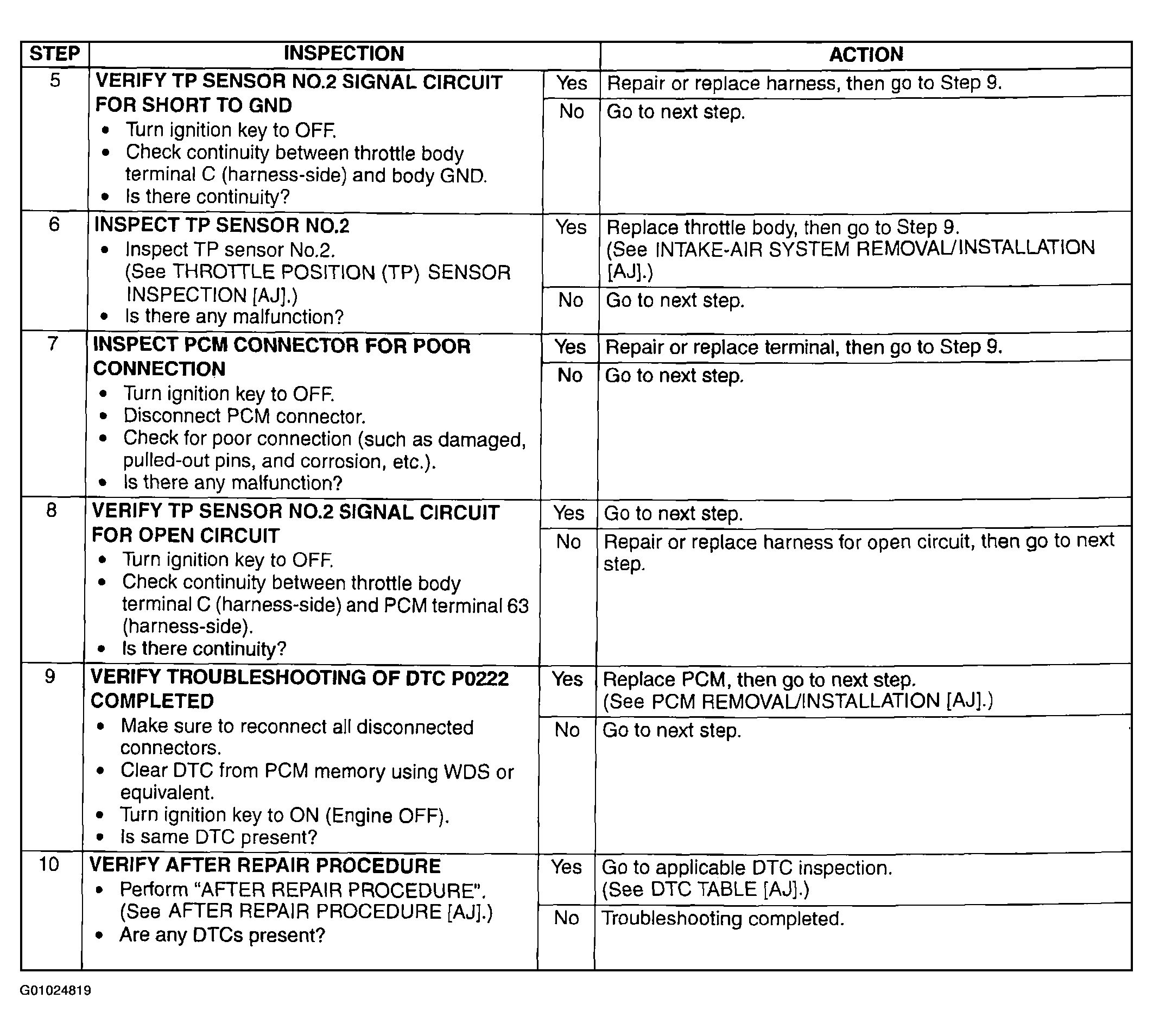

Fig 2: DTC P0222: Diagnostic Procedure Chart (Steps 5-10)
G01024819Courtesy of MAZDA MOTORS CORP.
