Door Handle Outside Front Removal/Installation

  1. Remove the front door trim panel. See DOOR TRIM PANEL FRONT REMOVAL/INSTALLATION .
  2. Remove the water shield.
    NOTE:
    • The front door glass must be completely up.
  3. Disconnect the front door lock to door handle rod (1).
  4. Drill out the two rivets (2).
  5. Remove the outside door handle.
  6. Install in reverse order of removal.

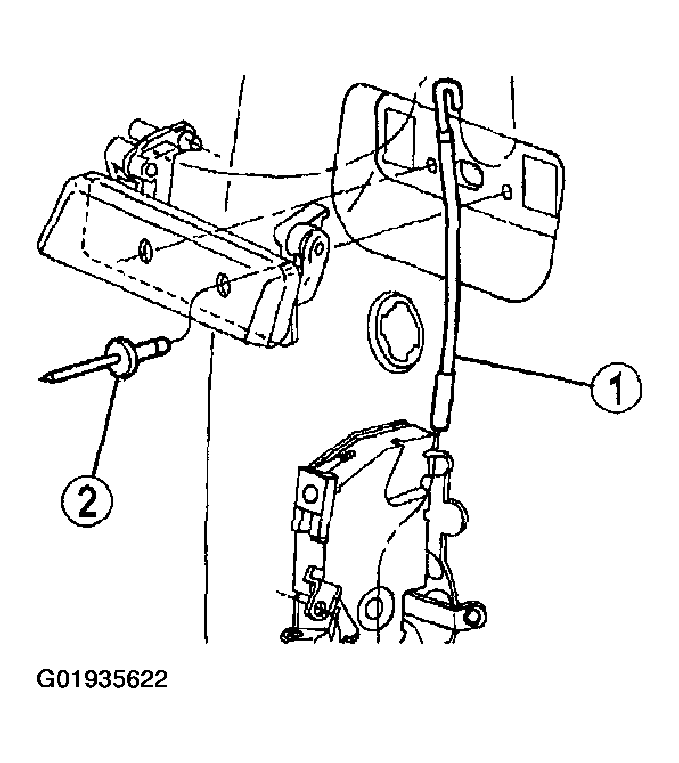

    Fig 1: Removing/Installing Door Handle Outside Front
    G01935622Courtesy of MAZDA MOTORS CORP.
