Instrument Cluster Lens Removal/Installation

  1. Remove the instrument cluster; see INSTRUMENT CLUSTER REMOVAL/INSTALLATION  .
  2. Remove the instrument cluster lens and mask assembly.
    1. Remove the screws.
    2. Remove the instrument cluster lens and mask assembly.

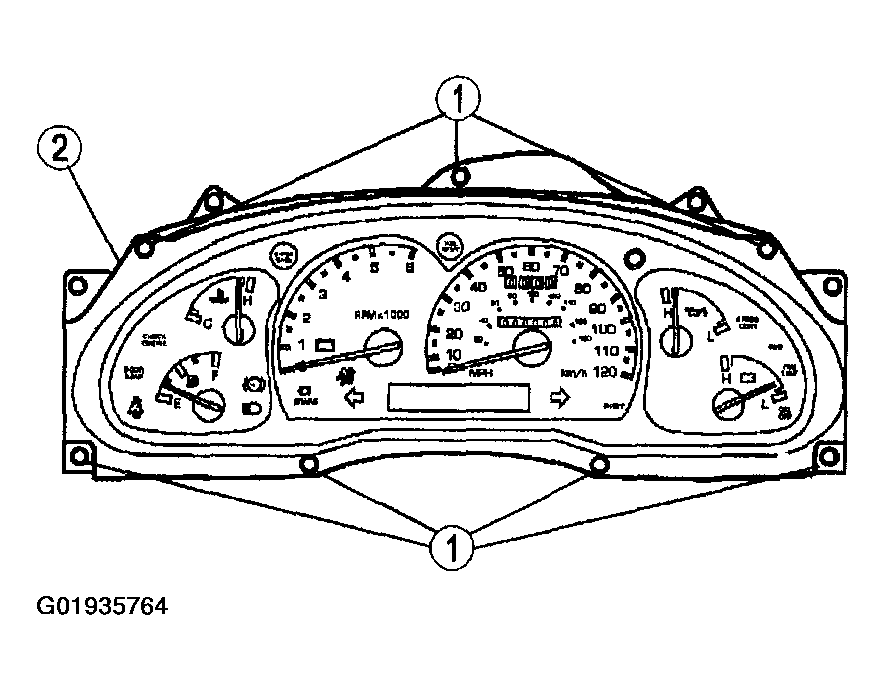

    Fig 1: Removing/Installing Instrument Cluster Lens
    G01935764Courtesy of MAZDA MOTORS CORP.
  3. Install the instrument cluster lens and mask assembly.
    1. Position the instrument cluster lens and mask assembly.
    2. Install the screws.
      1. Tightening torque
        1. 1.4 - 1.8 N.m (14.3 - 18.4 kgf.cm, 12 - 16 ft.lbf)
  4. Install the instrument cluster. See INSTRUMENT CLUSTER REMOVAL/INSTALLATION  .
