Multi-Function Switch - Component Test

Measure the resistance between the multi-function switch terminals.

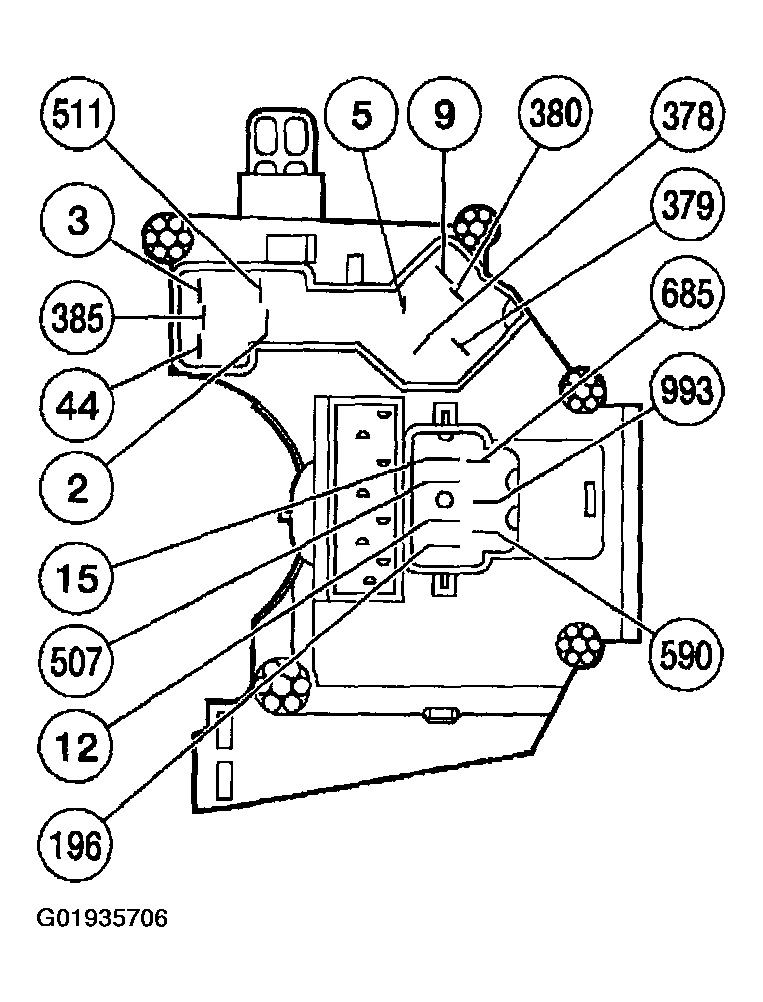

Fig 1: Identifying Multi-Function Switch Terminals
Courtesy of MAZDA MOTORS CORP.

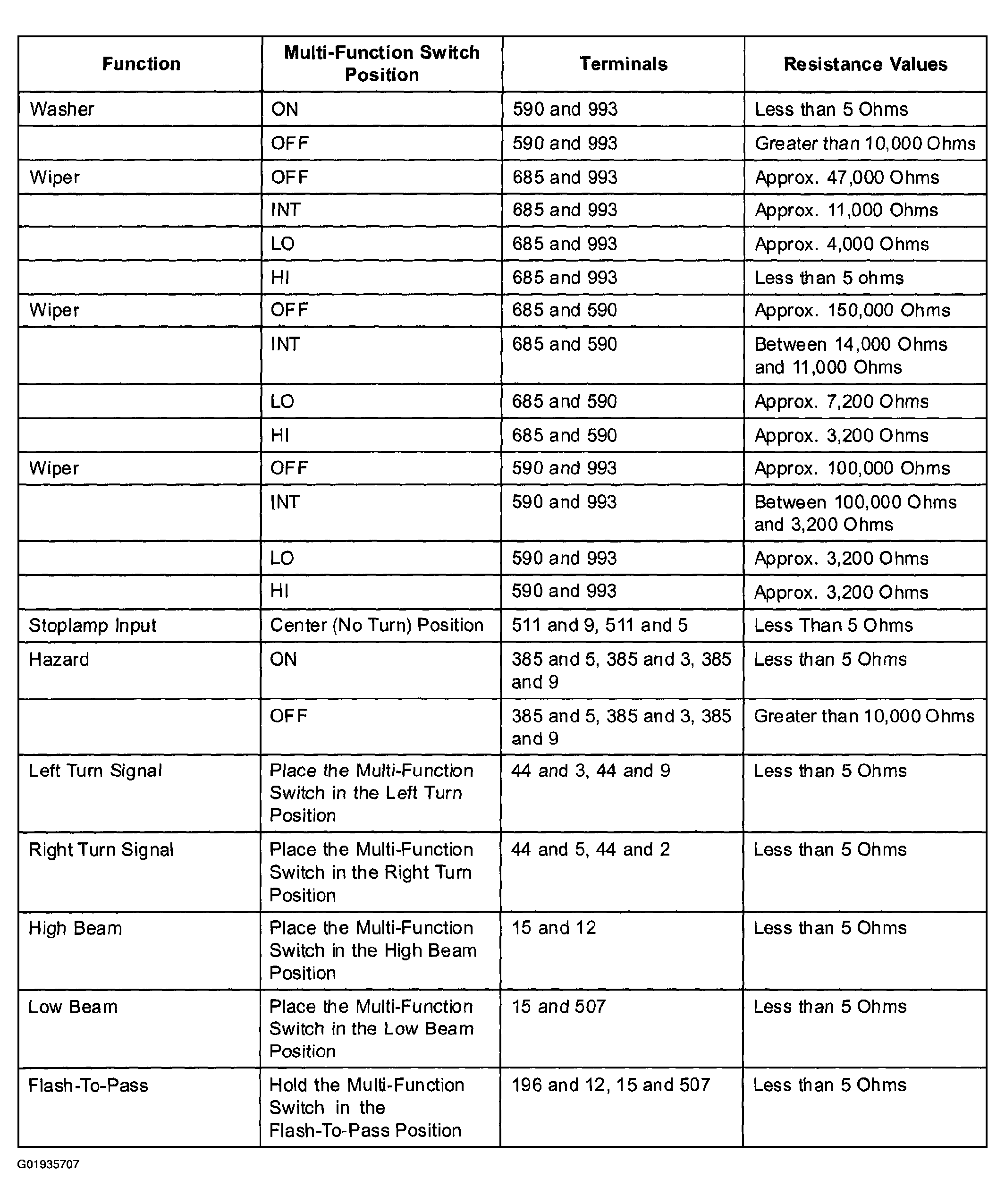

Fig 2: Multi-Function Switch Terminals Resistance Value
Courtesy of MAZDA MOTORS CORP.

If the resistances are as specified, the multi-function switch is OK. Return the multi-function switch to the vehicle. Test the system for normal operation.

If the resistances are not as specified, replace the multifunction switch. See MULTI-FUNCTION SWITCH REMOVAL/INSTALLATION . Test the system for normal operation.
