Diagnostic Monitoring Test Results Table

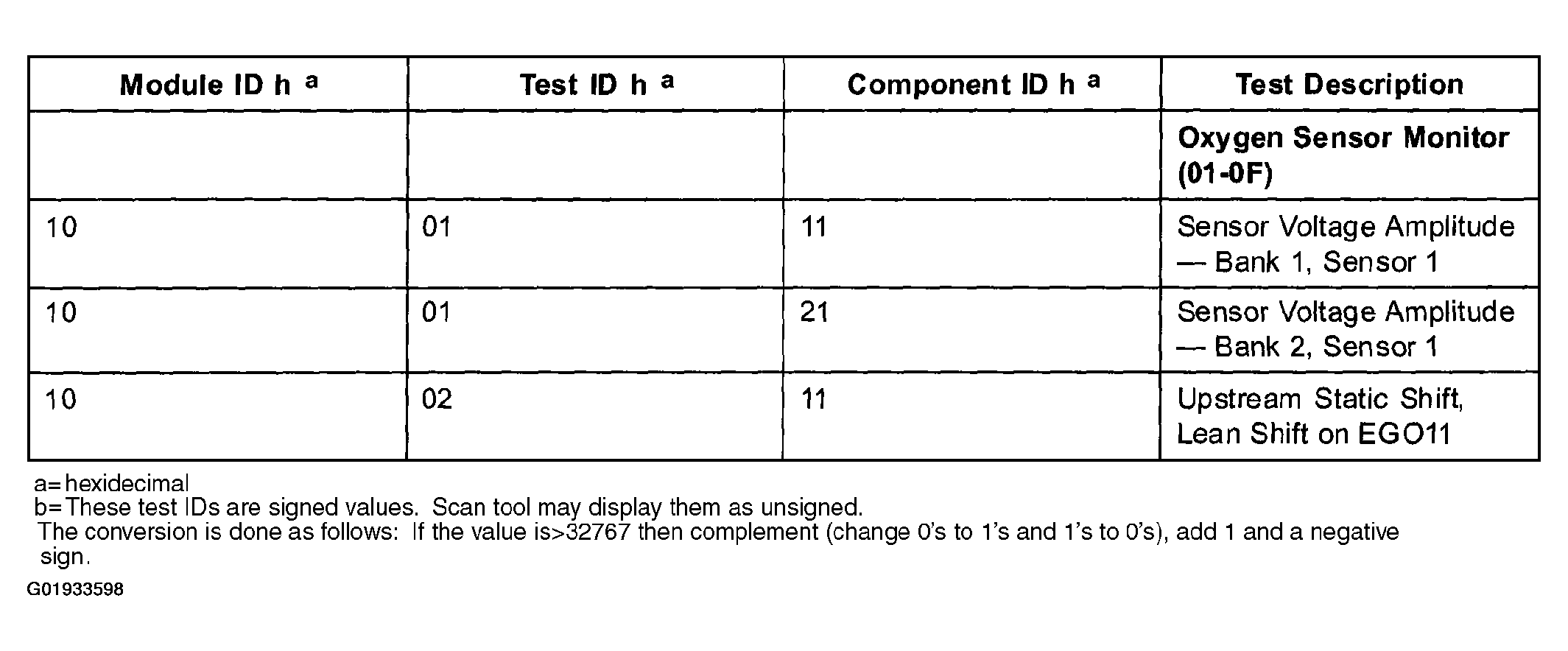

Fig 1: Monitoring Diagnostic Test Results Table (1 of 4)

Courtesy of MAZDA MOTORS CORP.

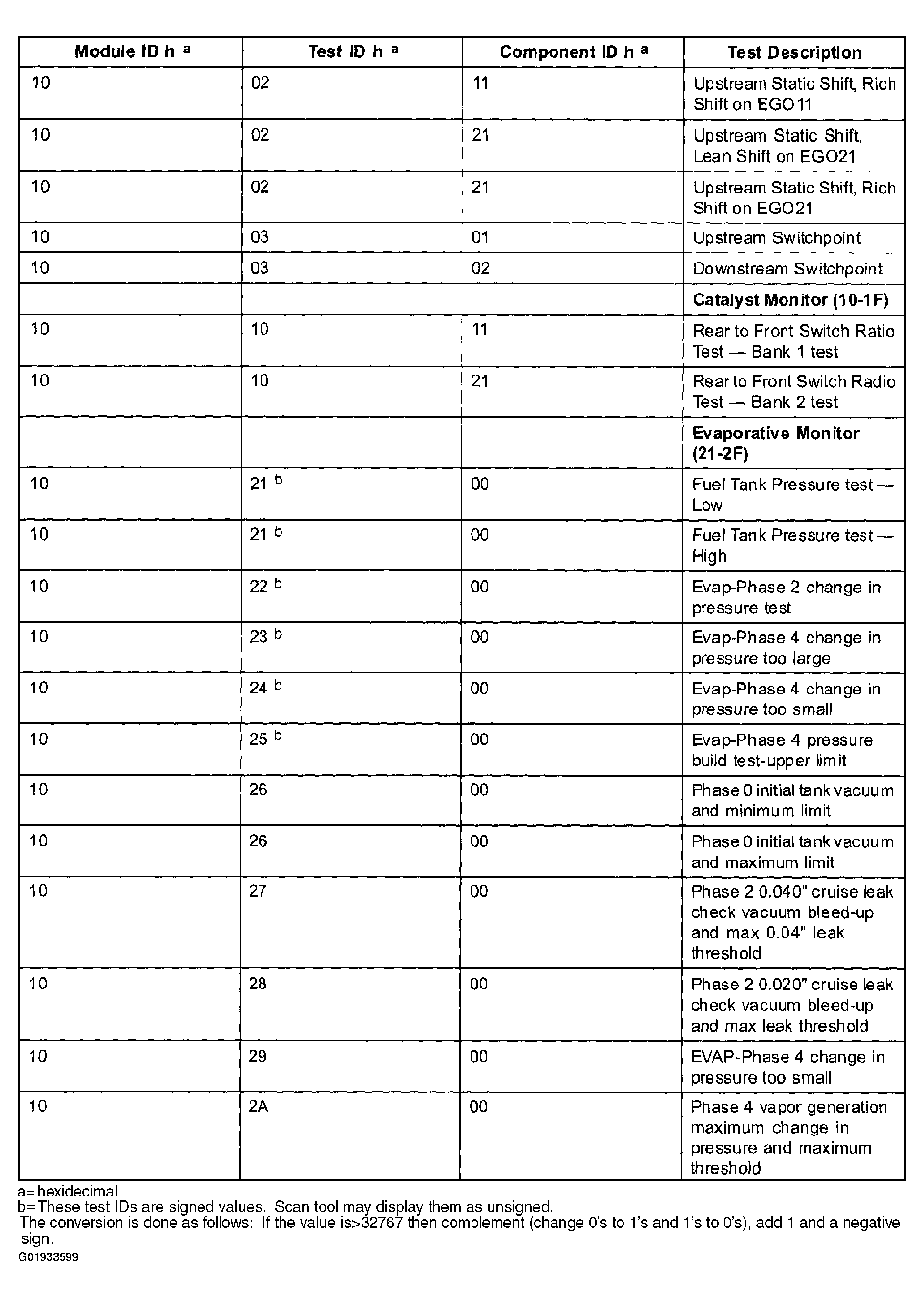

Fig 2: Monitoring Diagnostic Test Results Table (2 of 4)

Courtesy of MAZDA MOTORS CORP.

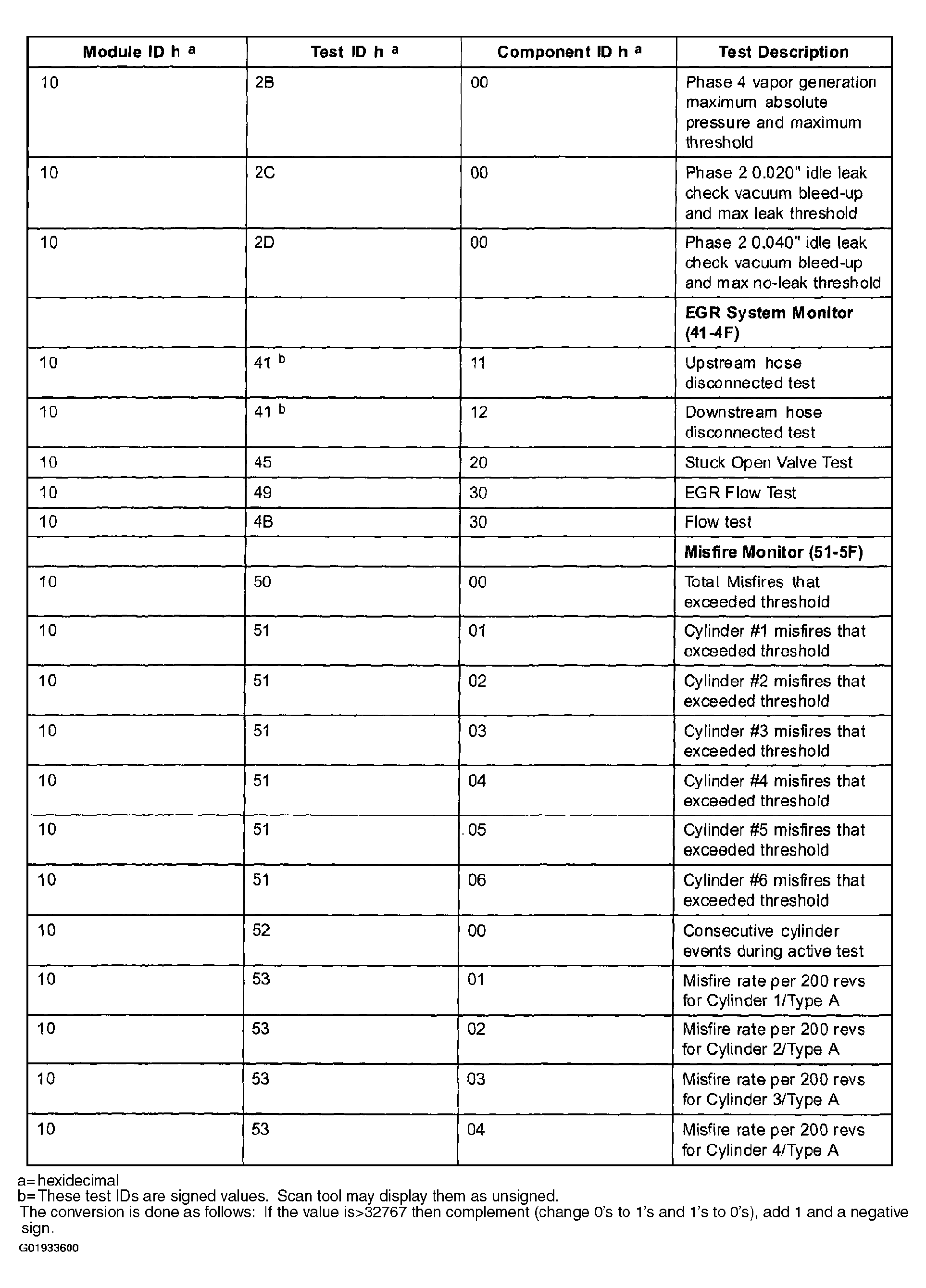

Fig 3: Monitoring Diagnostic Test Results Table (3 of 4)

Courtesy of MAZDA MOTORS CORP.

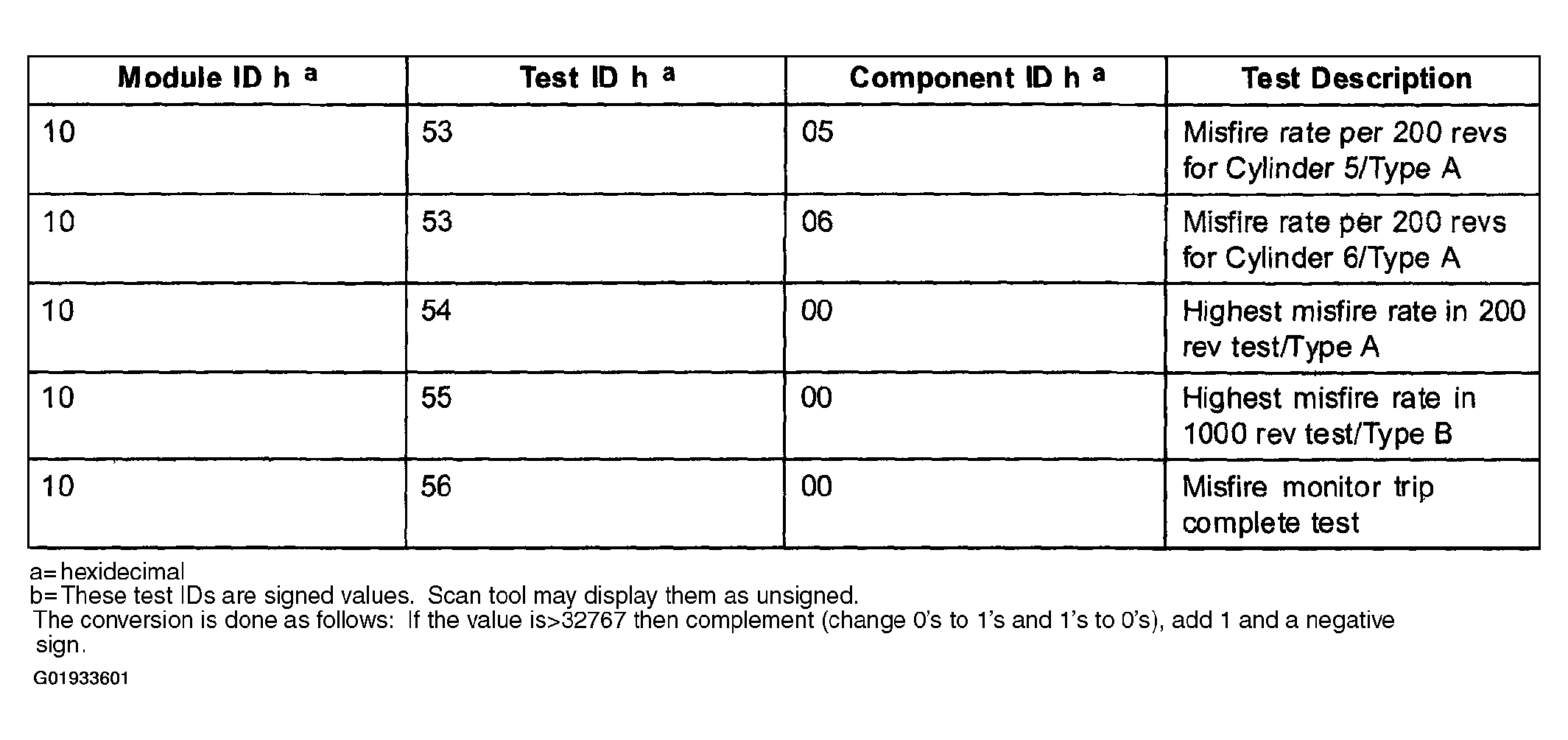

Fig 4: Monitoring Diagnostic Test Results Table (4 of 4)

Courtesy of MAZDA MOTORS CORP.

Example:

Fig 5: Data Conversion Table

Courtesy of MAZDA MOTORS CORP.
