Automatic Transmission External Controls Pinpoint Test 3: The Transmission Control Switch (Od On/Off) Is Not Operating Properly

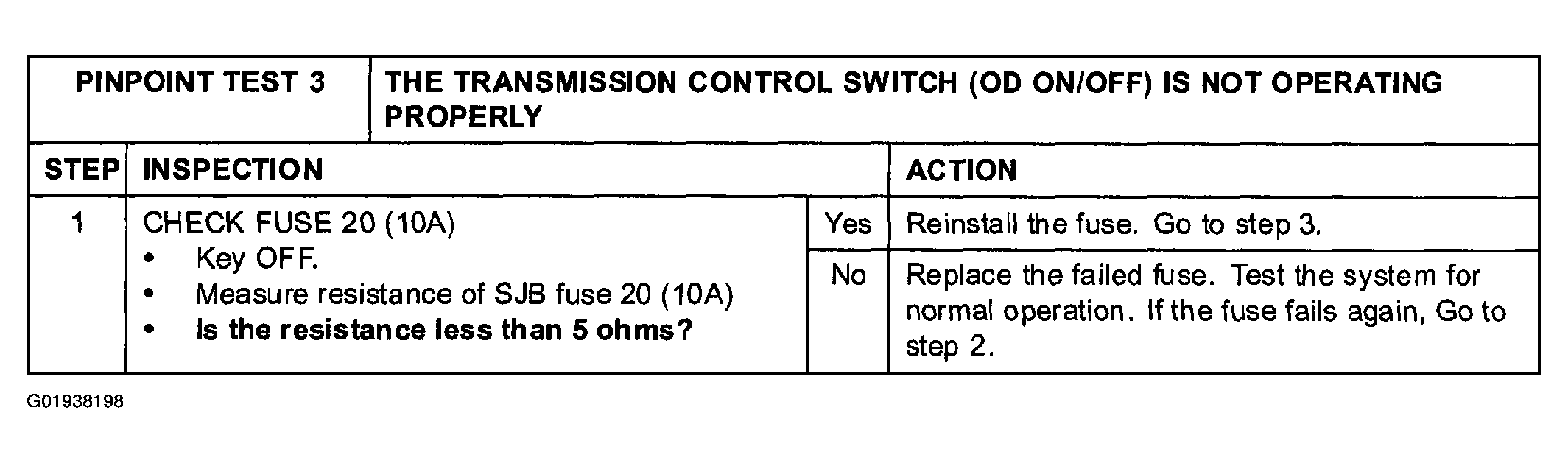

Fig 1: Automatic Transmission External Controls Pinpoint Test 3: The Transmission Control Switch (OD On/Off) Is Not Operating Properly (Step 1)

Courtesy of MAZDA MOTORS CORP.

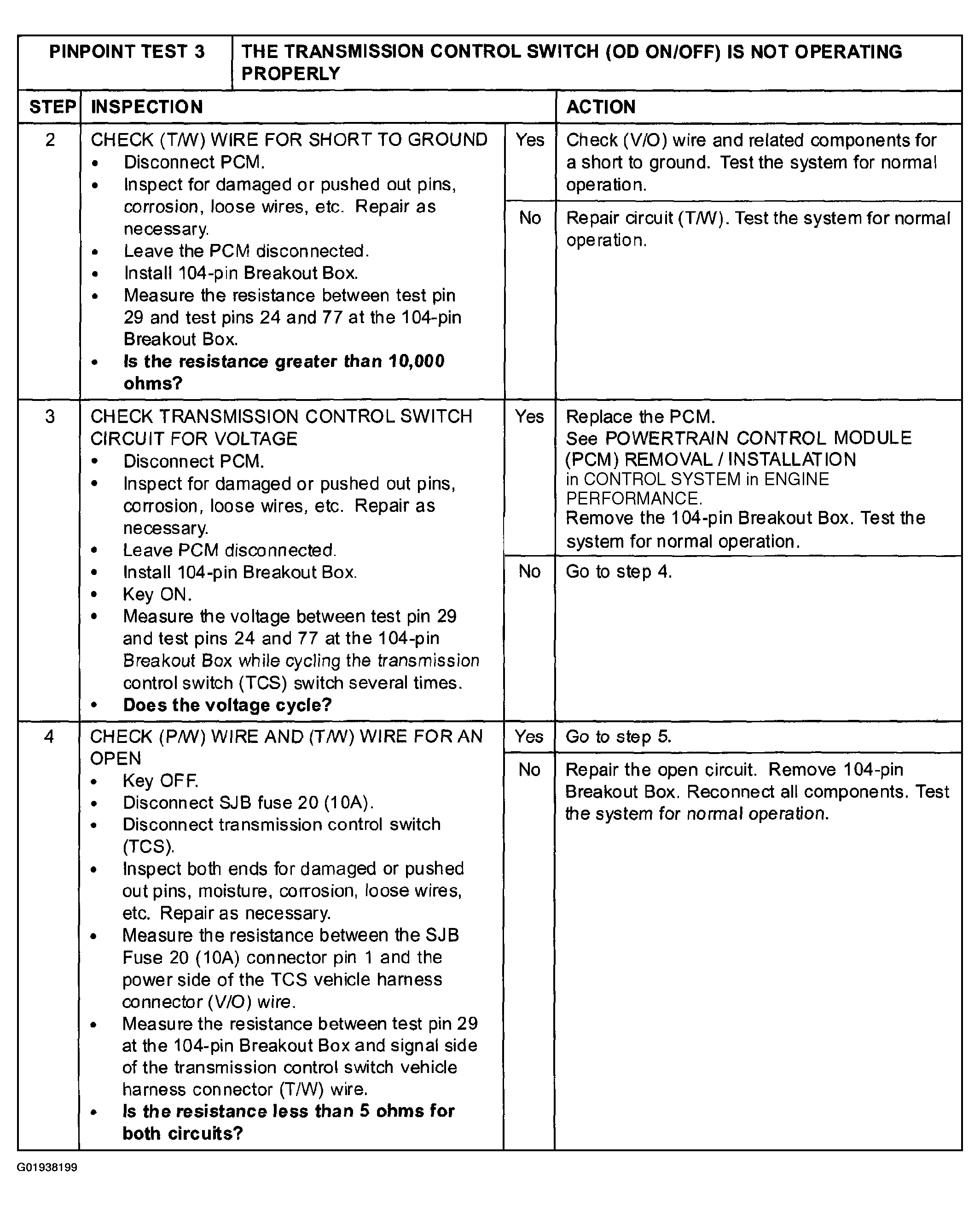

Fig 2: Automatic Transmission External Controls Pinpoint Test 3: The Transmission Control Switch (OD On/Off) Is Not Operating Properly (Steps 2-4)

Courtesy of MAZDA MOTORS CORP.

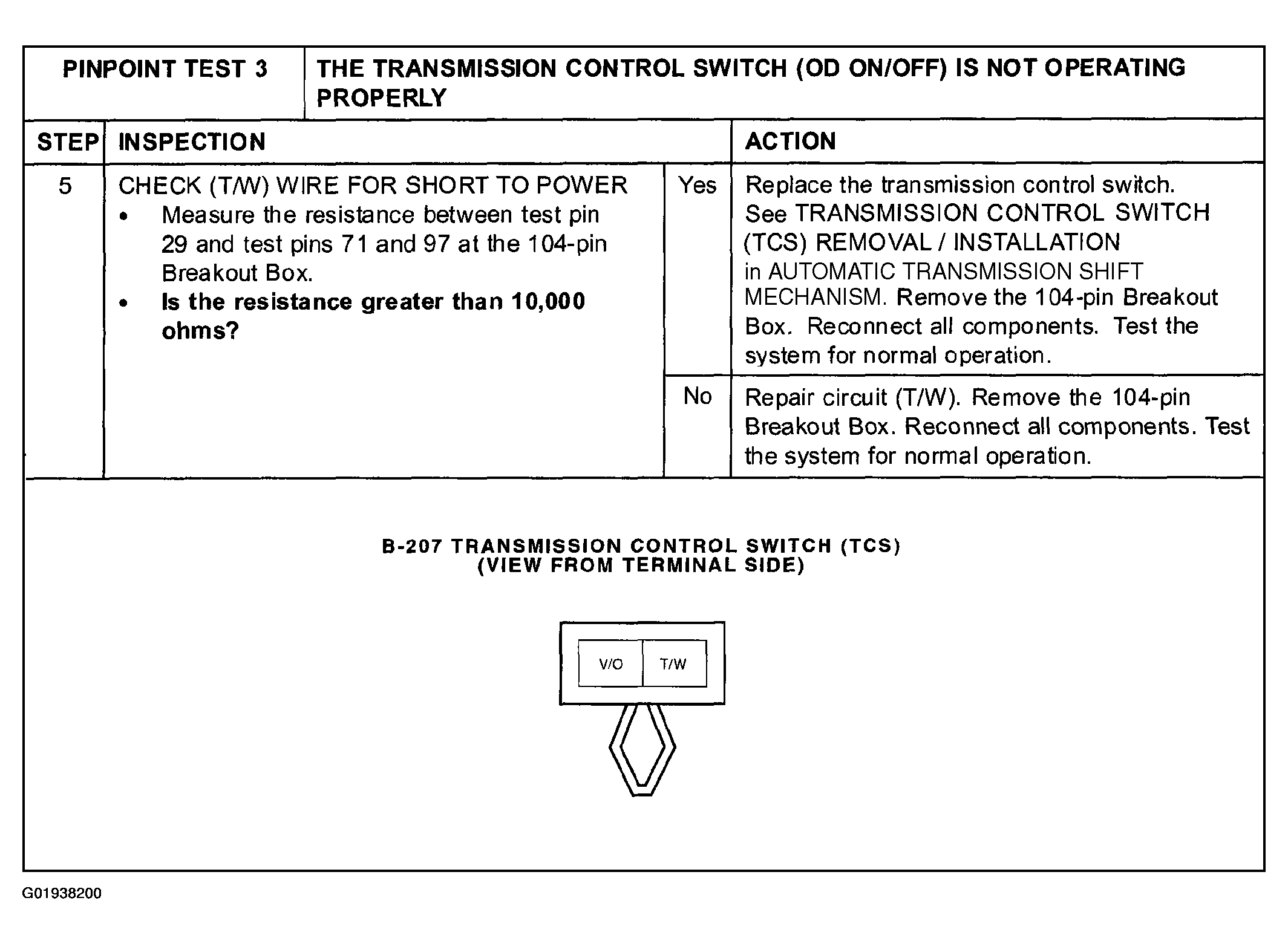

Fig 3: Automatic Transmission External Controls Pinpoint Test 3: The Transmission Control Switch (OD On/Off) Is Not Operating Properly (Step 5)

Courtesy of MAZDA MOTORS CORP.
