Disconnect Note

  1. Relieve the fuel pressure. See FUEL PRESSURE RELIEF  .
  2. Remove the fuel tube clip.

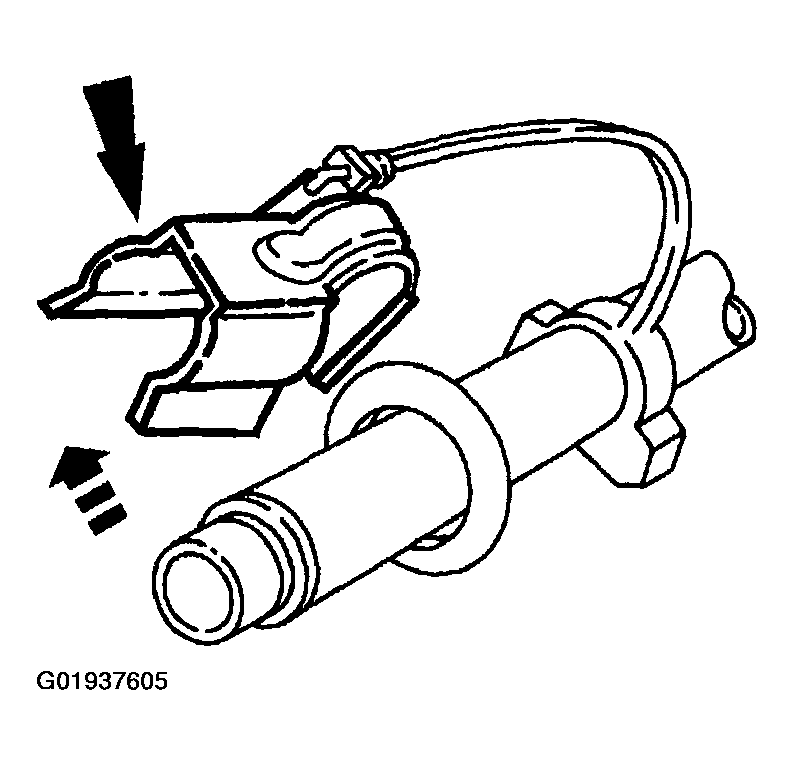

    Fig 1: Removing Fuel Tube Clip
    G01937605Courtesy of MAZDA MOTORS CORP.
  3. Install the appropriate Disconnect Tool SST 49 UN01 0510 or 49 UN01 0520 (310-D005) or equivalent.

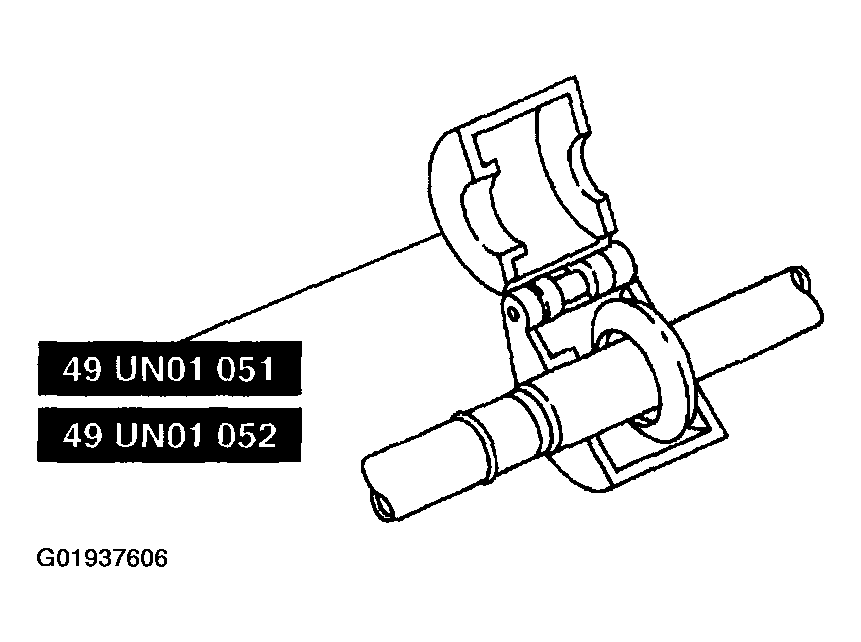

    Fig 2: Installing Appropriate Disconnect Tool
    G01937606Courtesy of MAZDA MOTORS CORP.
  4. Close and push Disconnect Tool SST 49 UN01 0510 or 49 UN10 0520 (310-D005) or equivalent into the open side of the cage.

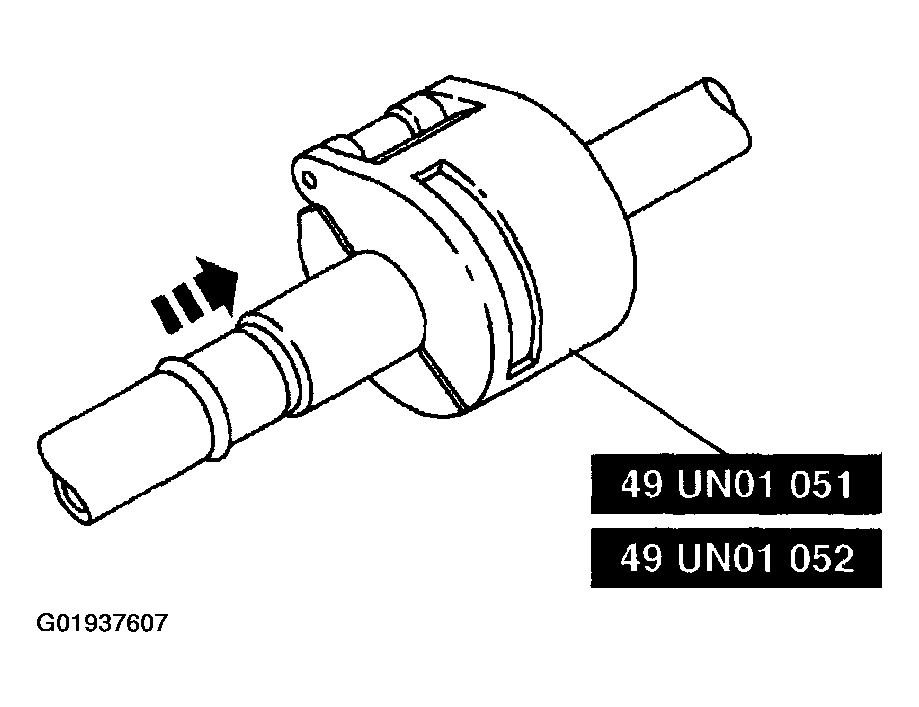

    Fig 3: Closing And Pushing Disconnect Tool Into Open Side Of Cage
    G01937607Courtesy of MAZDA MOTORS CORP.
  5. Separate the fitting.

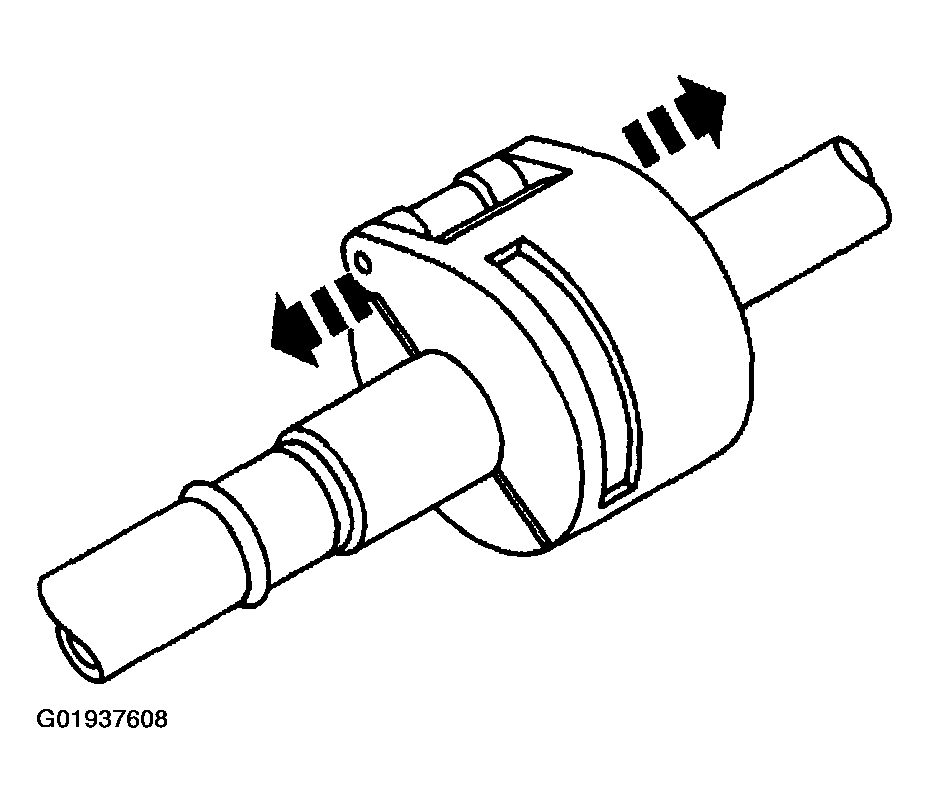

    Fig 4: Separating Fitting
    G01937608Courtesy of MAZDA MOTORS CORP.
  6. Remove Disconnect Tool SST 49 UN10 0510 or 49 UN01 0520.

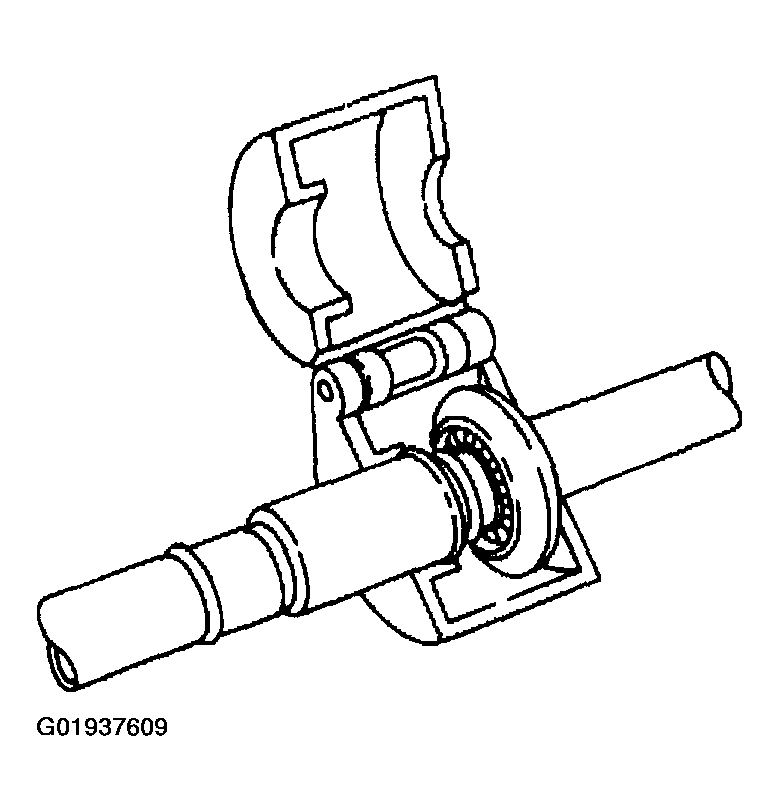

    Fig 5: Removing Disconnect Tool
    G01937609Courtesy of MAZDA MOTORS CORP.
