Home >> Mazda >> 2004 >> B2300 L4-2.3L VIN D >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Parking Brake System
April 5, 2026: LEMON Manuals is launched! Read the announcement.

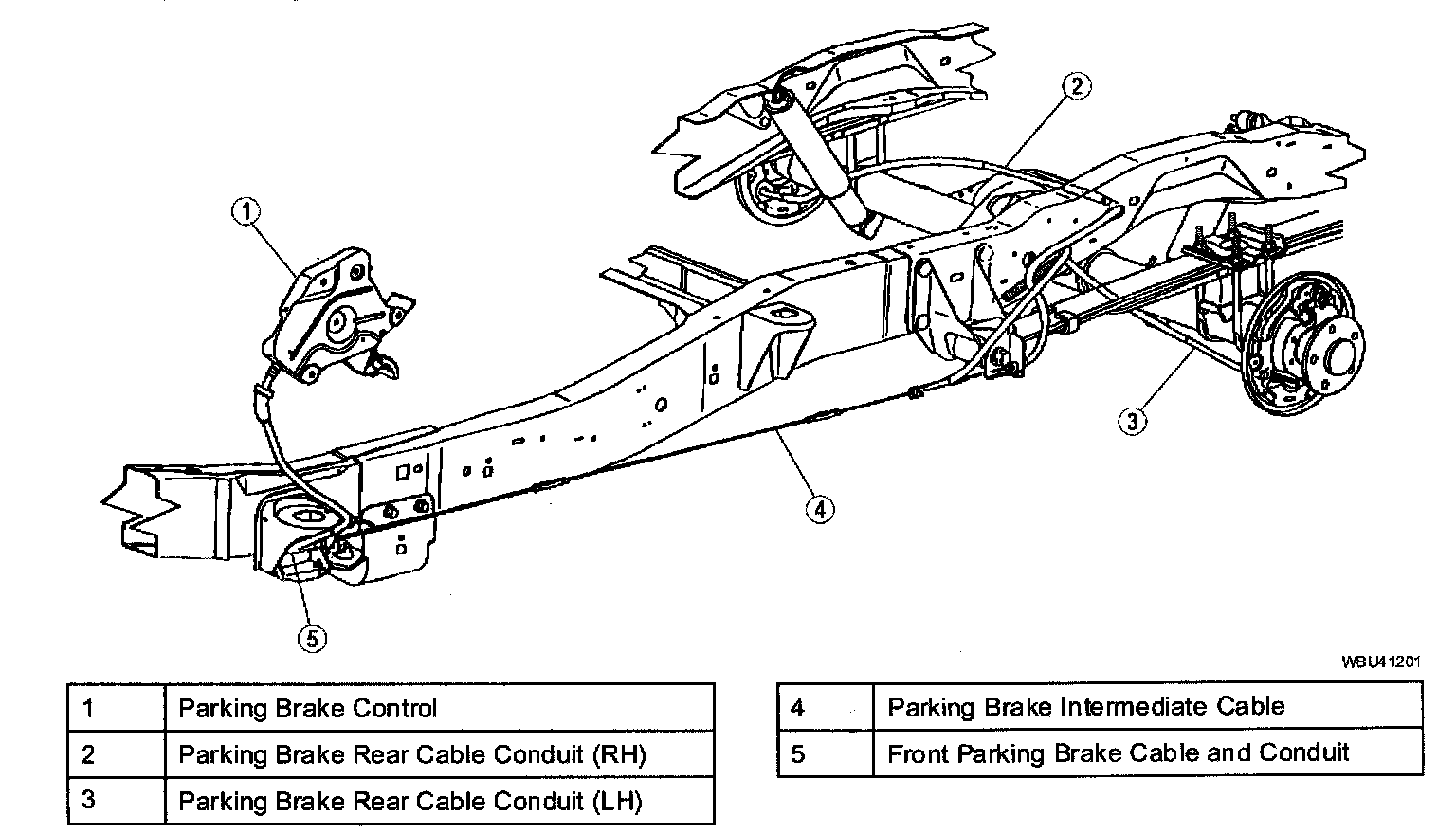

Parking Brake System
