Test 4: Intermittent

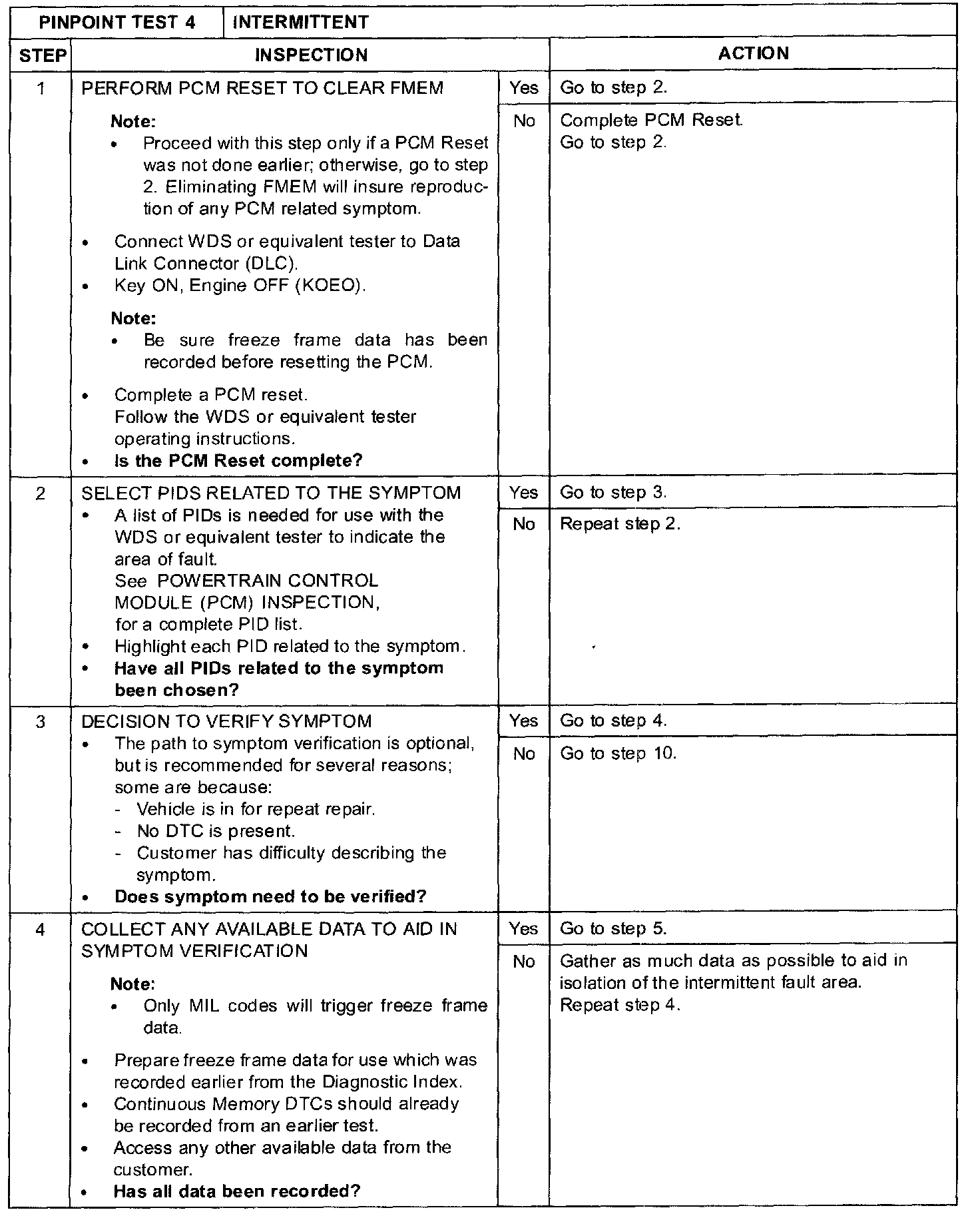

Step 1 - 4:

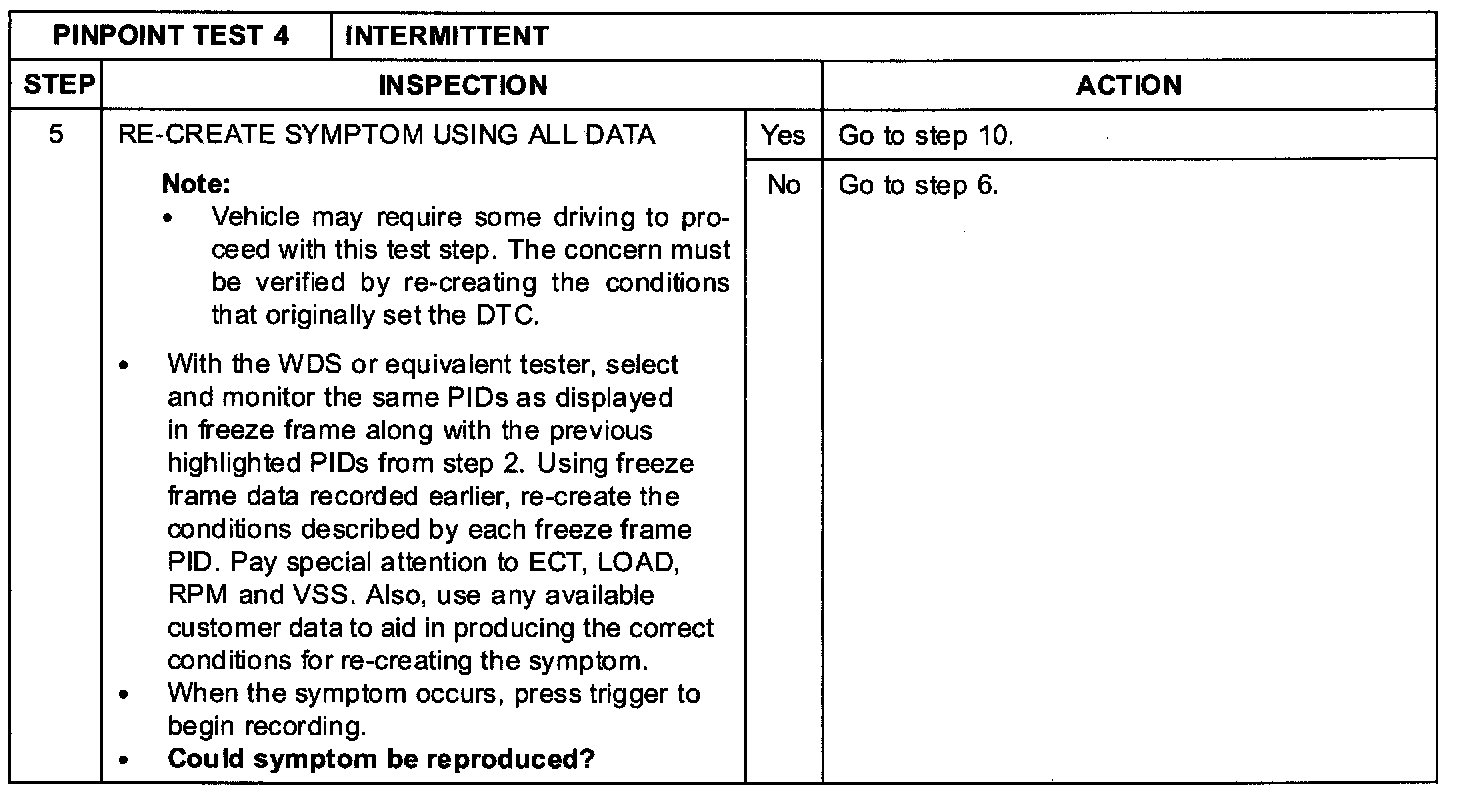

Step 5:

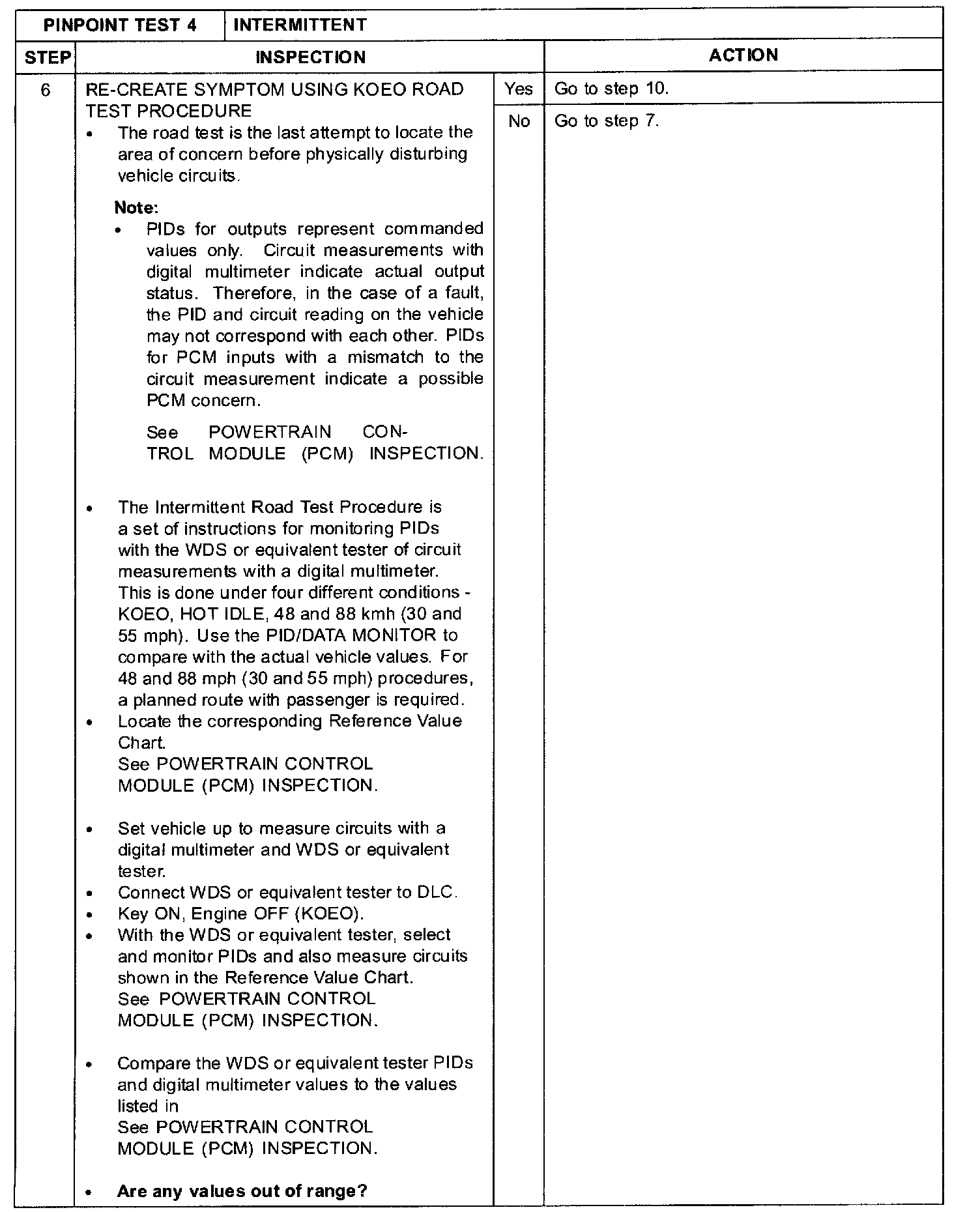

Step 6:

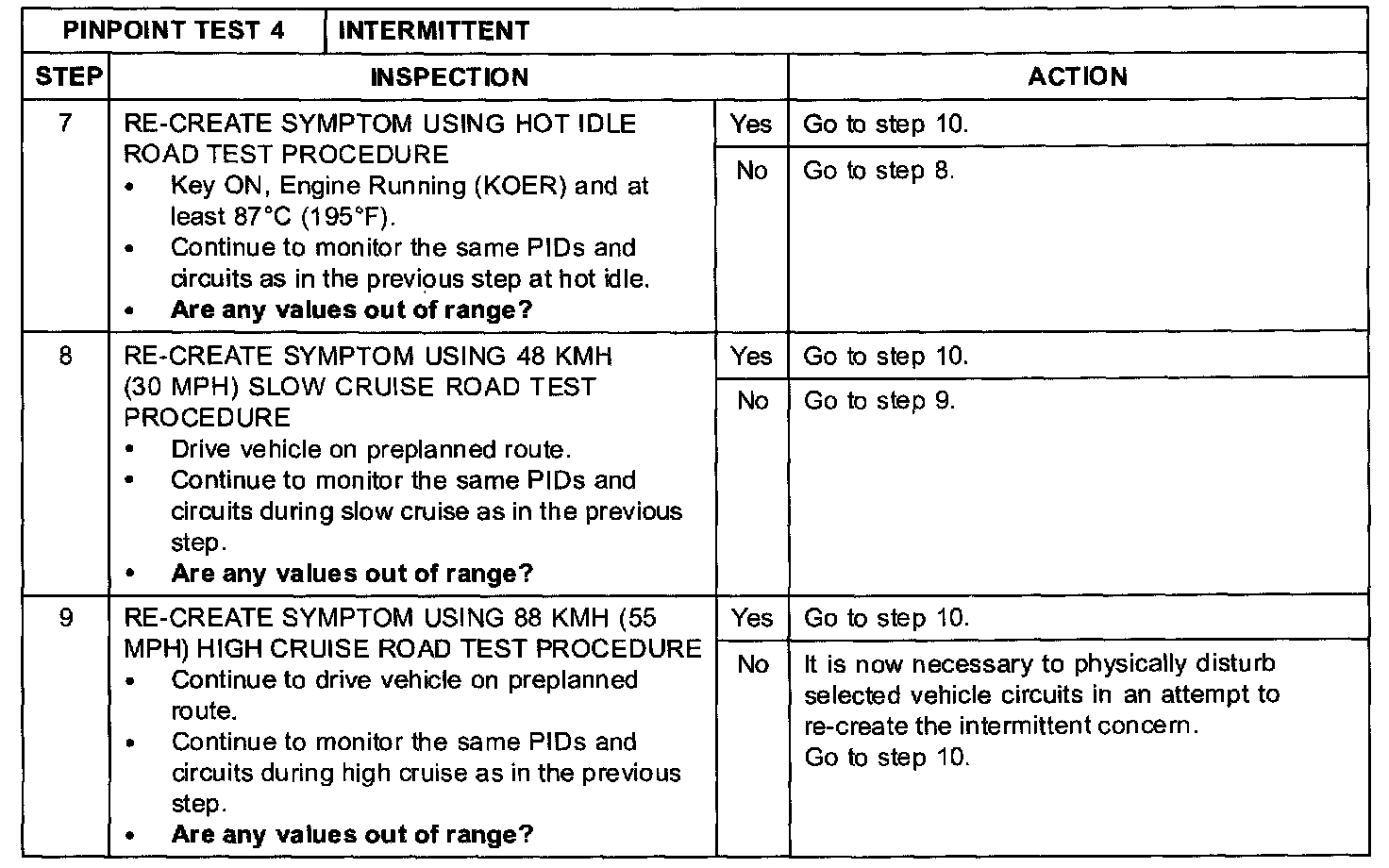

Step 7 - 9:

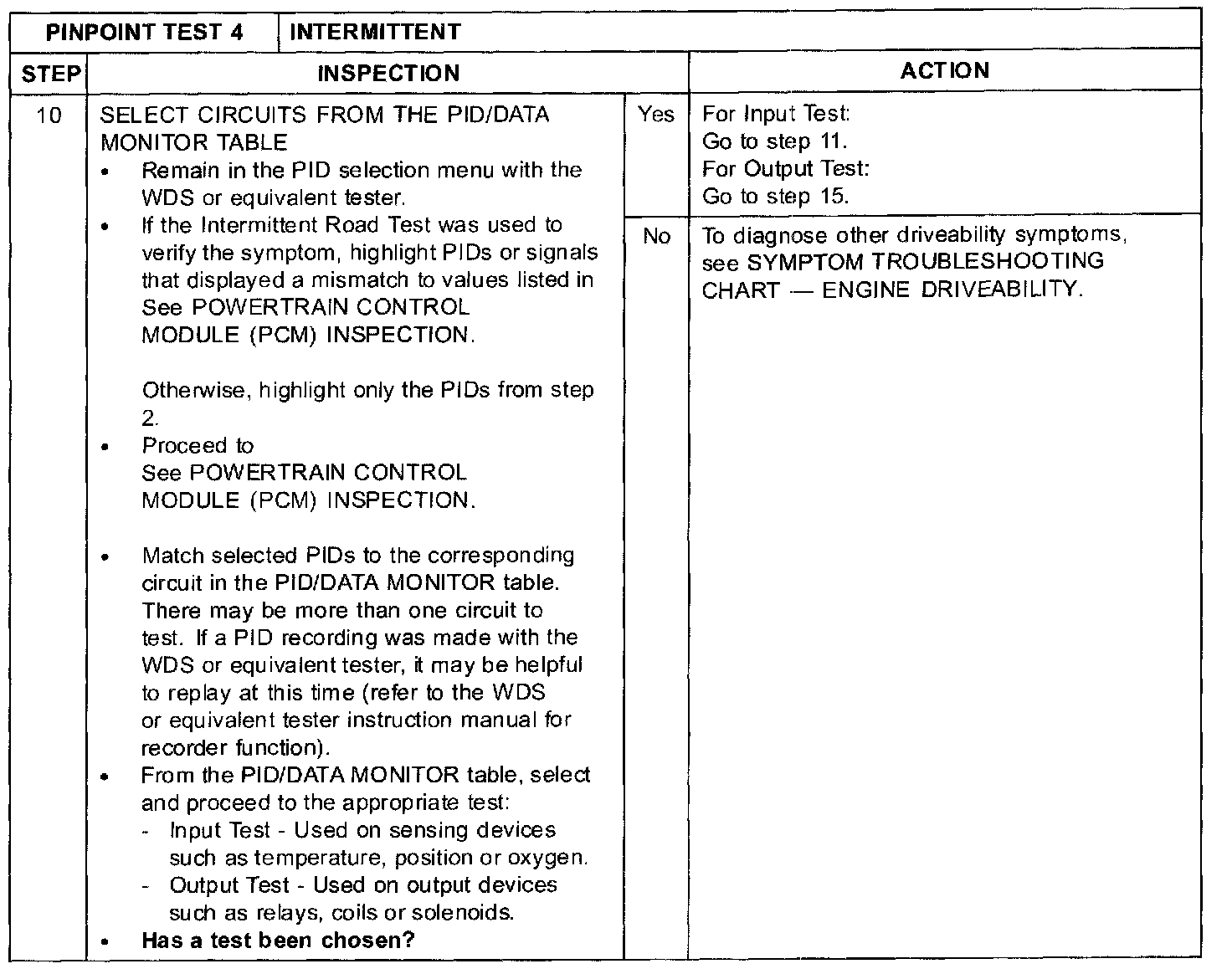

Step 10:

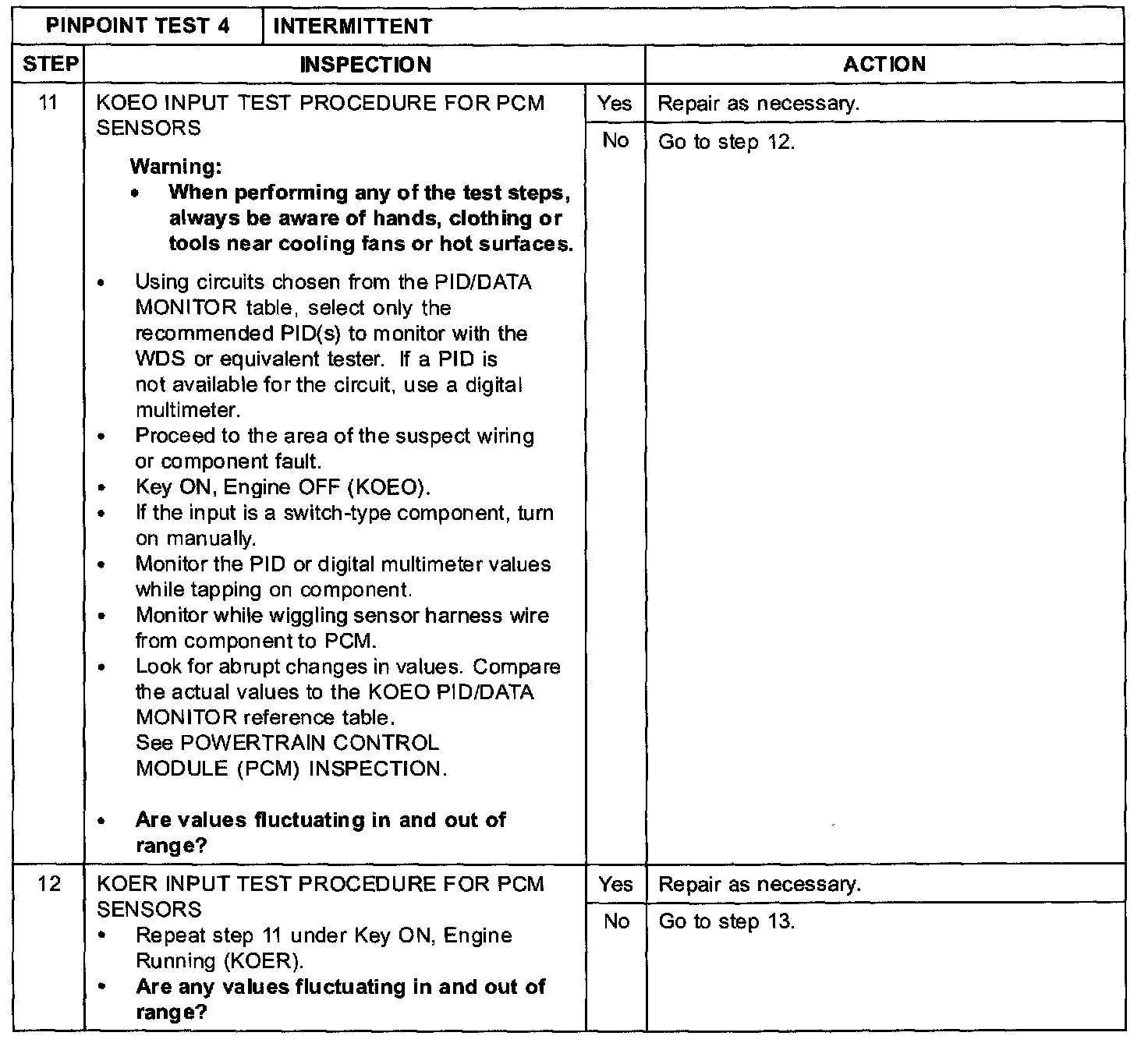

Step 11 - 12:

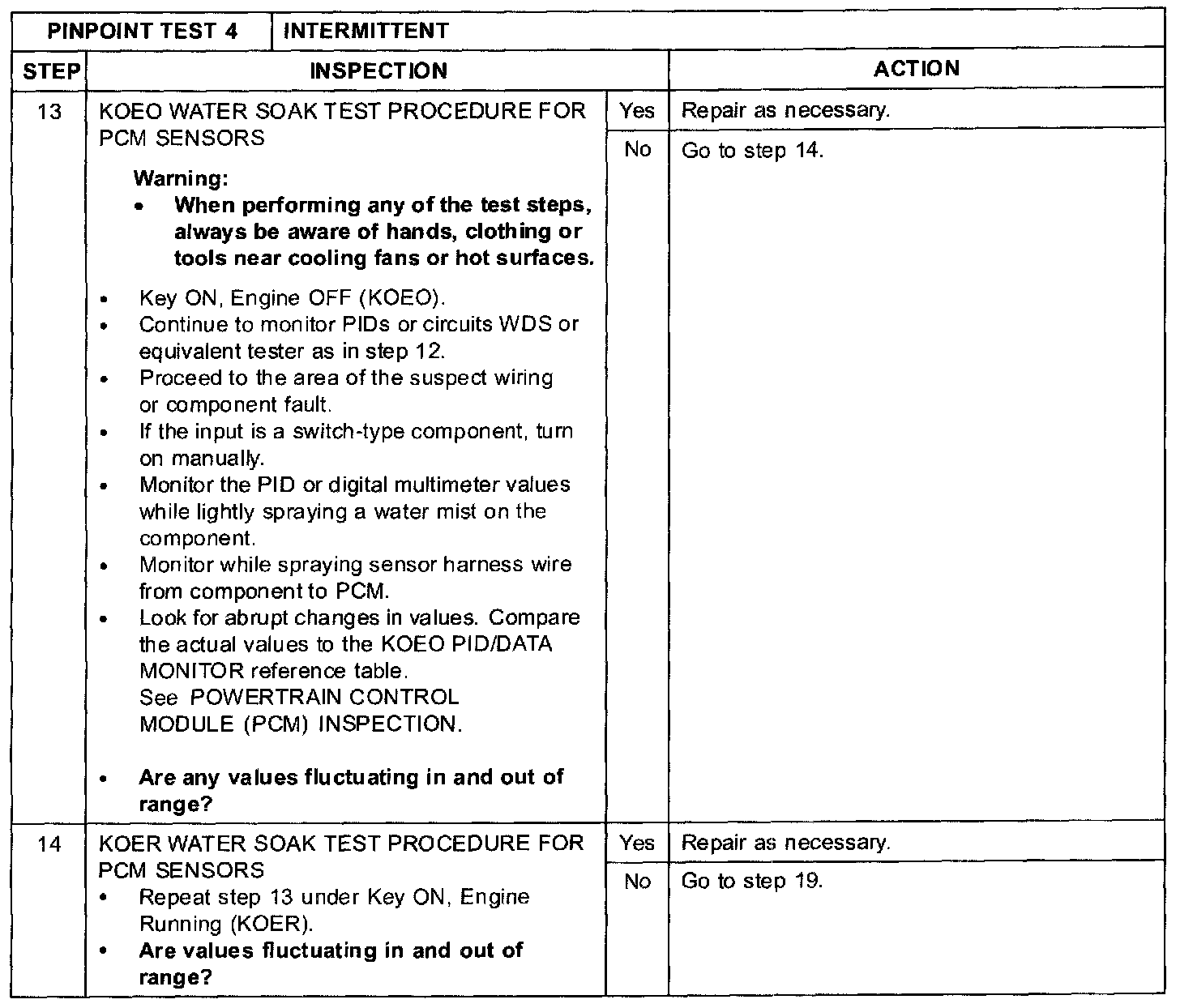

Step 13 - 14:

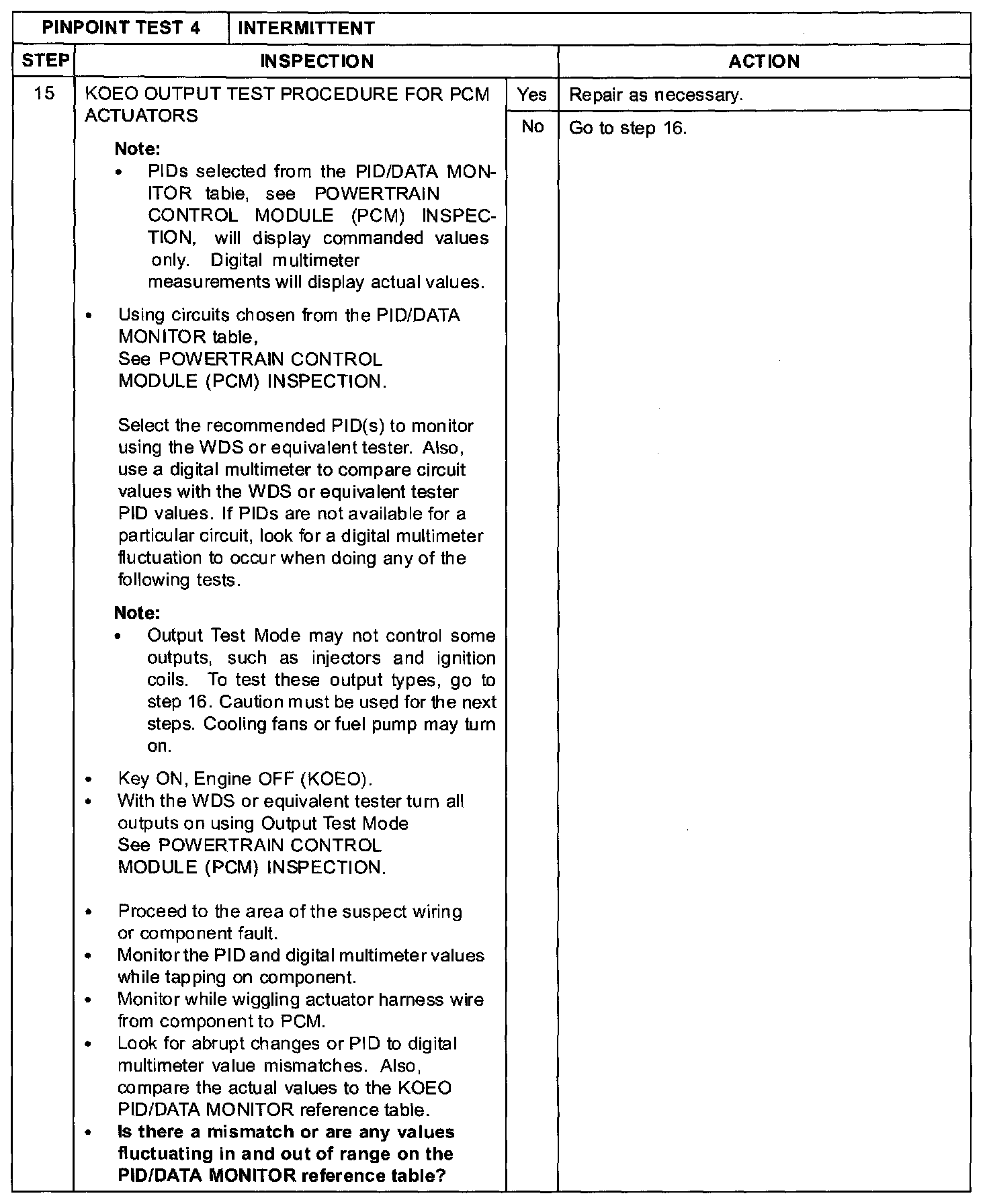

Step 15:

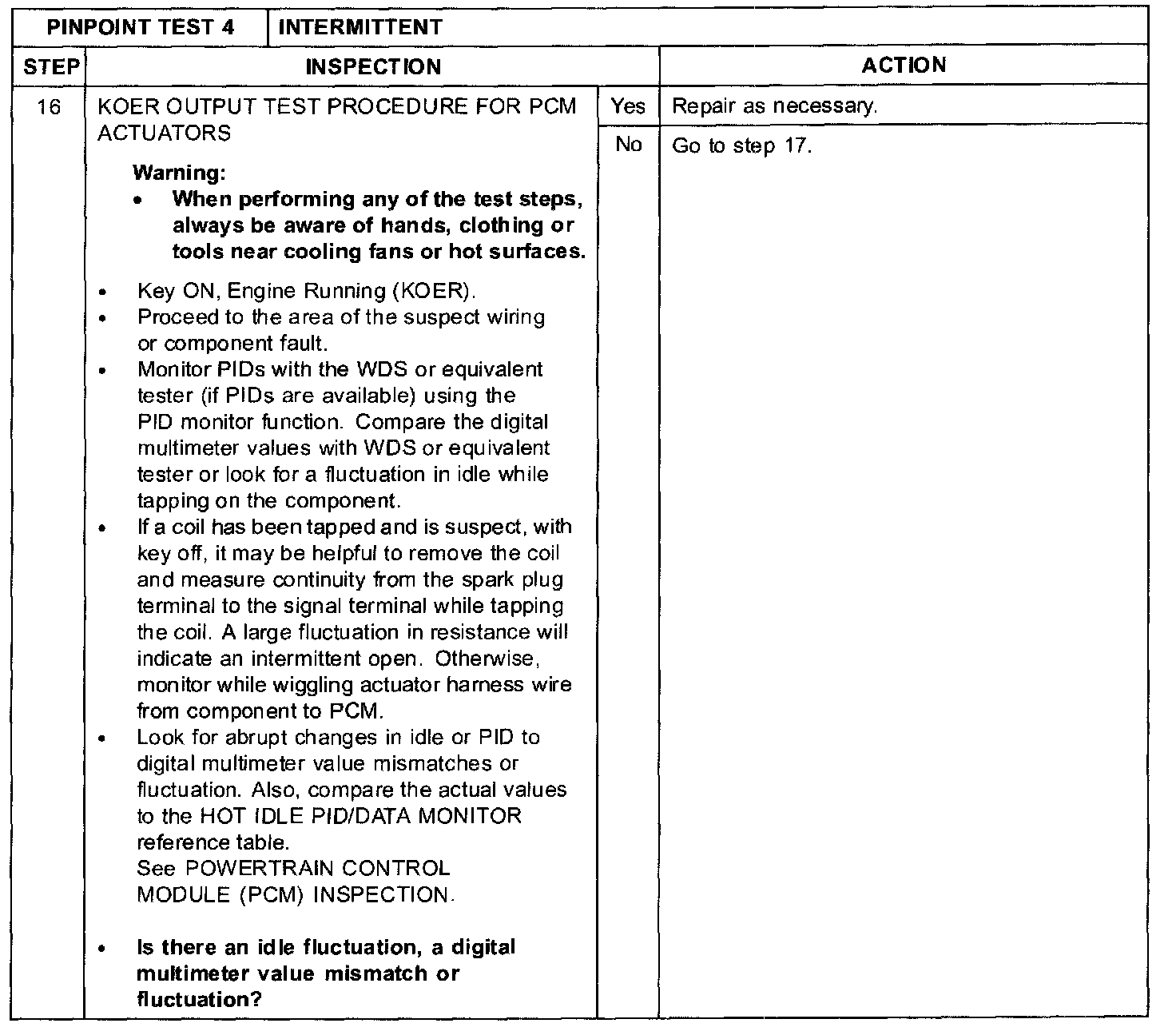

Step 16:

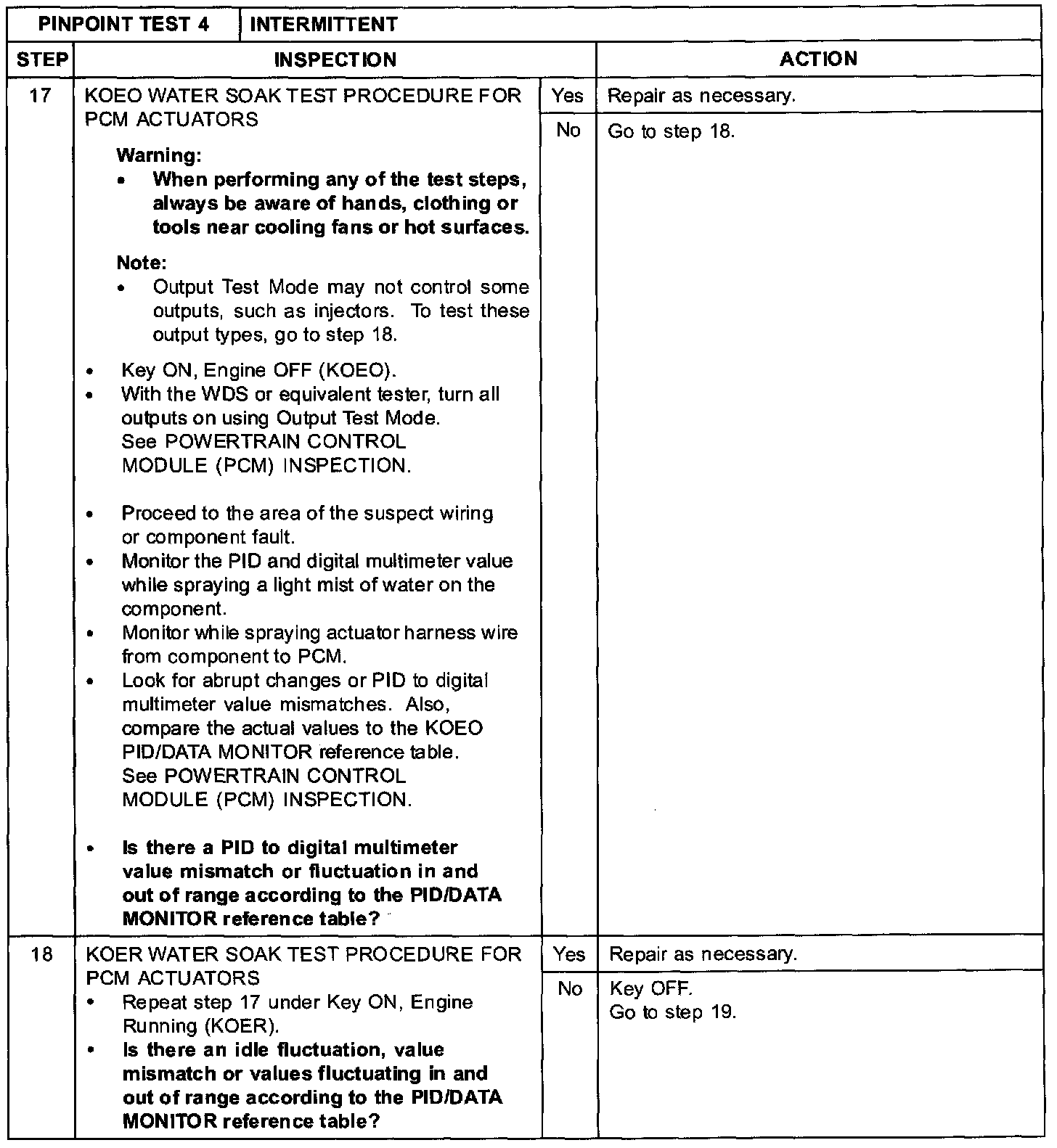

Step 17 - 18:

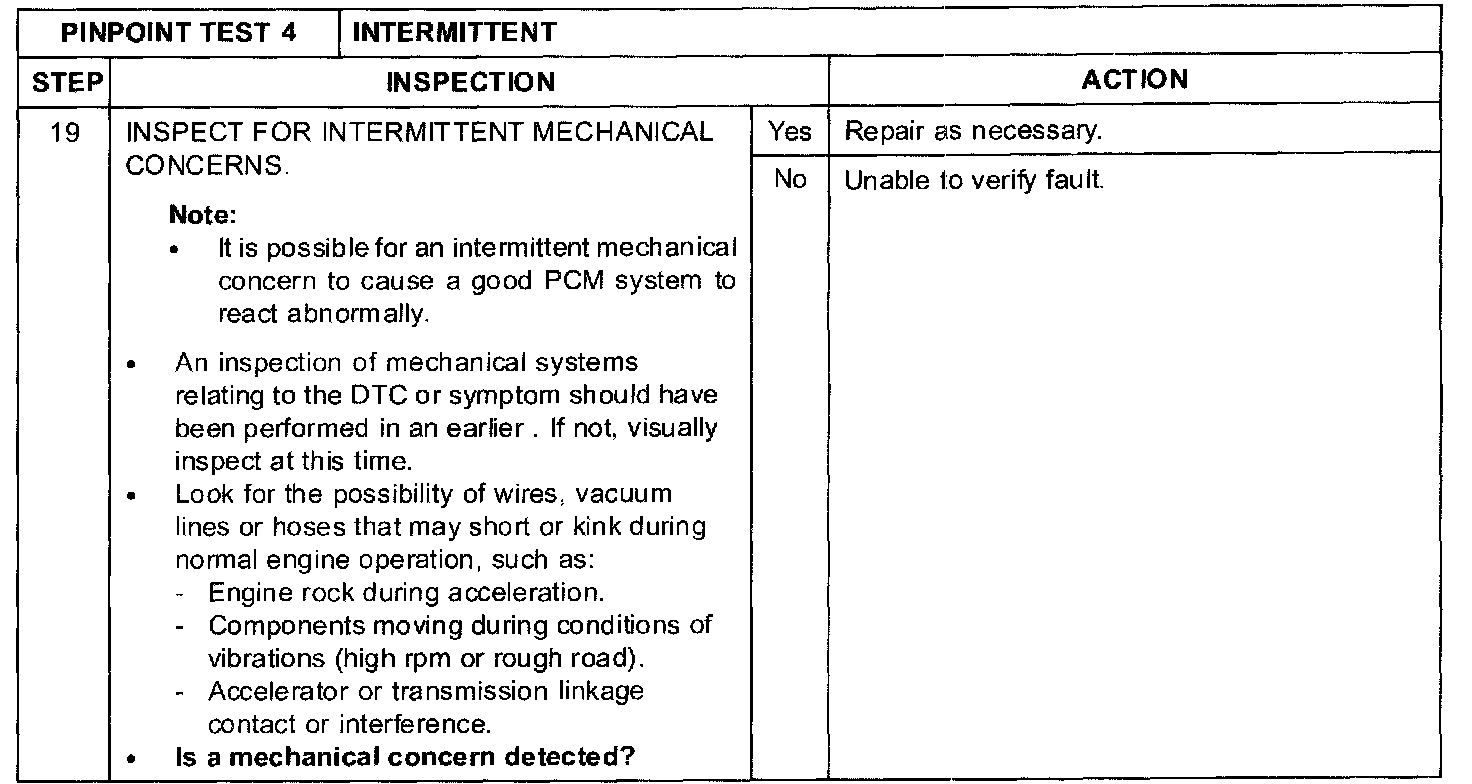

Step 19:

GENERAL PINPOINT TEST 4: INTERMITTENT

WARNING: When performing any of the test steps, always be aware of hands, clothing or tools near cooling fans or hot surfaces.
