Oil Pan, Engine

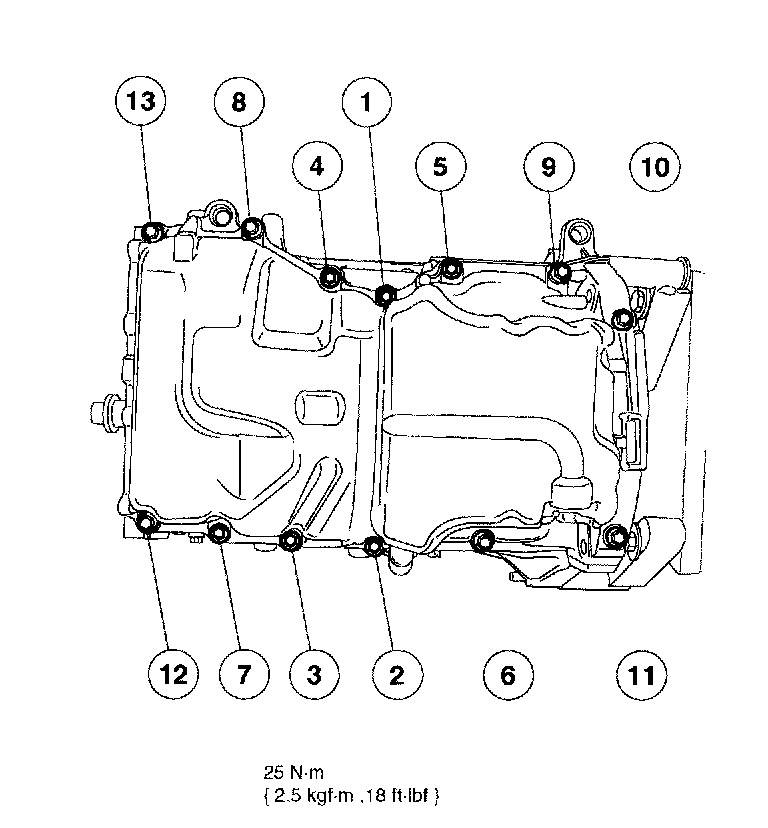

Oil pan sequence





Apply a 2.5 mm bead of silicone gasket and sealant to the oil pan. Install the oil pan. Tighten the bolts in the sequence shown.
