Module Does Not Respond To The Diagnostic Tool - Smart Junction Box (SJB)

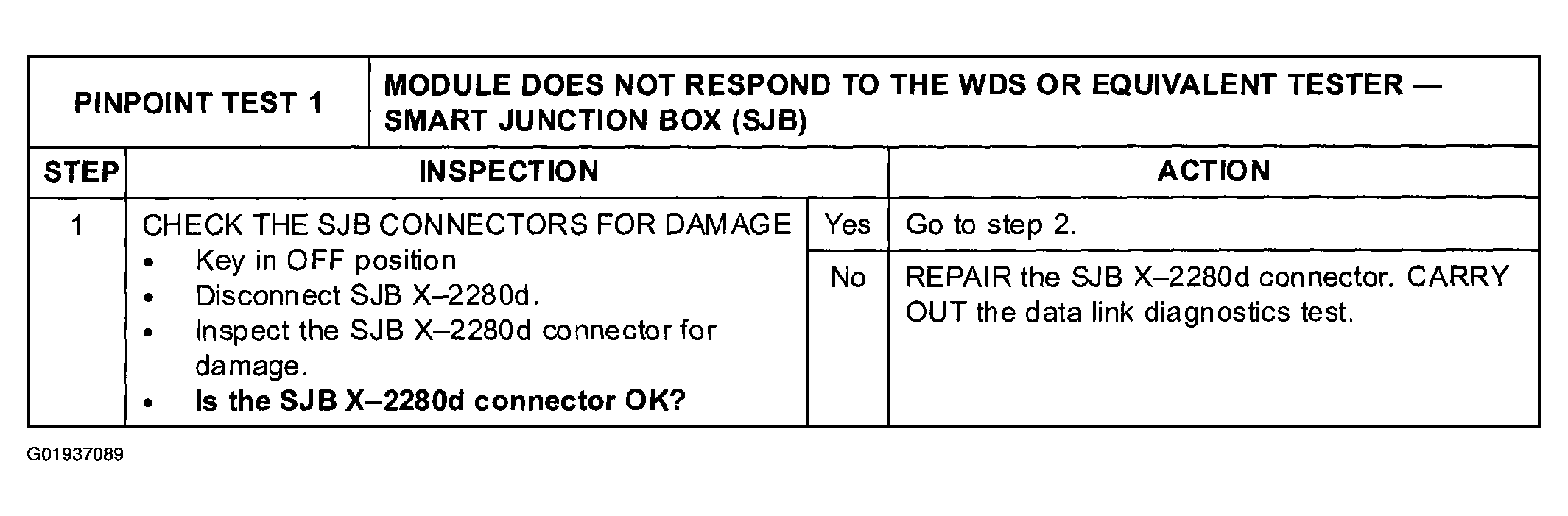

Fig 1: Pinpoint Test 1: Module Does Not Respond To Diagnostic Tool - Smart Junction Box Table (Step 1)

Courtesy of MAZDA MOTORS CORP.

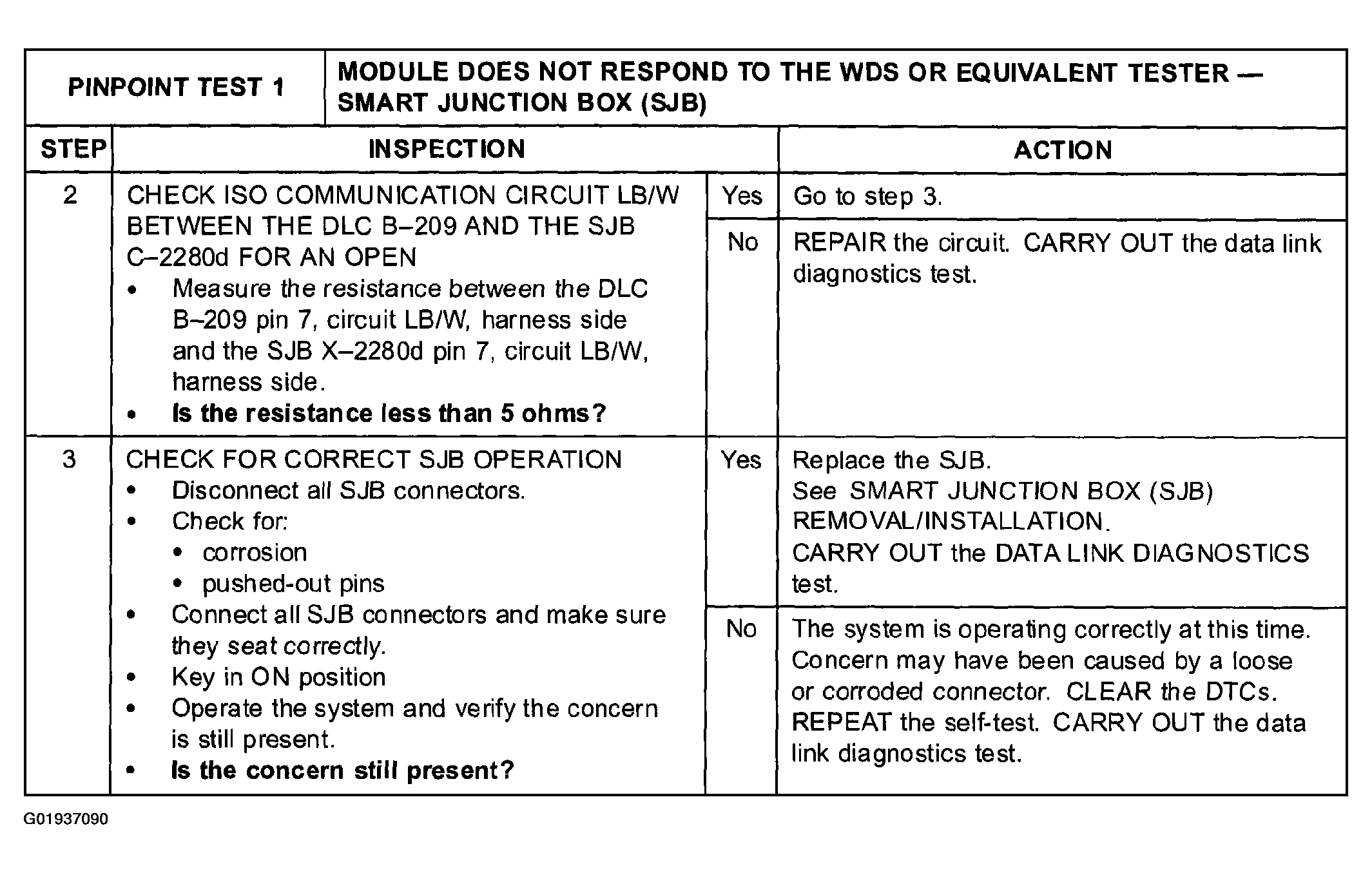

Fig 2: Pinpoint Test 1: Module Does Not Respond To Diagnostic Tool - Smart Junction Box Table (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

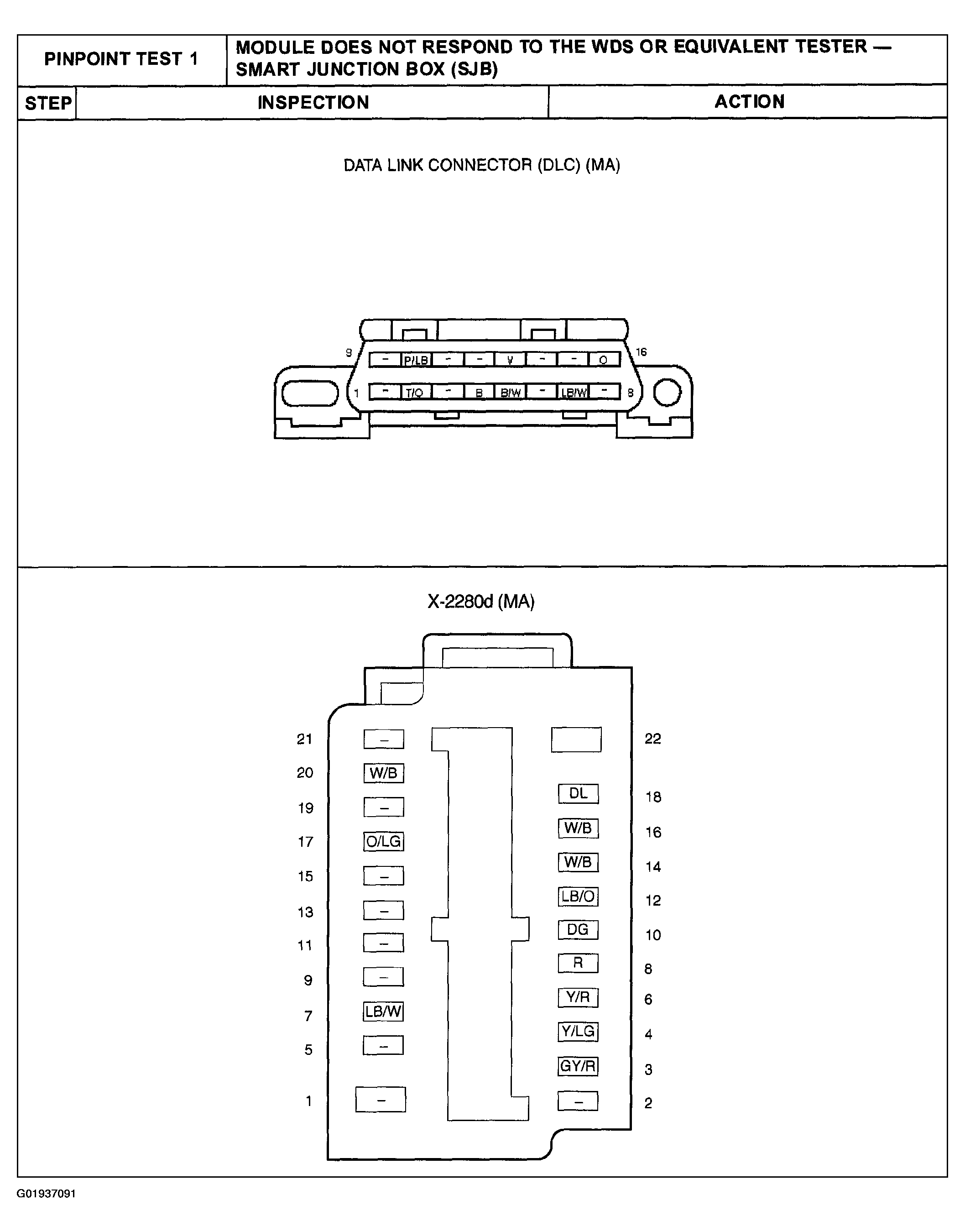

Fig 3: Identifying Data Link Connector And X-2280d (MA) Terminal Wire Color

Courtesy of MAZDA MOTORS CORP.
