Instrument Panel Removal/Installation: Notes

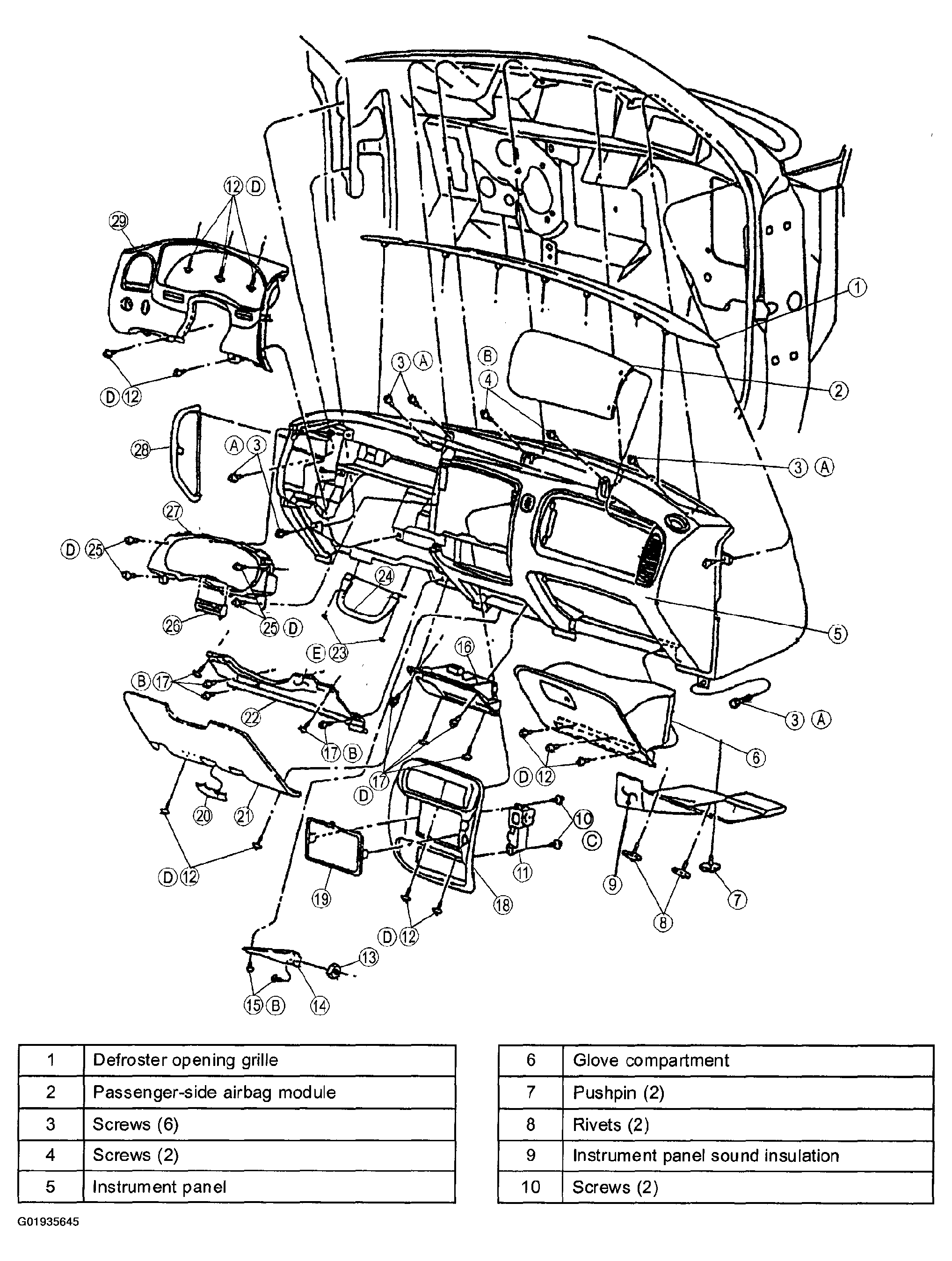

Fig 1: Removing/Installing Instrument Panel
G01935645Courtesy of MAZDA MOTORS CORP.

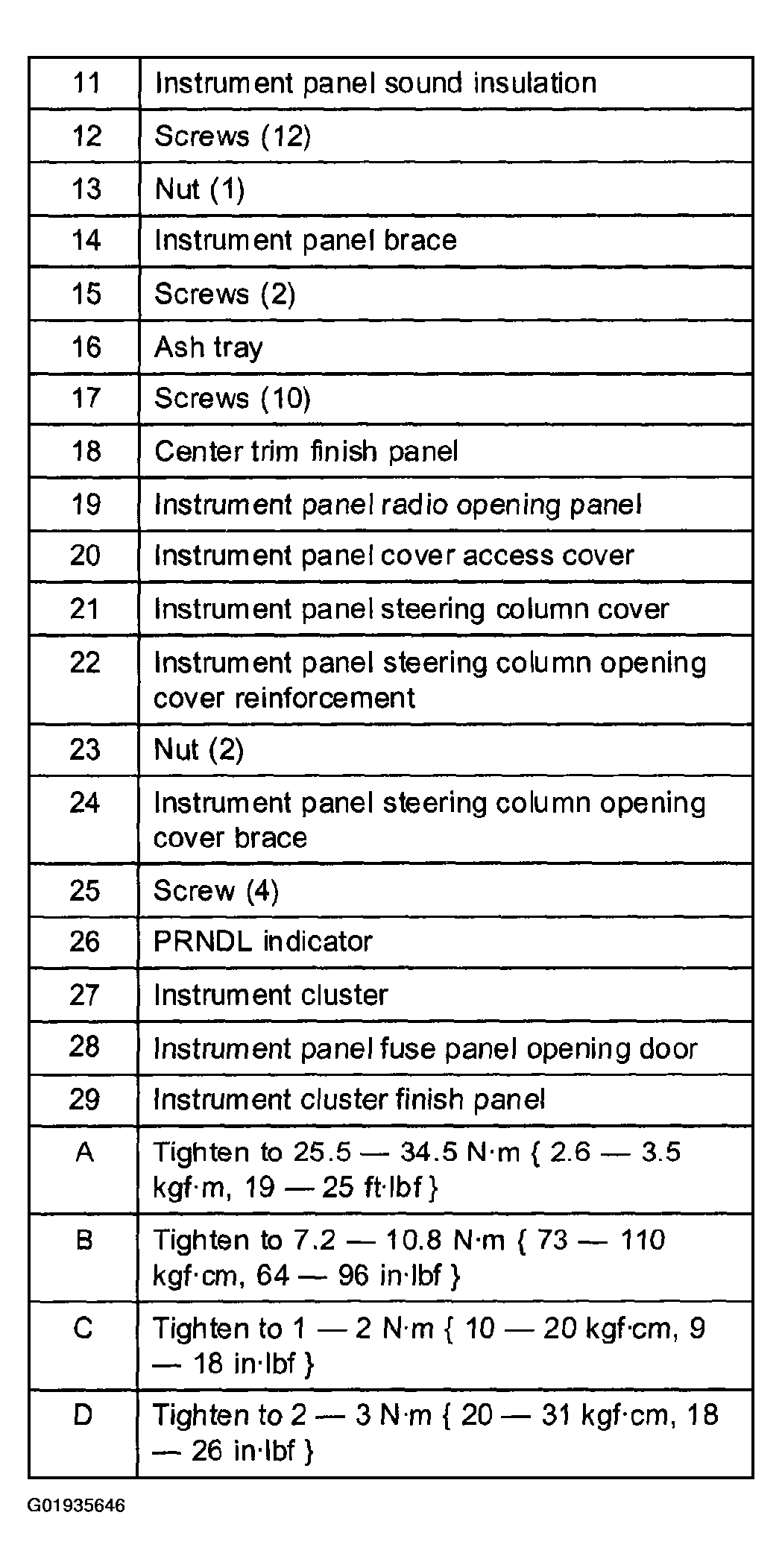

Fig 2: Instrument Panel Components (Continued)
G01935646Courtesy of MAZDA MOTORS CORP.
