Special Tools -Engine

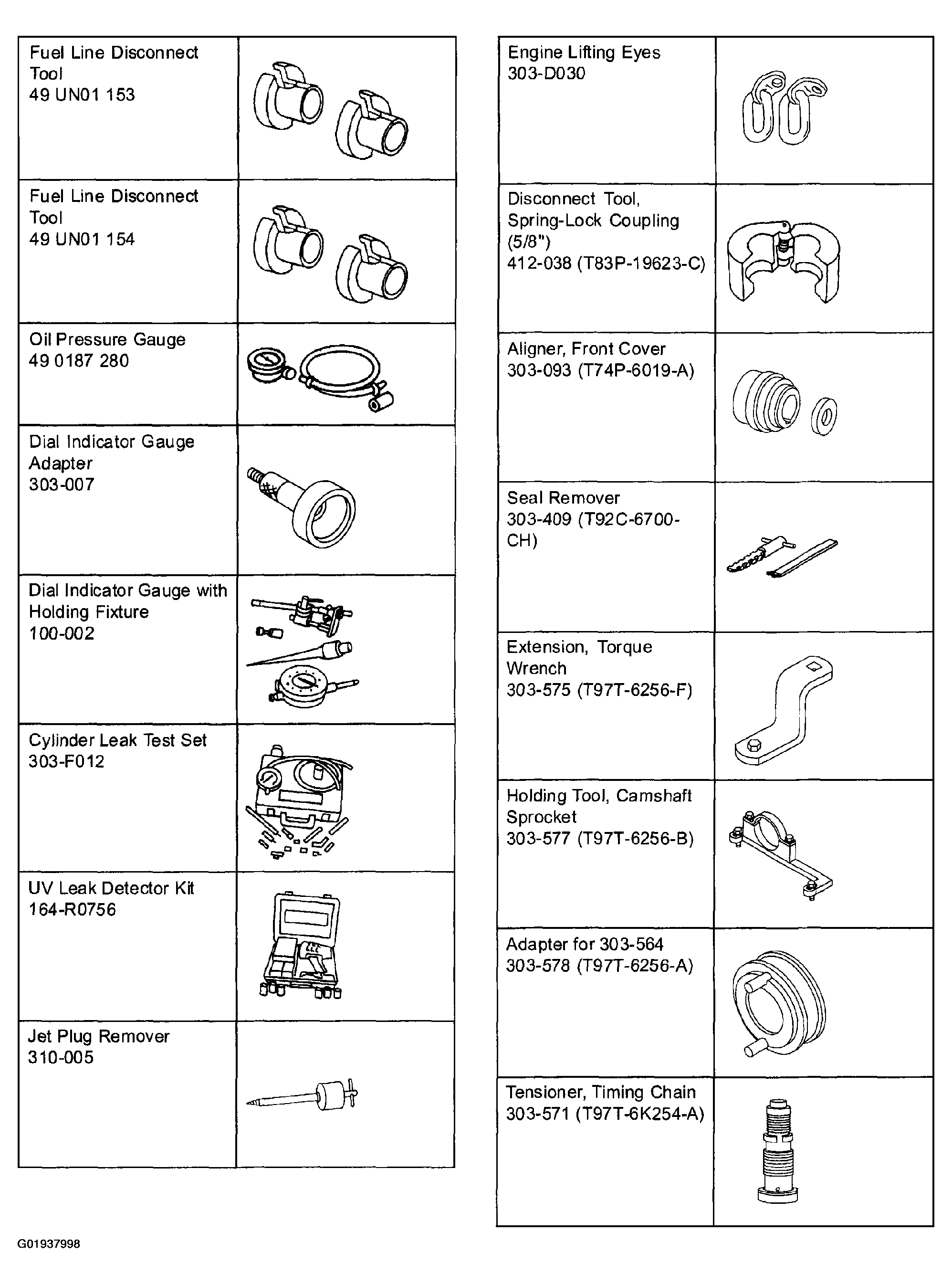

Fig 1: Special Tools -Engine (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

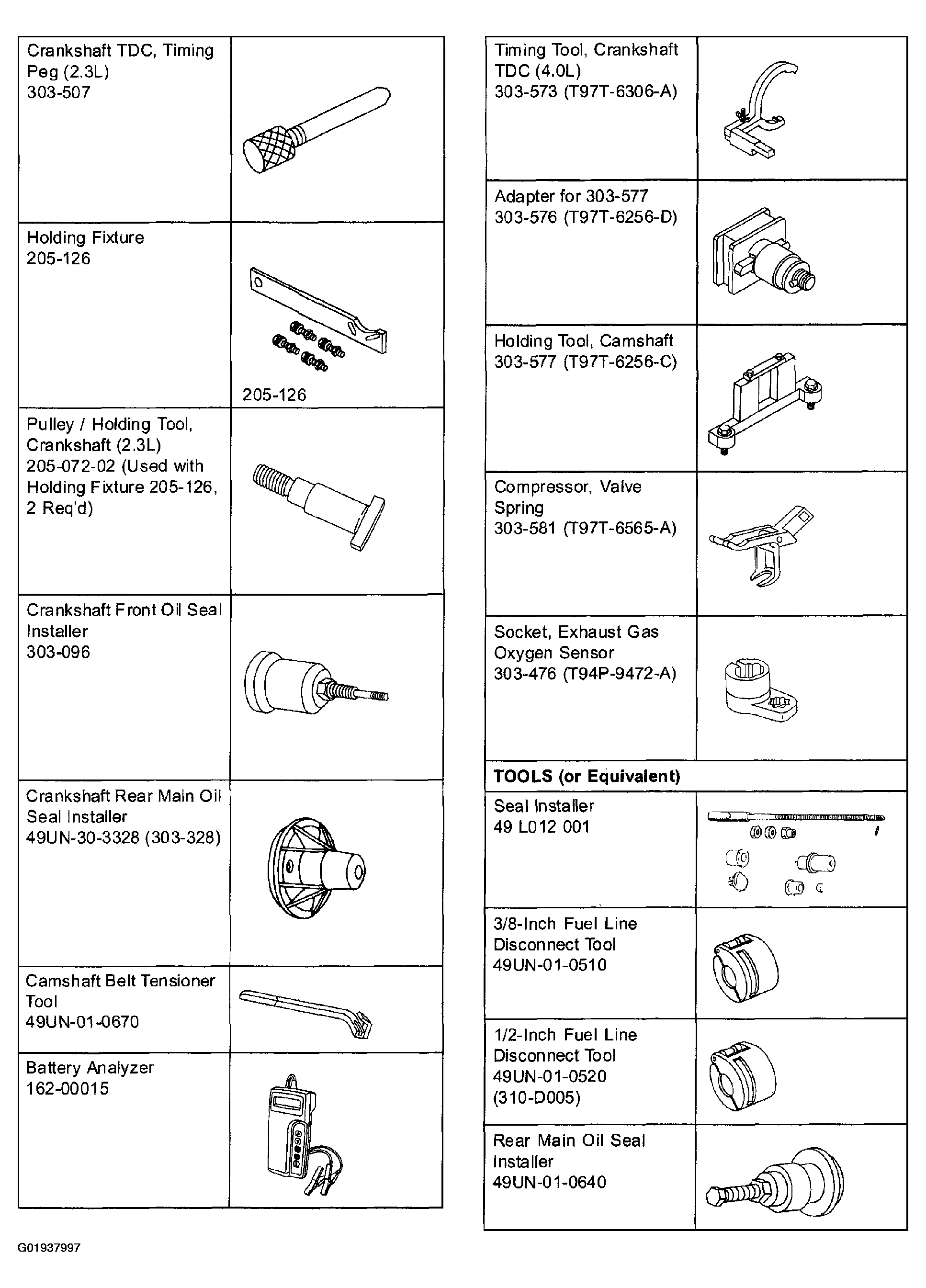

Fig 2: Special Tools -Engine (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

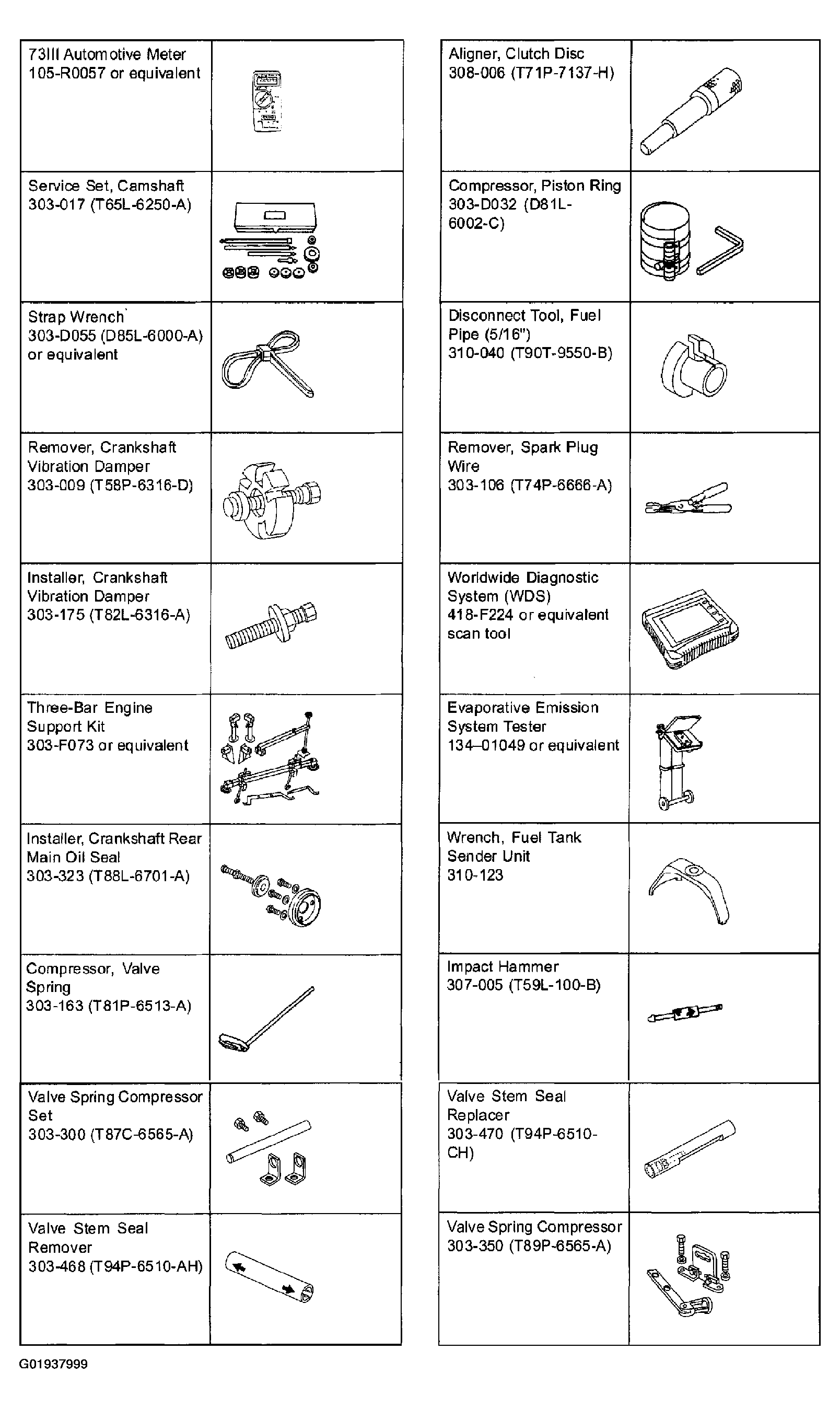

Fig 3: Special Tools -Engine (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

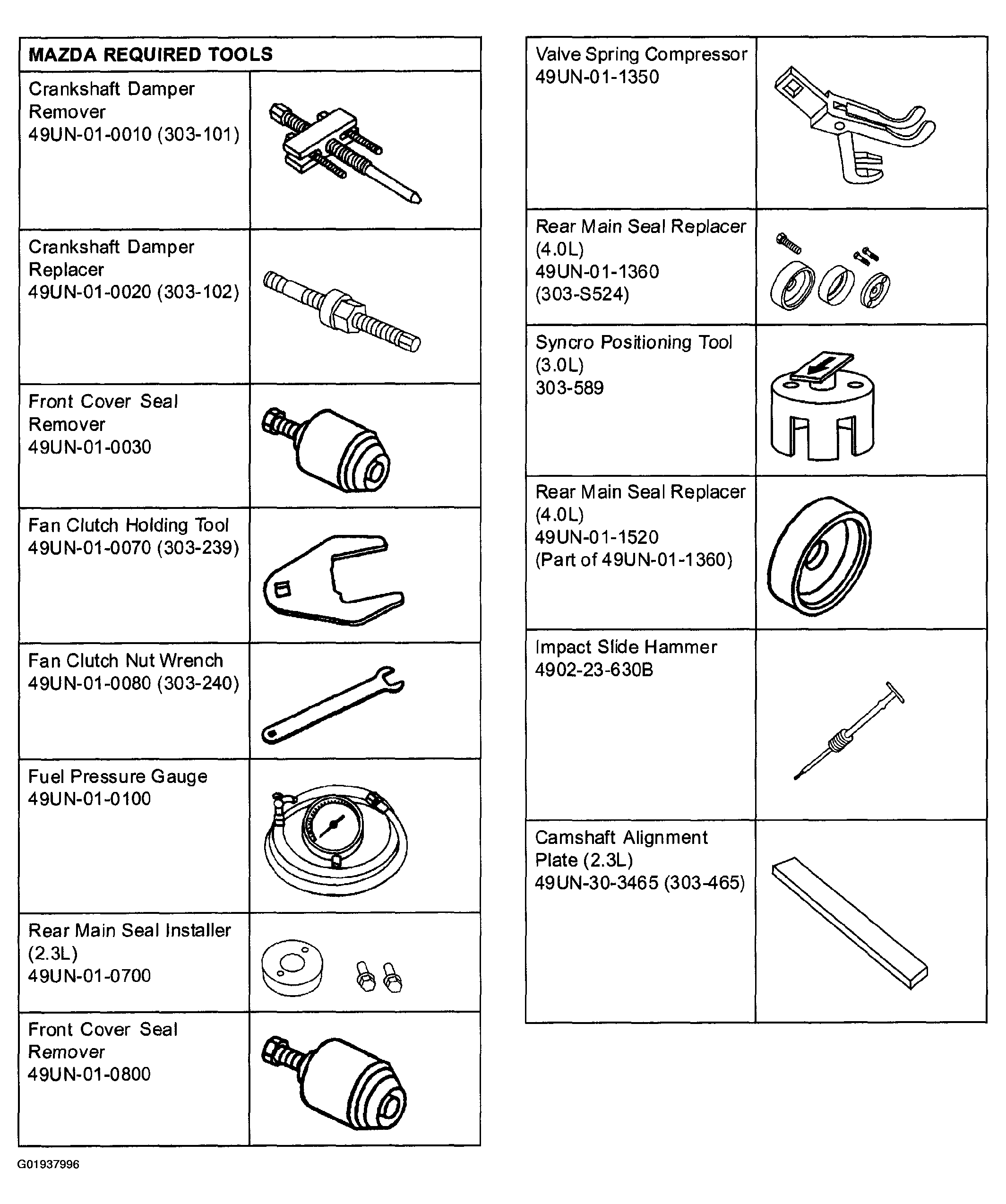

Fig 4: Special Tools -Engine (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
