Pinpoint Test 10: Fuel Line Pressure/Fuel Pressure Hold Inspection

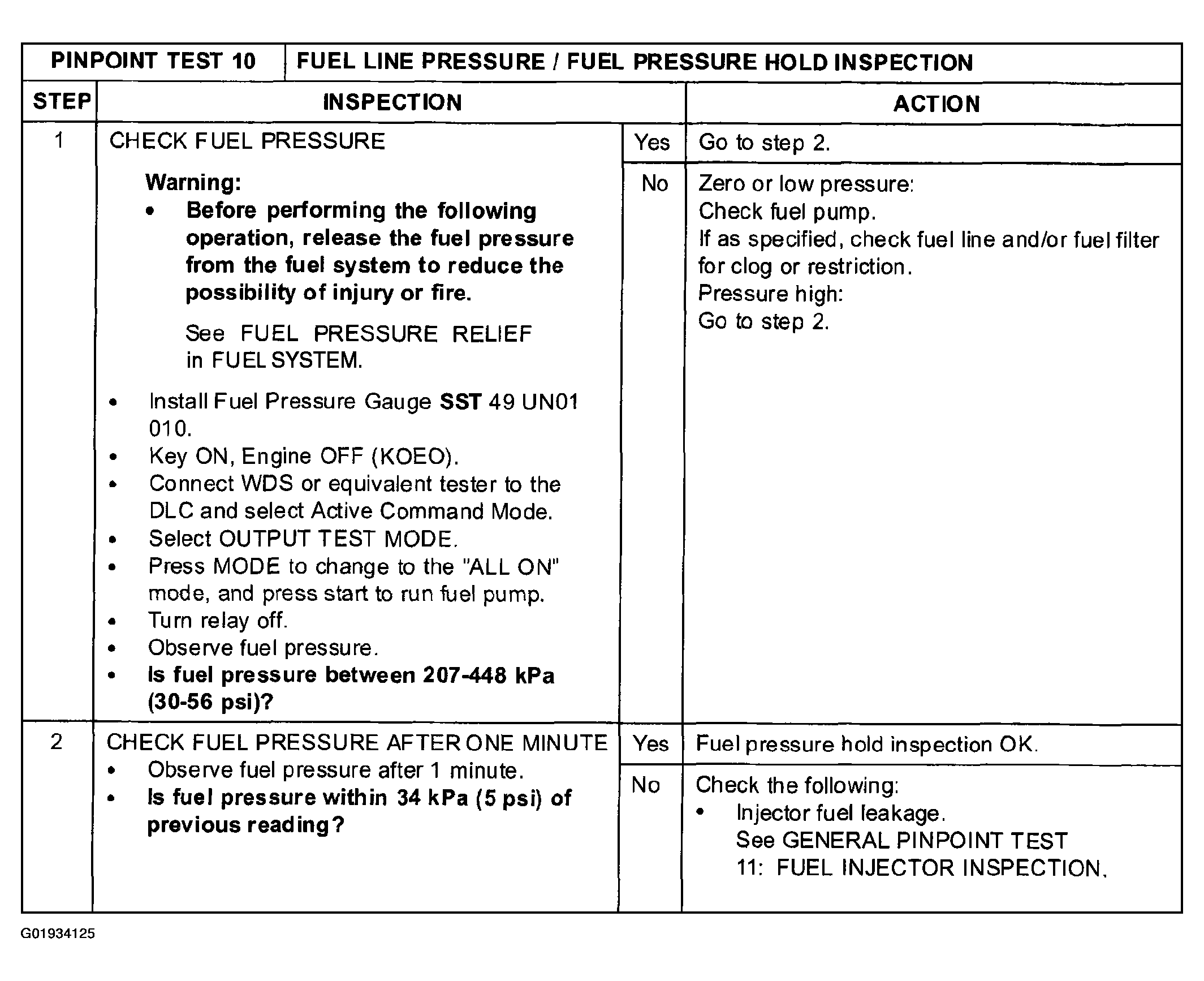

Fig 1: Pinpoint Test 10: Fuel Line Pressure/Fuel Pressure Hold Inspection
G01934125Courtesy of MAZDA MOTORS CORP.
