DTC P0461: EVAP System Malfunction

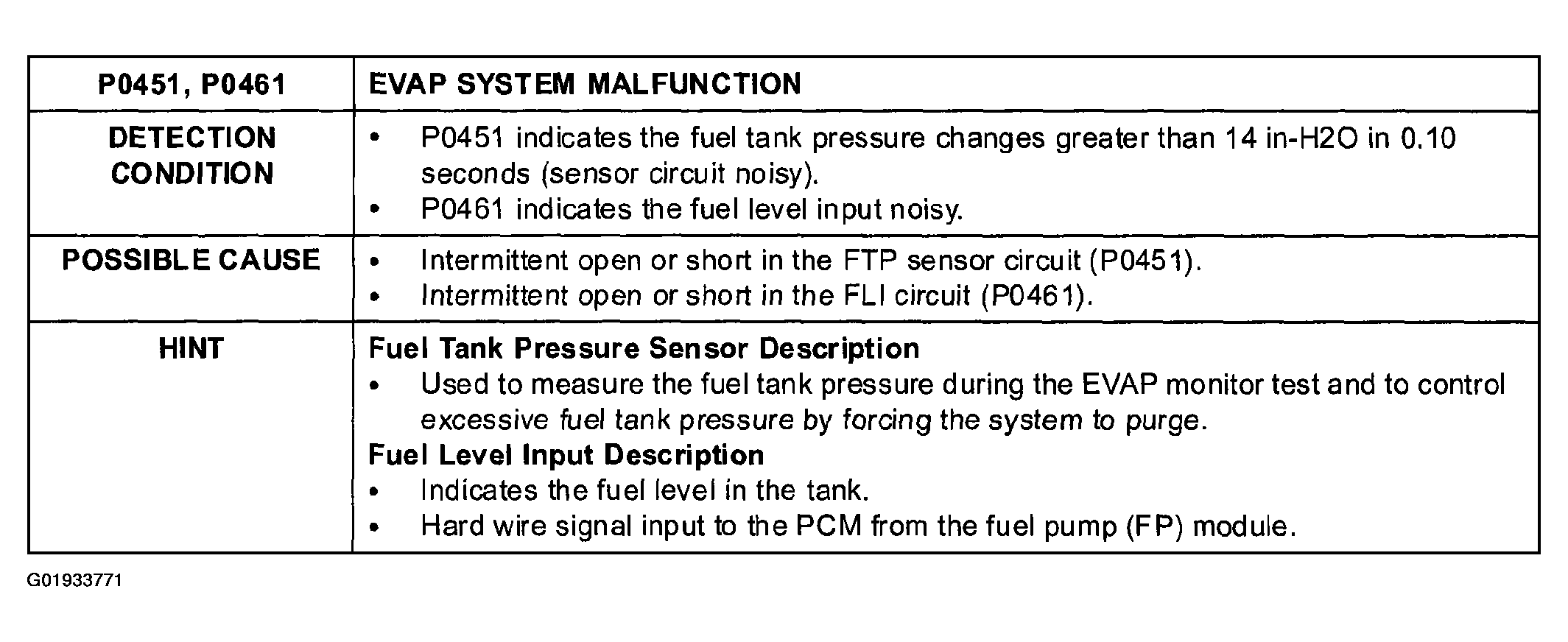

Fig 1: EVAP System Malfunction Detection Condition
Courtesy of MAZDA MOTORS CORP.

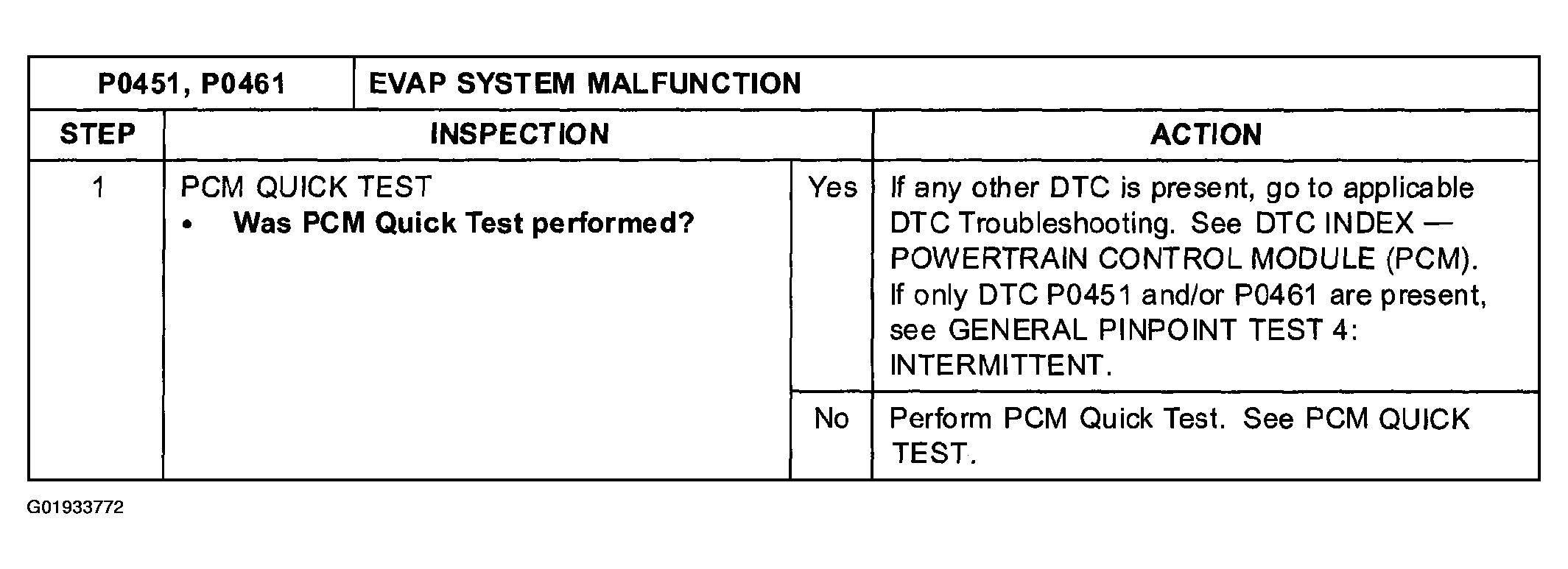

Fig 2: Diagnostic Procedure (DTC P0461) (Step 1)
Courtesy of MAZDA MOTORS CORP.
