Exterior Lighting Systems

Fig 1: Pinpoint Test 22 - Exterior Lighting Systems Description

Courtesy of MAZDA MOTORS CORP.

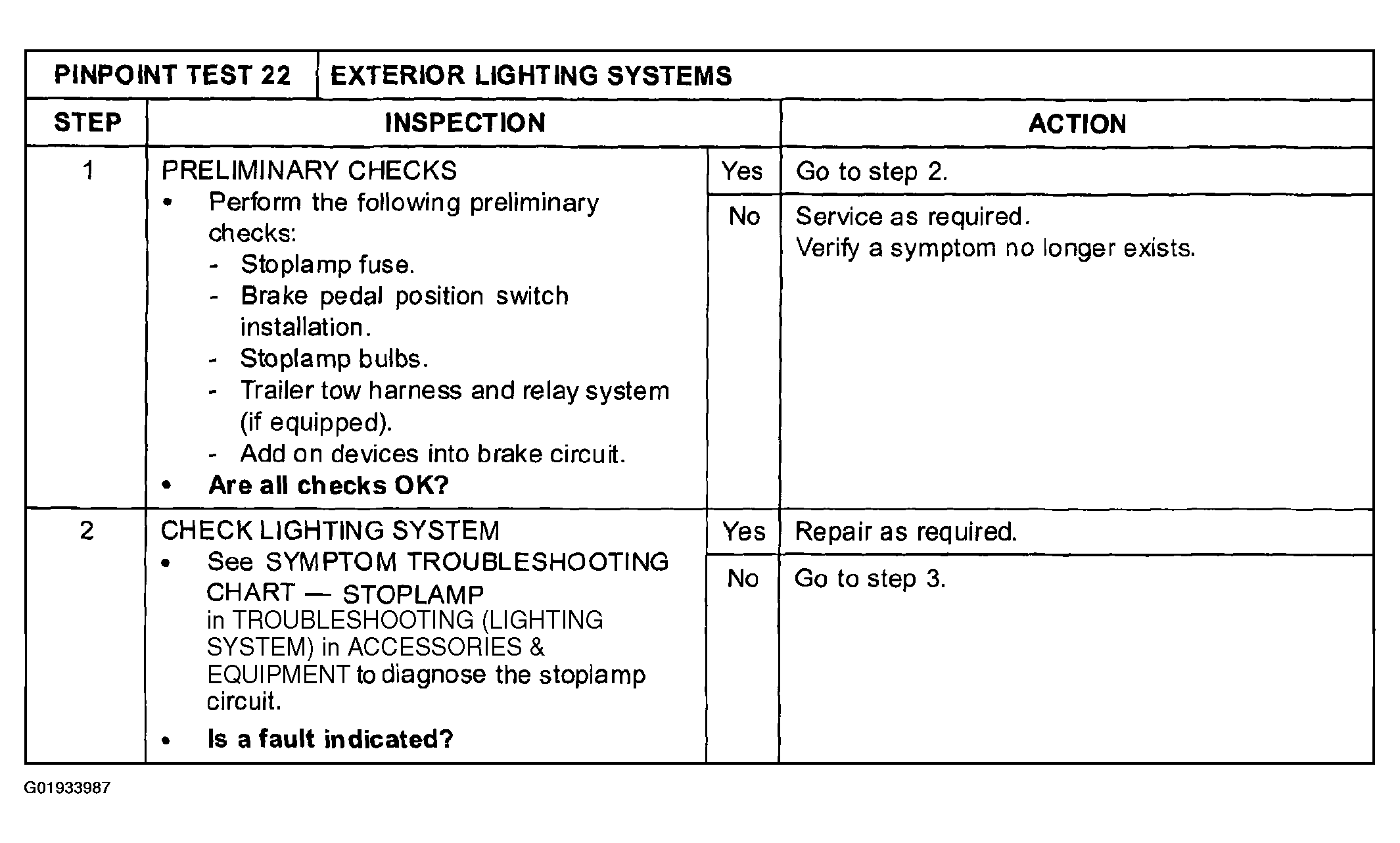

Fig 2: Pinpoint Test 22 - Exterior Lighting Systems (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

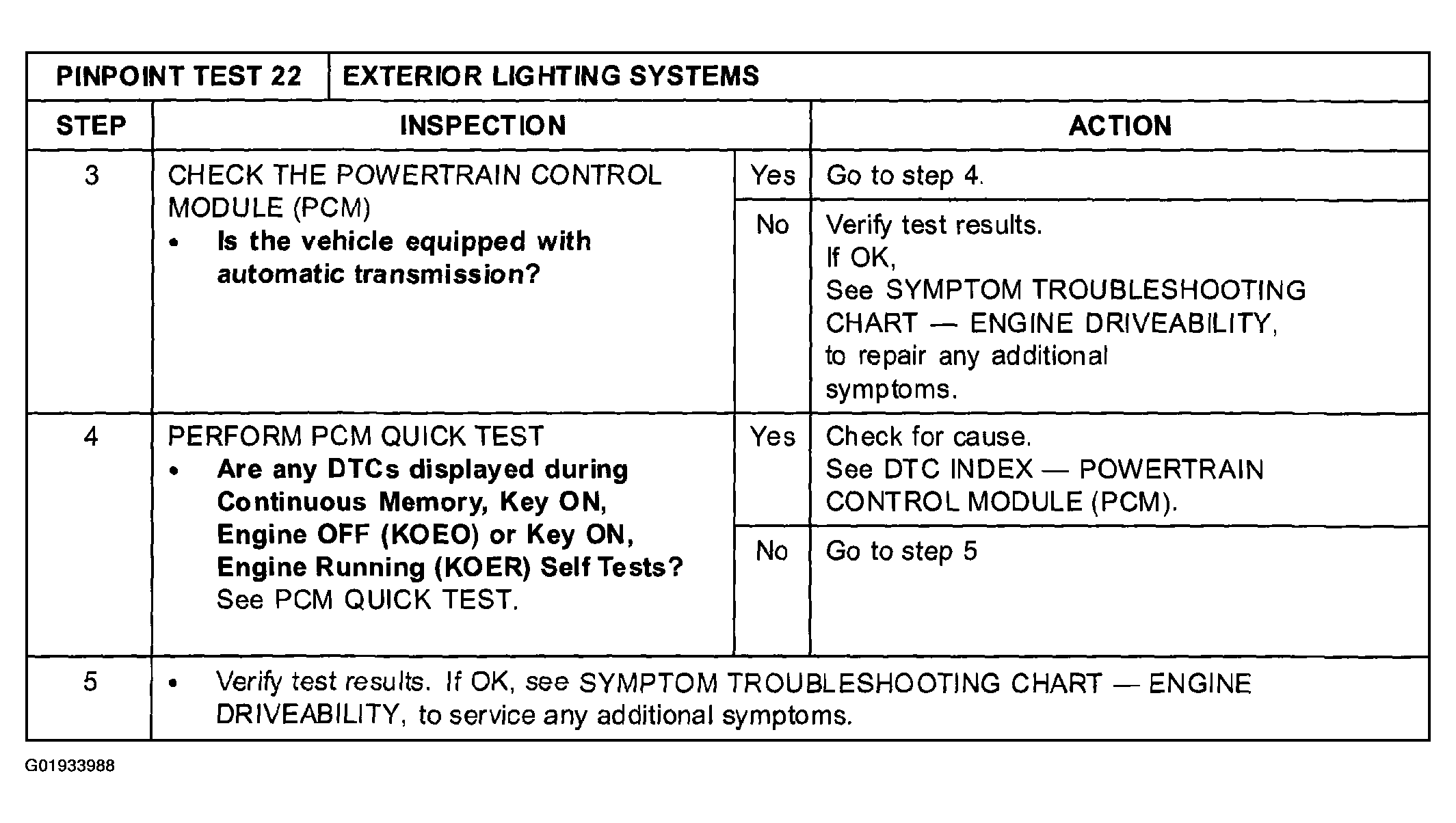

Fig 3: Pinpoint Test 22 - Exterior Lighting Systems (Steps 3-5)

Courtesy of MAZDA MOTORS CORP.
