How To Use This Service Information: Symbols

There are eight symbols indicating oil, grease, fluids, sealant and SST use. These symbols show application points or use of these materials during service.

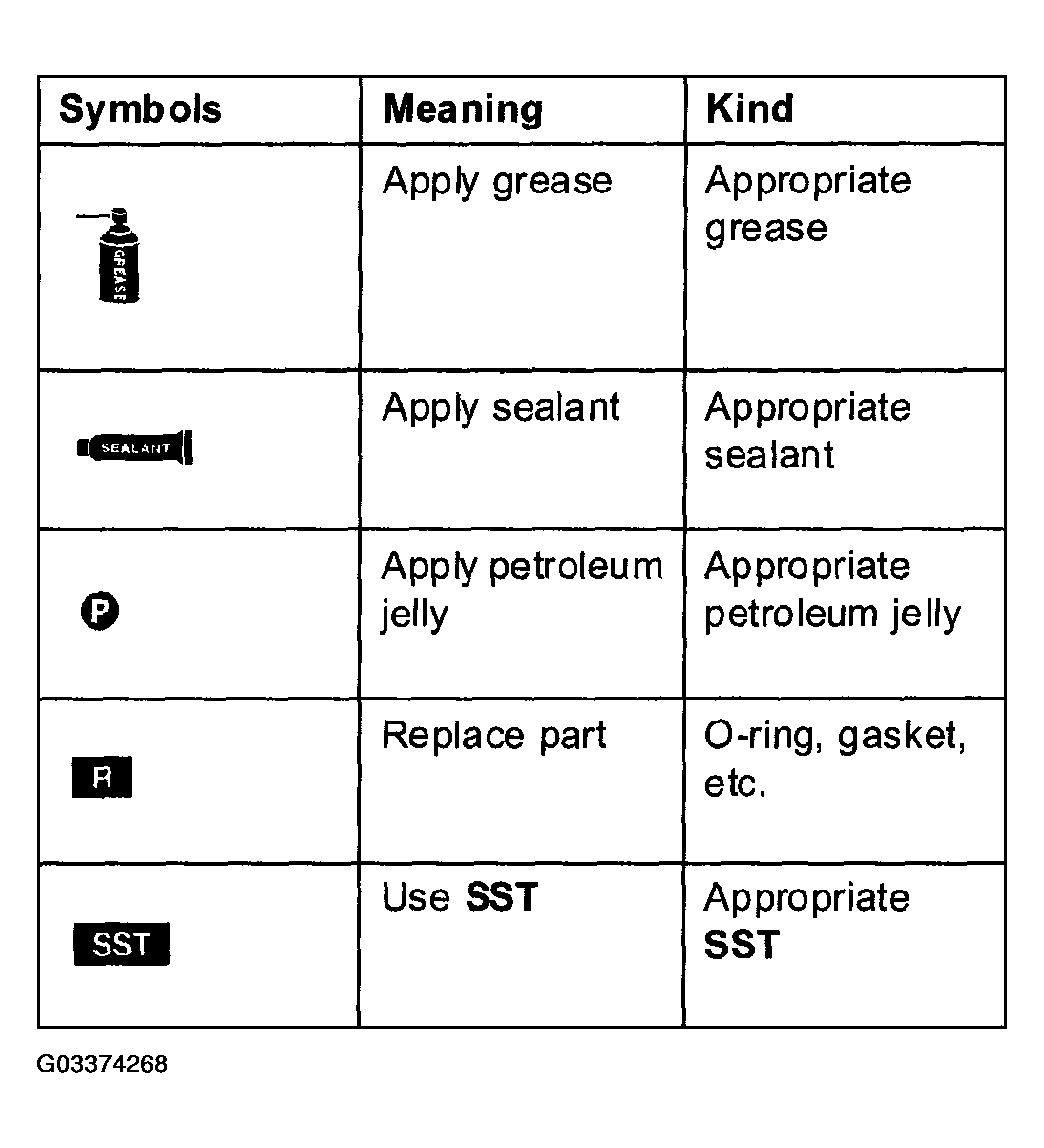

Fig 1: Symbols Chart (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

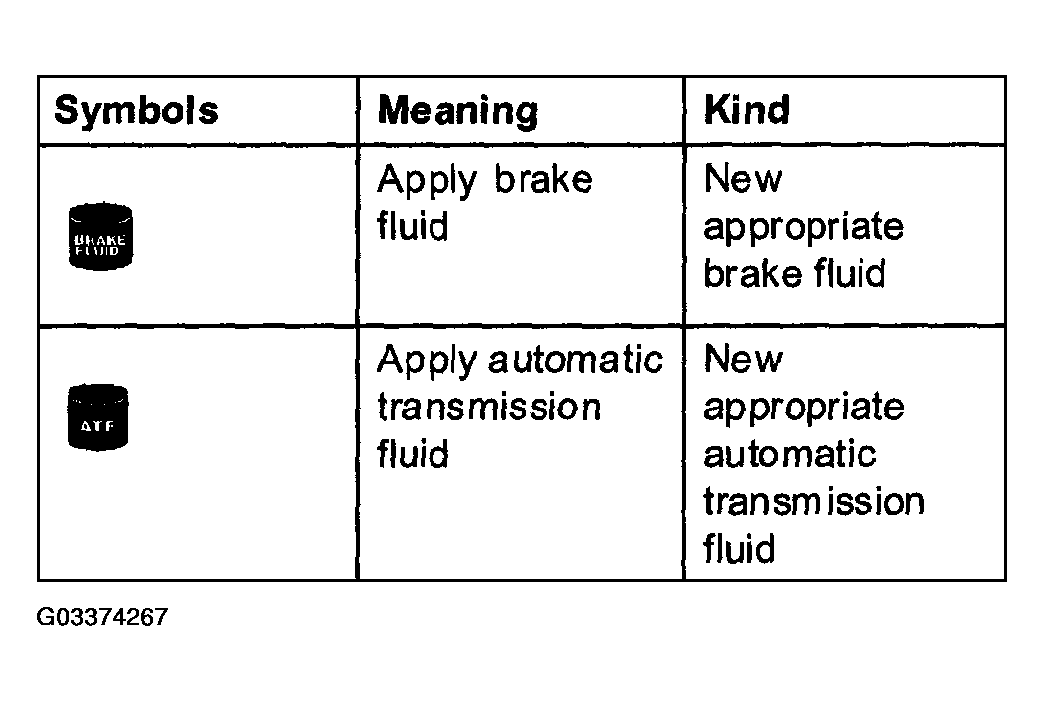

Fig 2: Symbols Chart (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

Fig 3: Symbols Chart (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
