Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

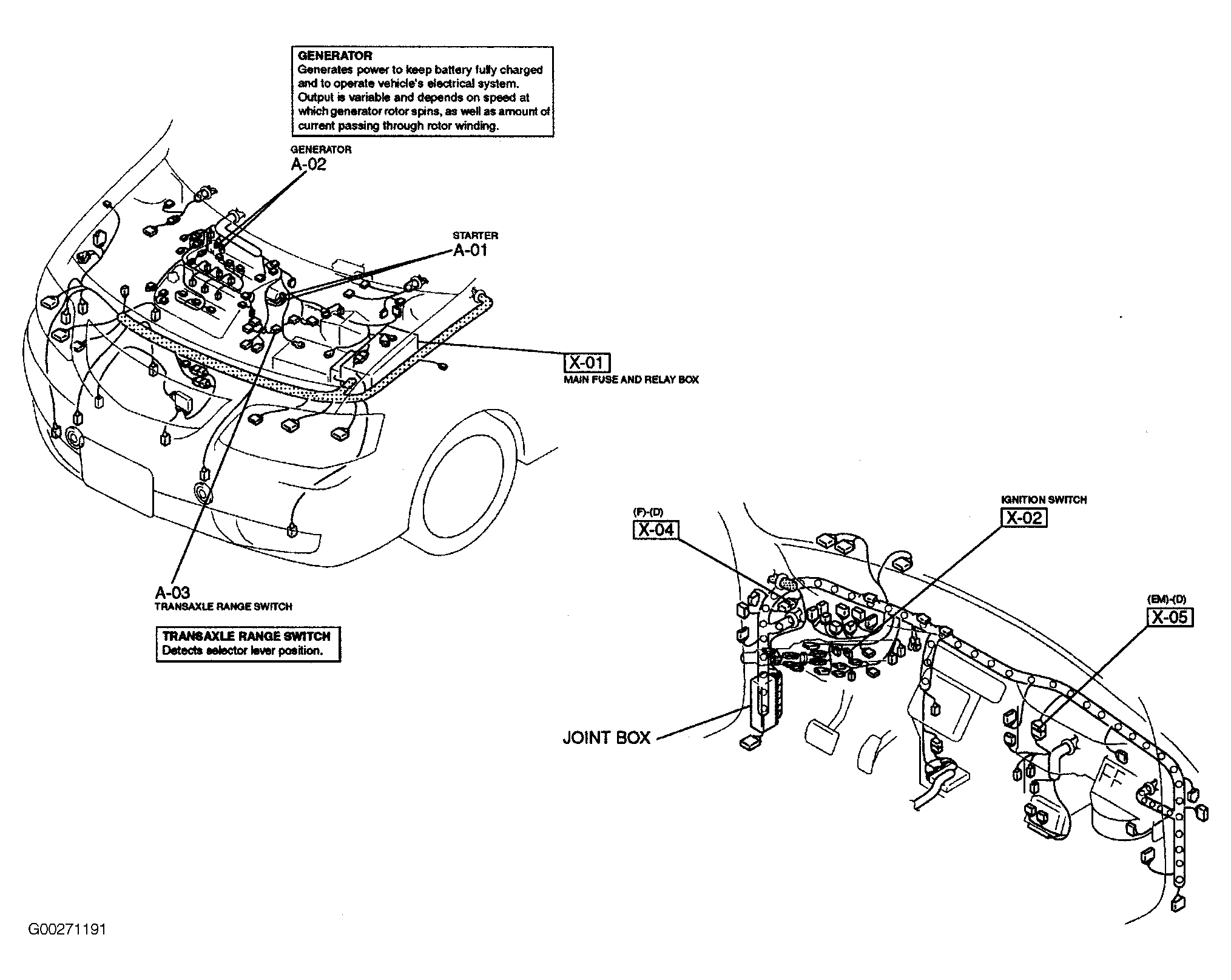

Joint Box At left kick panel. See Figure .

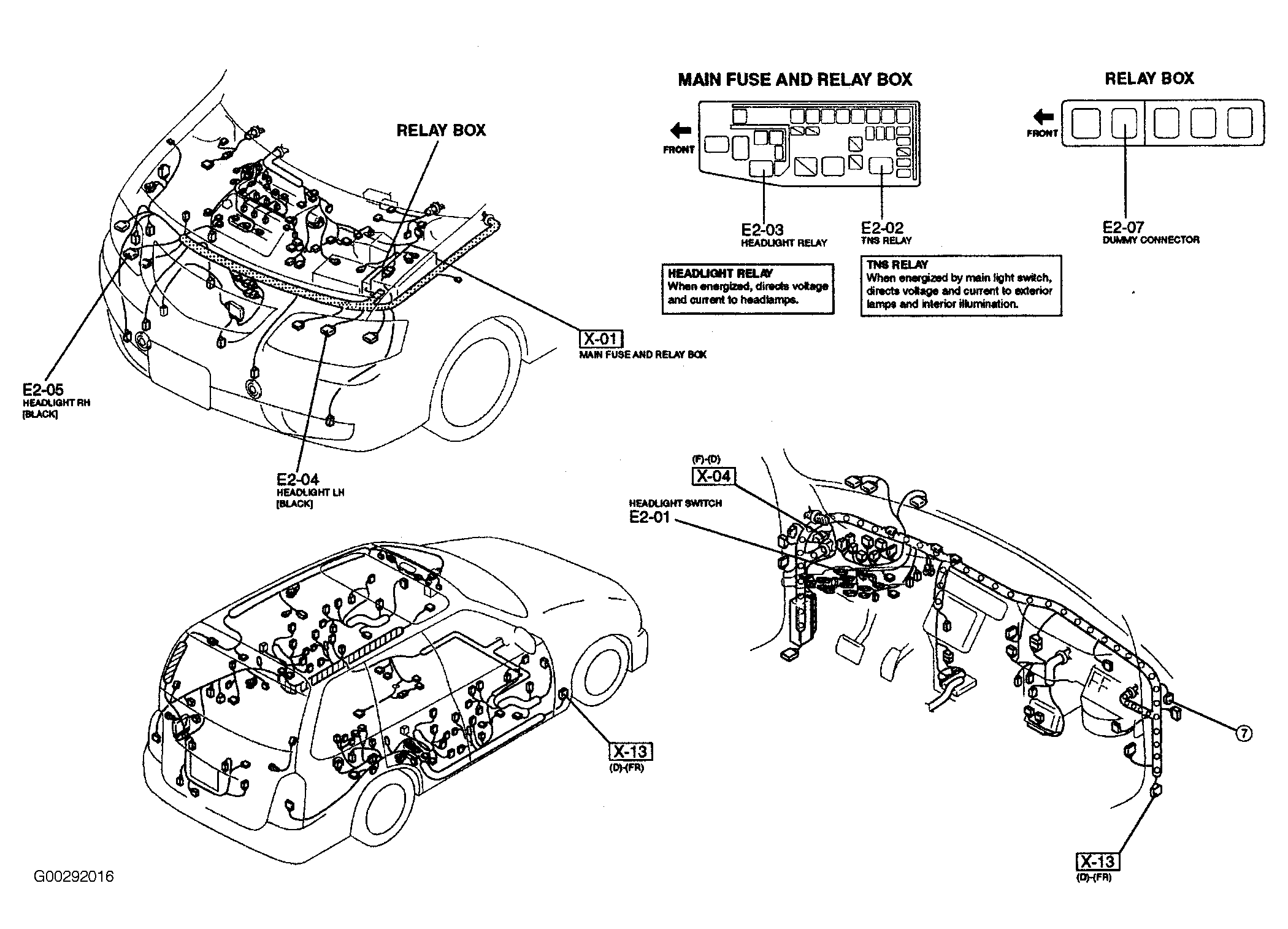

Main Fuse & Relay Box At left side of engine compartment. See Figure .
Relay Box At left front corner of engine compartment. See Figure .
