Fuel Control System

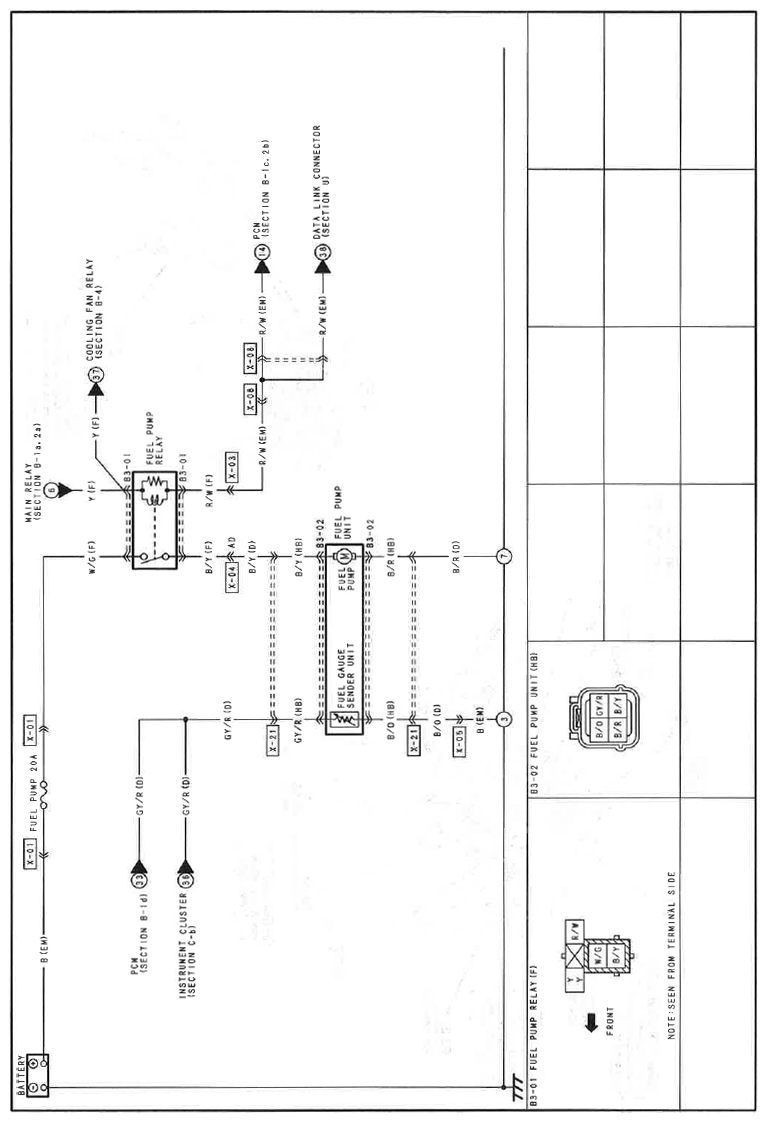

Fig 1: Fuel Control System Wiring Diagram (B-3; 1 Of 2)
G11559880Courtesy of MAZDA MOTORS CORP.

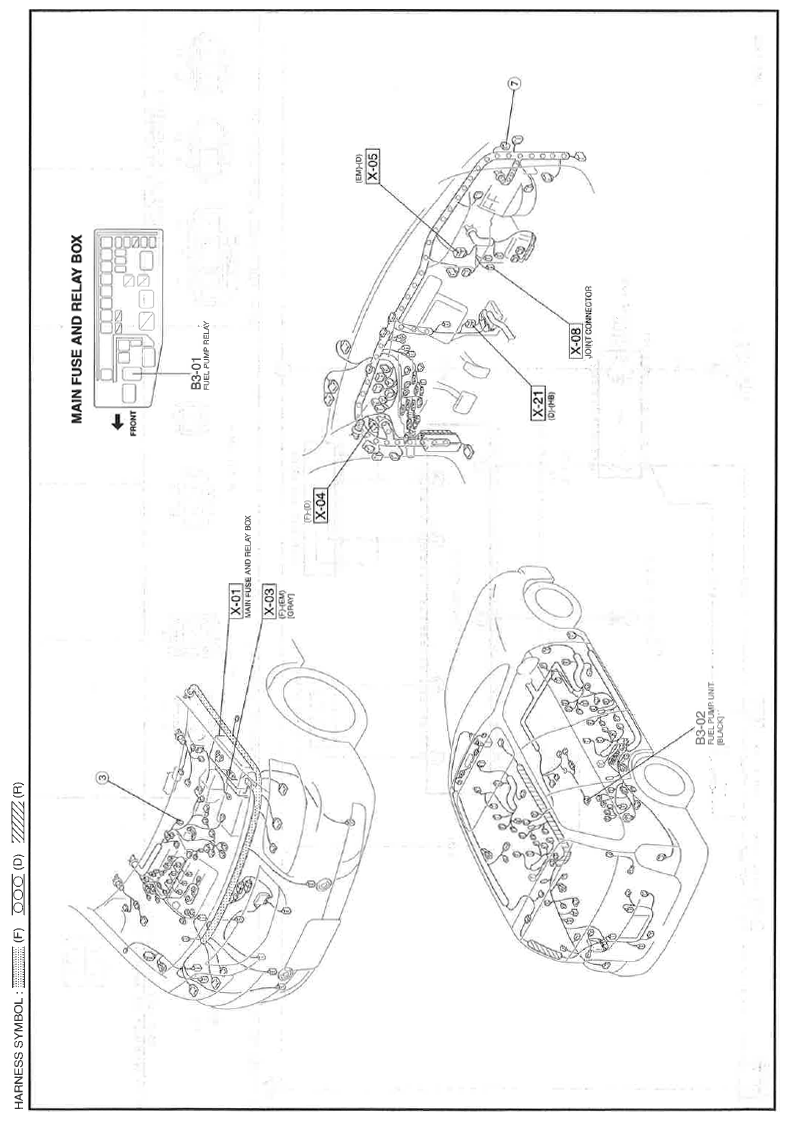

Fig 2: Fuel Control System Wiring Diagram (B-3; 2 Of 2)
G11559881Courtesy of MAZDA MOTORS CORP.
