DTC 07: Brake Switch, Brake Switch 2: Notes

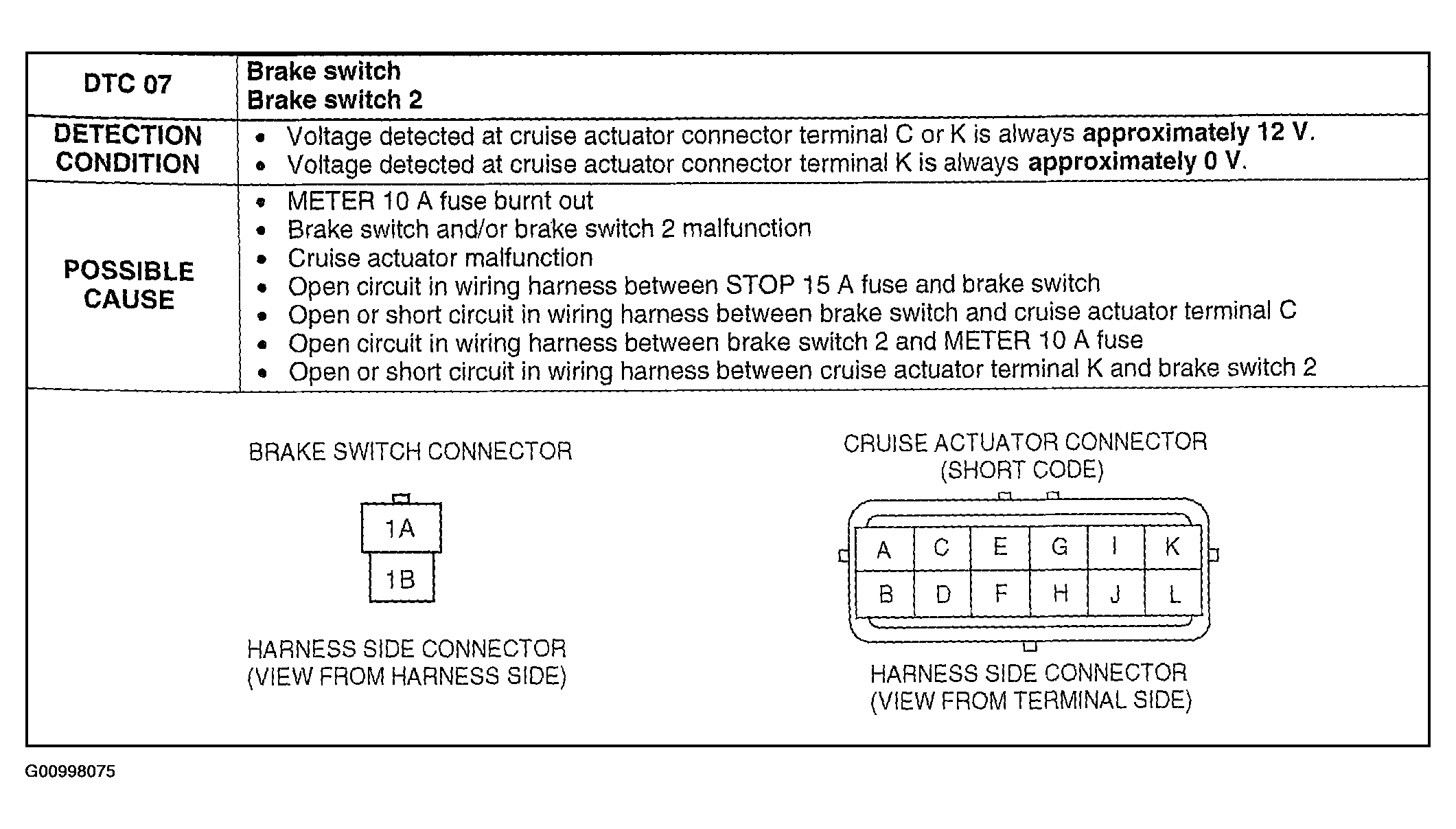

Fig 1: DTC 07 Detection Condition & Possible Cause
G00998075Courtesy of MAZDA MOTORS CORP.
