Manual Outside Mirror Removal/Installation
- Remove the inner garnish.

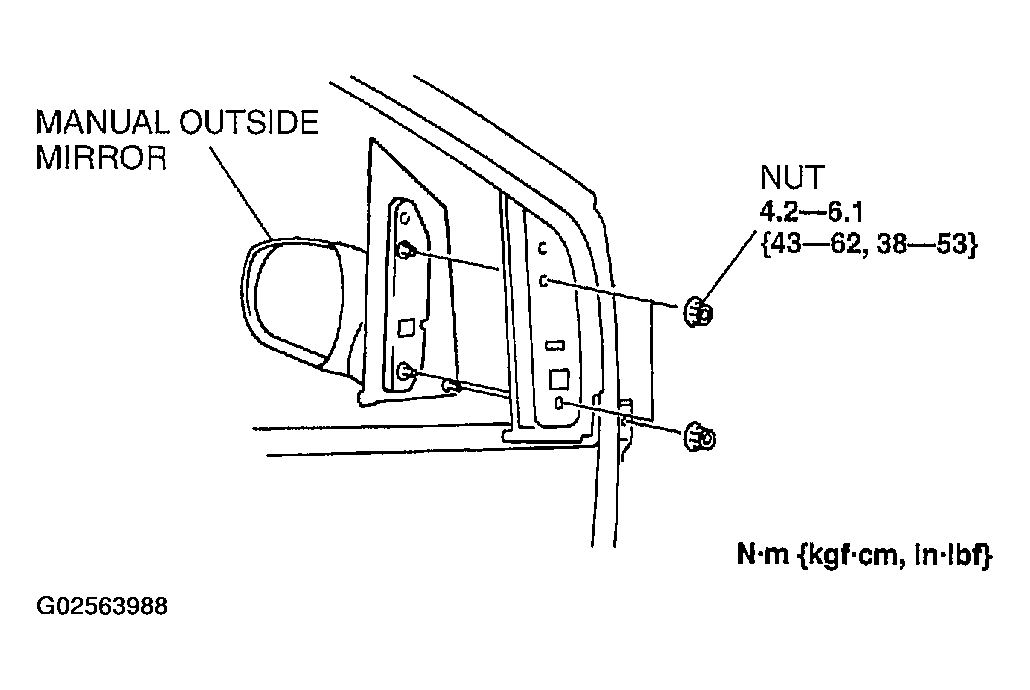

- Remove the nuts, and then remove the manual outside mirror.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
