Symptom Troubleshooting [Brake System)
>>
Symptom Troubleshooting
>>
With TCS
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
With TCS

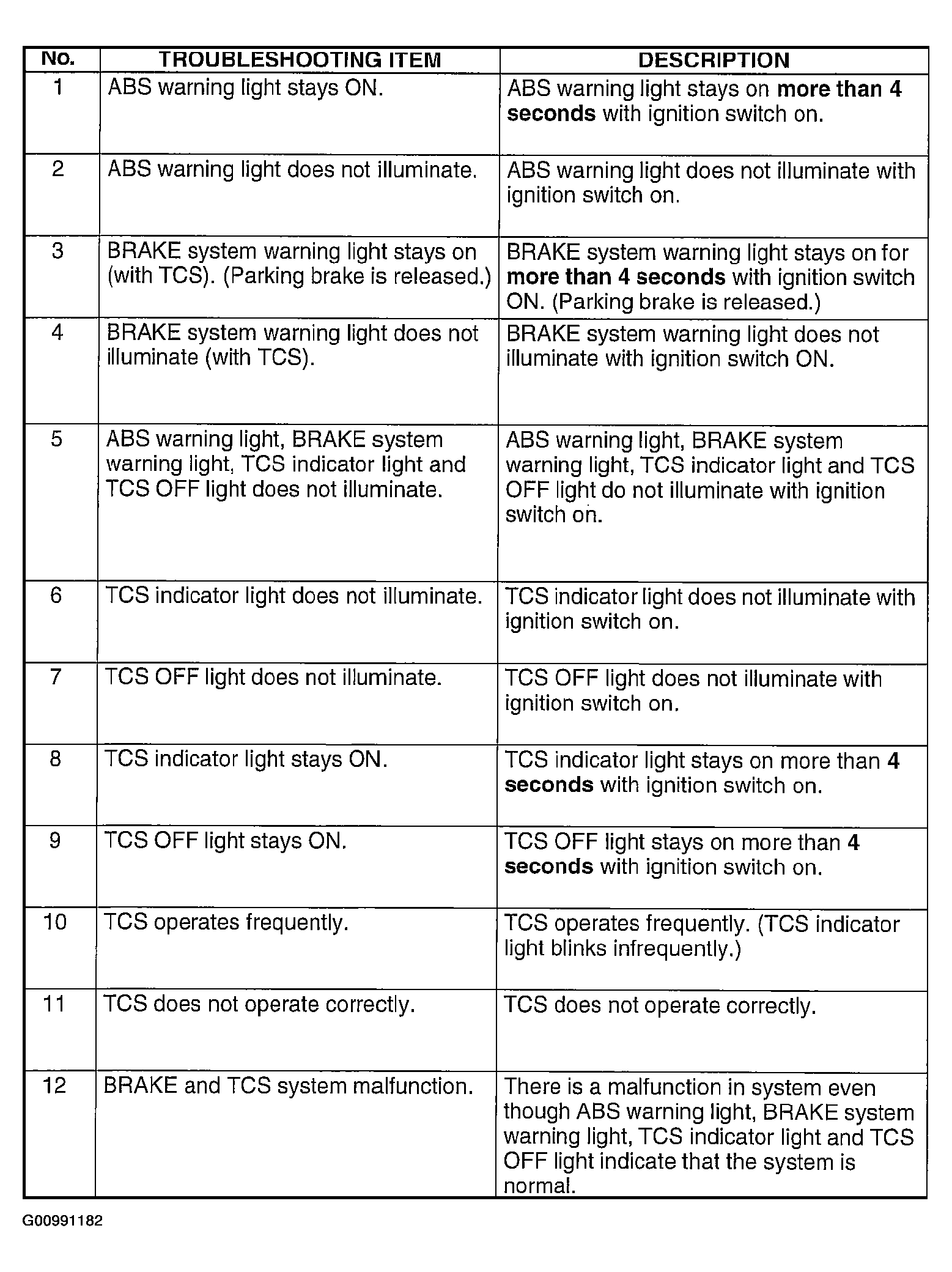

Fig 1: Symptom Troubleshooting - With TCS
Courtesy of MAZDA MOTORS CORP.

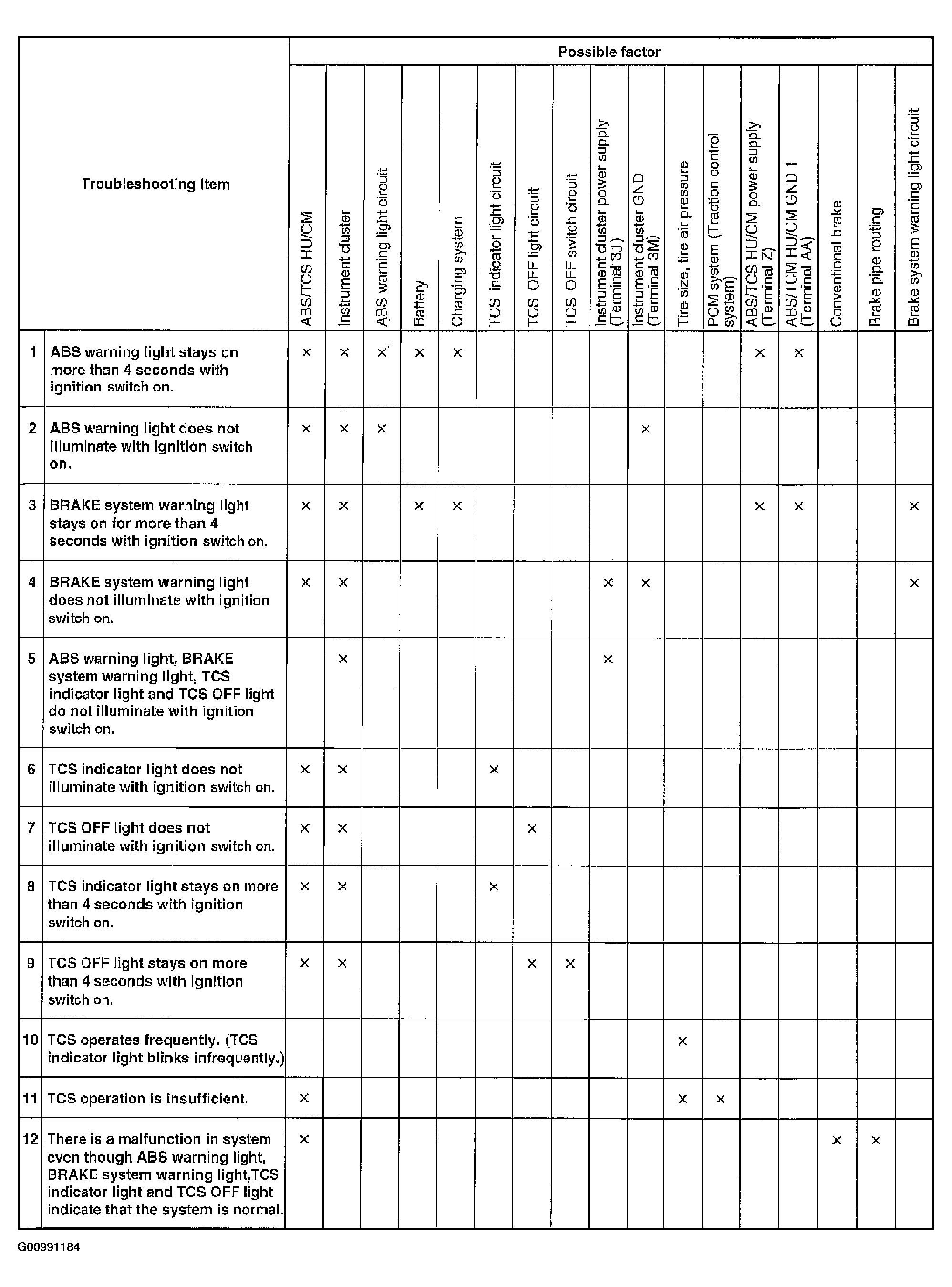

Fig 2: Troubleshooting & Possible Factors - With TCS
Courtesy of MAZDA MOTORS CORP.
