Instrument Cluster Removal/Installation: Notes
- Disconnect the negative battery cable.
- Pull down the adjusting lever of the tilt steering wheel and push the steering wheel down.
- Remove the meter hood.
- Pull down the selector lever to the D range position,

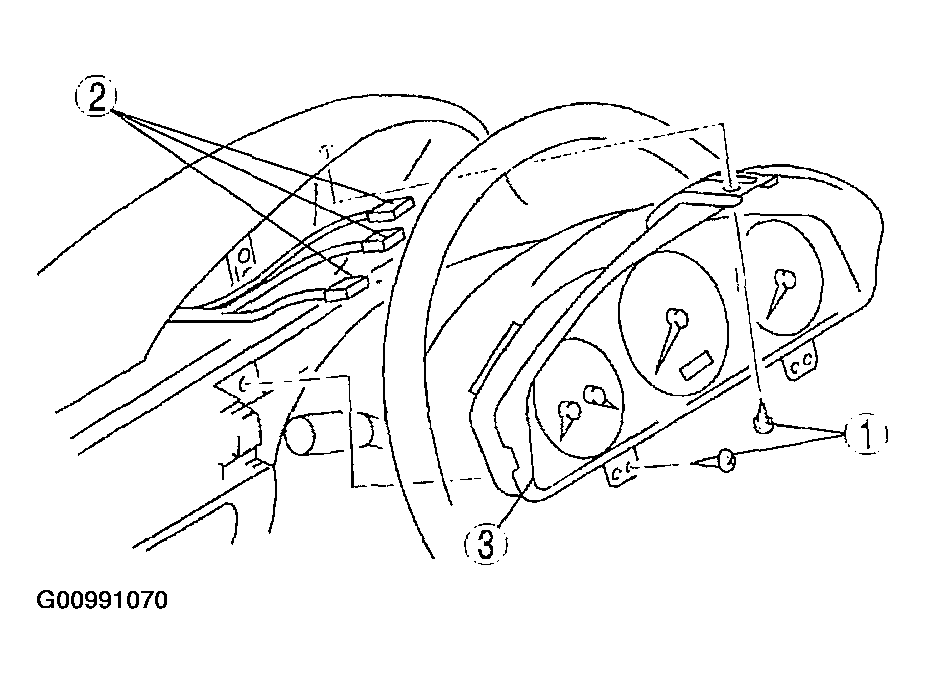

- Remove in the order indicated in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
