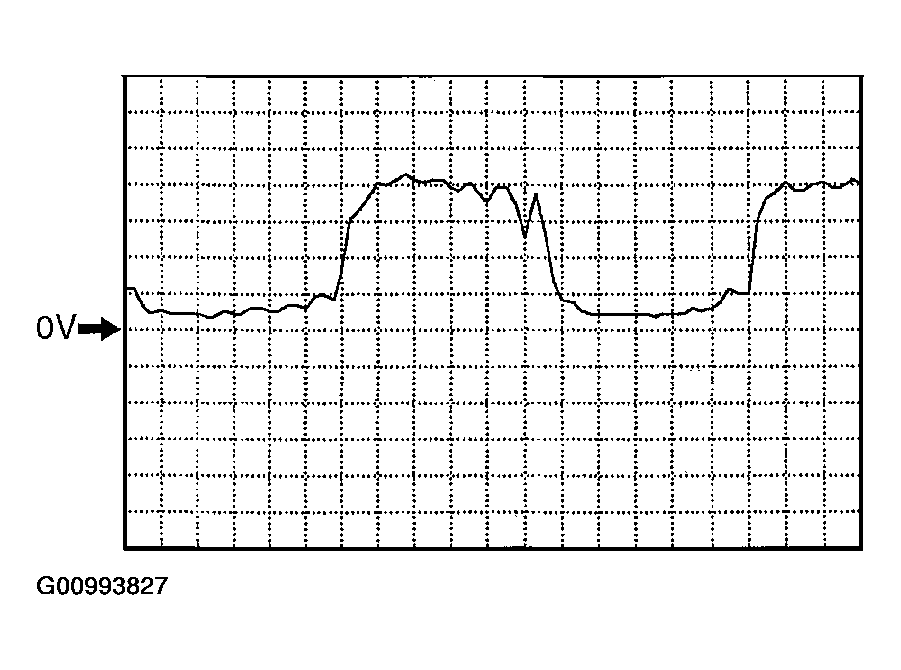

HO2S signal (front, RH/LH)
Courtesy of MAZDA MOTORS CORP.
- PCM terminal: 60, 87(+)-91(-)
- Oscilloscope setting: 0.2V/DIV (Y), 200ms/DIV (X), DC range
- Vehicle condition: idle after warm up
