DTC P0507: Idle Control System Rpm Higher Than Expected
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

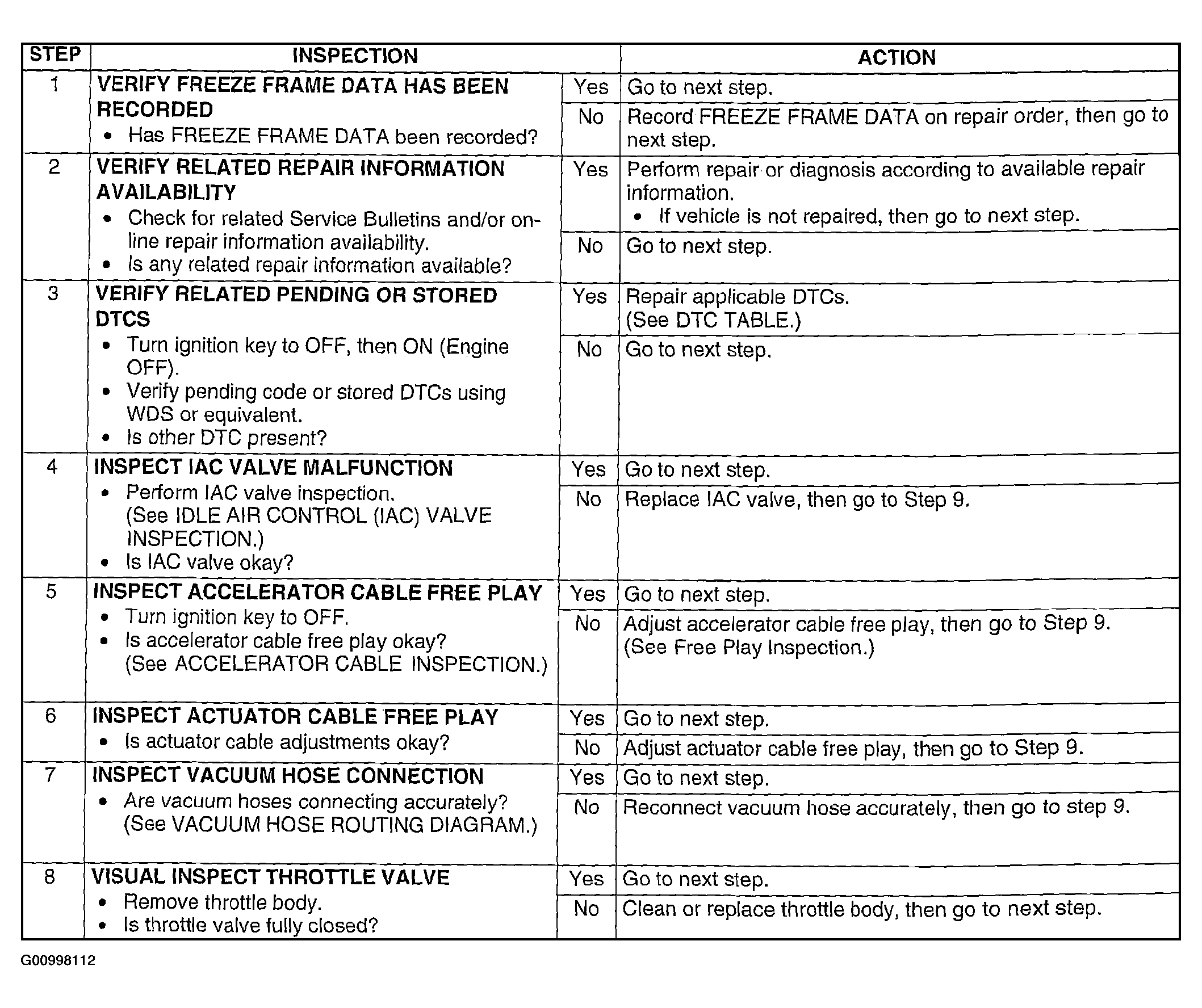

Fig 1: DTC P0507 Diagnostic Procedure Chart (Step 1-8)
Courtesy of MAZDA MOTORS CORP.

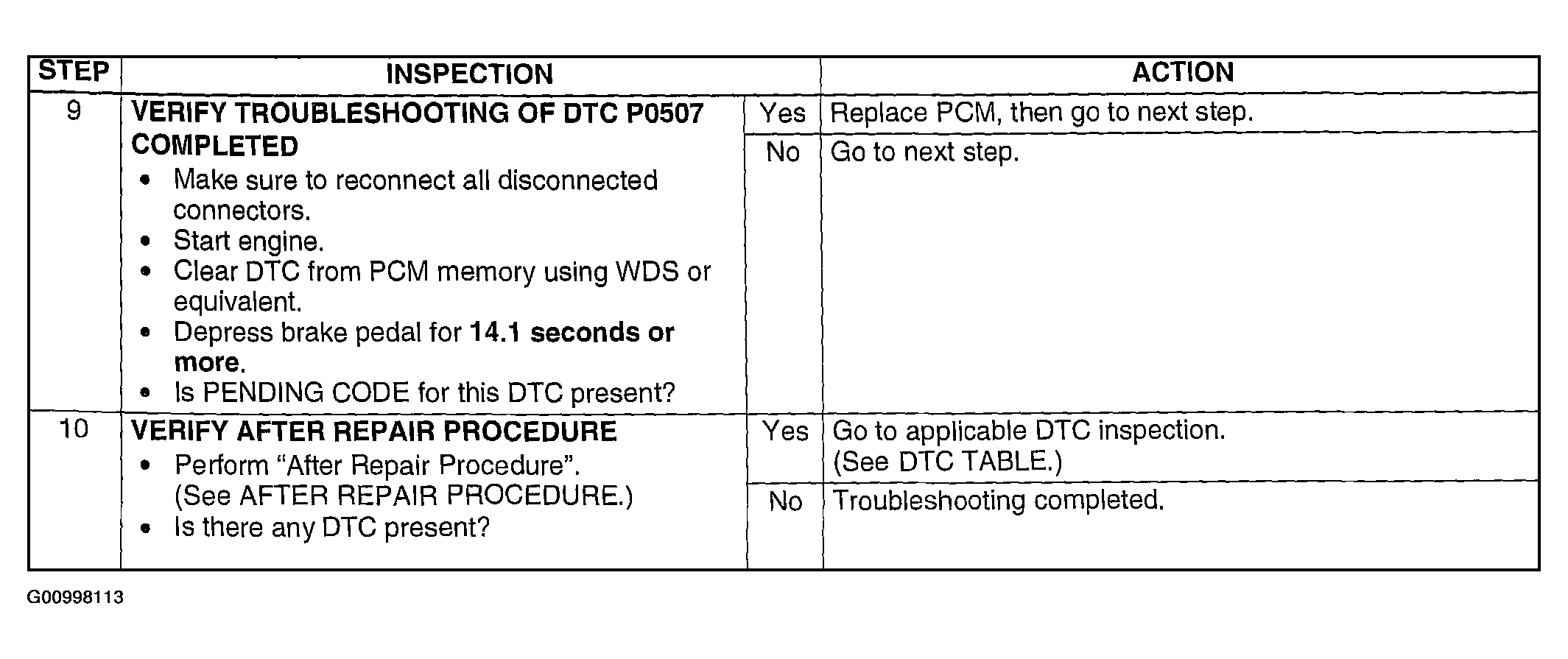

Fig 2: DTC P0507 Diagnostic Procedure Chart (Step 9-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
